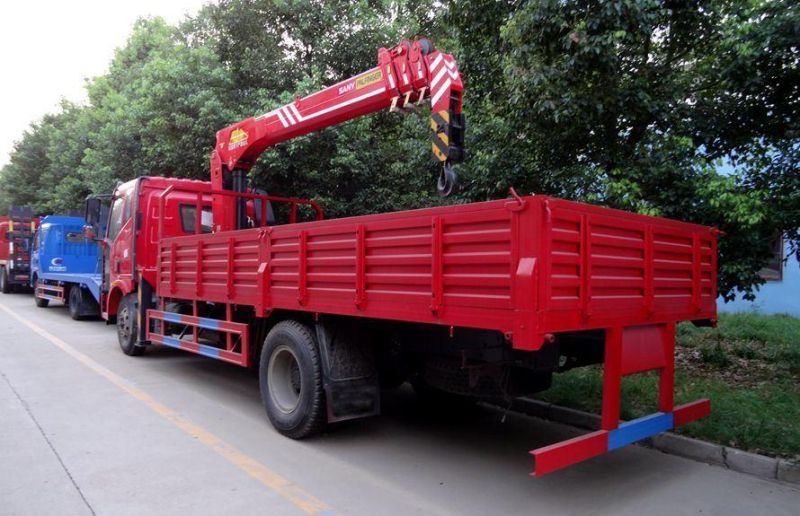

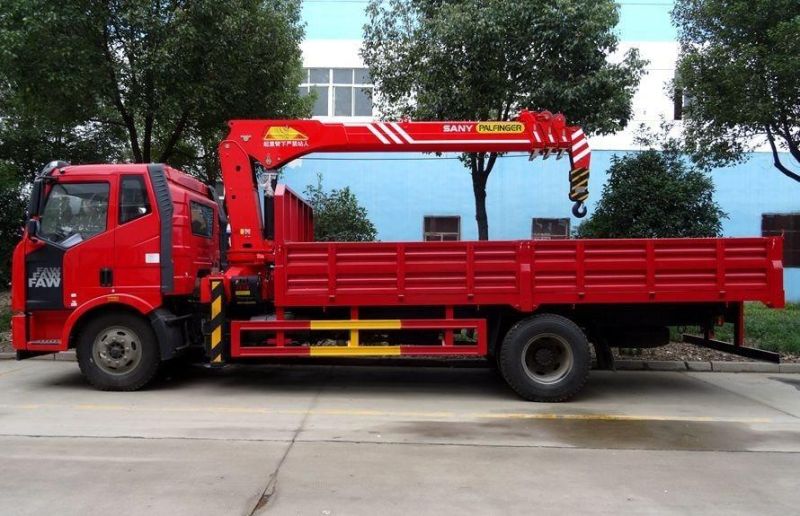

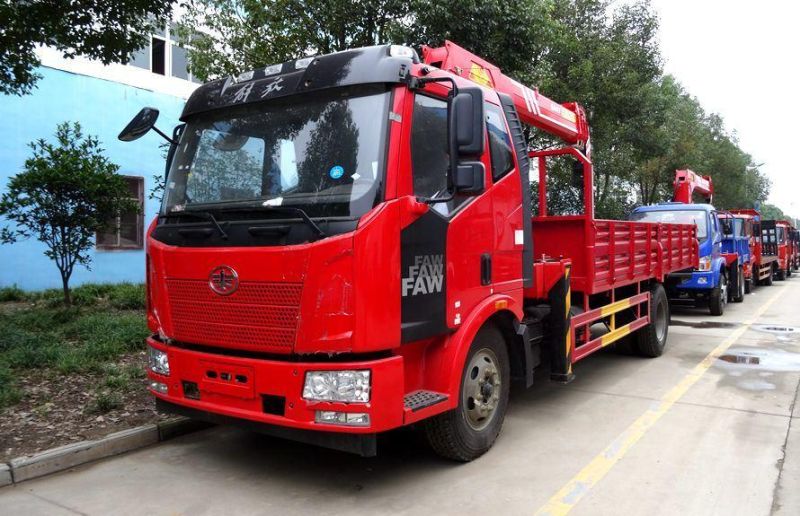

• Model NO.：CLW5245XW
• Type：Straight Arm

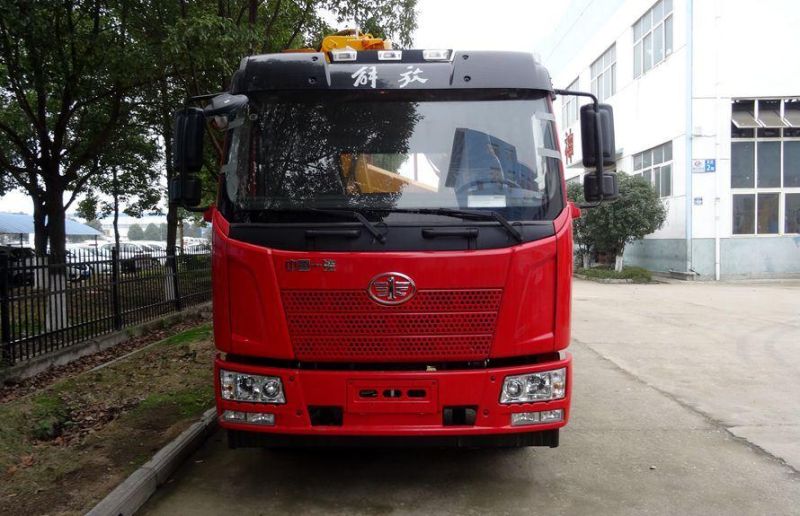

• Chassis：FAW
• Gearbox：6 Forward & 1 Reverse Gear
• Working Radius：14 M
• Rotation Angle：360 Degree All Rotation
• Logo：as Per Customer′s Request
• Engine：180 HP
• Warranty：1 Year
• Crane Weight：3820kg
• Max Lifting Height：16.1m
• Installation Space：2280-5600mm
• Crane：8ton
• Max. Lifting Capacity：8000 Kg
• Transport Package：Naked, Waxed, Bulk Ship, RO-RO
• Specification：9000x2495x3550 mm
• Trademark：CLW
• Origin：Suizhou, China
• HS Code：8705909090
• Production Capacity：500 Unit,Month

Chassis SpecificationItem No.ParametersChassis BrandFAWOverall Dimension9000X2495X3550mmGross Vehicle Weight15600  kgCurb Weight9660  kgLoading Weight5805  KgFront/rear  axle loading capacity5000/10000kgWheel Base5000 mmCabinSingle, Left Hand Driving, 2 Passenger AllowedEngineTypeDiesel Engine Engine horsepower180 HP EURO IIGearboxManual ,  6 Forward & 1 Reverse GearBrake SystemAir BrakeSteering GearPower AssistantTire9.00-20, 6 Pieces with 1 SpareMax Driving Speed90 km/hCargo compartmentMaterialQ235Dimension5465X2300X600mmThickness3mm for side /4 mm for the bottomTechnical parameter of craneCrane  Model8 Ton 4 Arms Telescopic Boom CraneCrane Weight3820 kgMax. Lifting capacity8000 kgMax lifting height16.1MWorking radius14 MInstallation space2280-5600mmRotation angle360°All rotationOptional1. Seat
2. Hydraulic Lift system
3. Landing LegRemarks1. Color is optional
2.Customized LOGO painting as per customer request
