• Model NO.：QDY
• Main Girder Form：Single Girder
• Type：Ordinary
• Product Name：Workshop Overhead Crane
• Power Source：220V,380V,415 on Request
• Color：Industrial Yellow ,Red or on Request
• Girder Type：Box Type
• Insulation：F
• Application：Steel Mills, Warehouse,Hydropower Station,Producti
• Motor：Gear Motor
• Aftersale Service：Engineer Overseas Service Available
• Electric Parts：Siemens Delixi
• Lifting Spped：8m,5m Per Minute
• Hoist Type：Rope Hoist
• Cross Speed：0~20m ,Min
• Work Duty：A3 A5 A6 A7 or on Request
• Lift Capacity：on Customer′s Request
• Transport Package：Standard Export Package
• Specification：Material: Q235B,Q345B
• Trademark：Mingdao
• Origin：China
• HS Code：8426112000
• Production Capacity：1000sets, Year

Basic Info.

Model NO. QDY Main Girder Form Single Girder Type Ordinary Product Name Workshop Overhead Crane Power Source 220V/380V/415 on Request Color Industrial Yellow /Red or on Request Girder Type Box Type Insulation F Application Steel Mills, Warehouse,Hydropower Station,Producti Motor Gear Motor Aftersale Service Engineer Overseas Service Available Electric Parts Siemens Delixi Lifting Spped 8m/5m Per Minute Hoist Type Rope Hoist Cross Speed 0~20m /Min Work Duty A3 A5 A6 A7 or on Request Lift Capacity on Customer′s Request Transport Package Standard Export Package Specification Material: Q235B/Q345B Trademark Mingdao Origin China HS Code 8426112000 Production Capacity 1000sets/ Year

Product Description

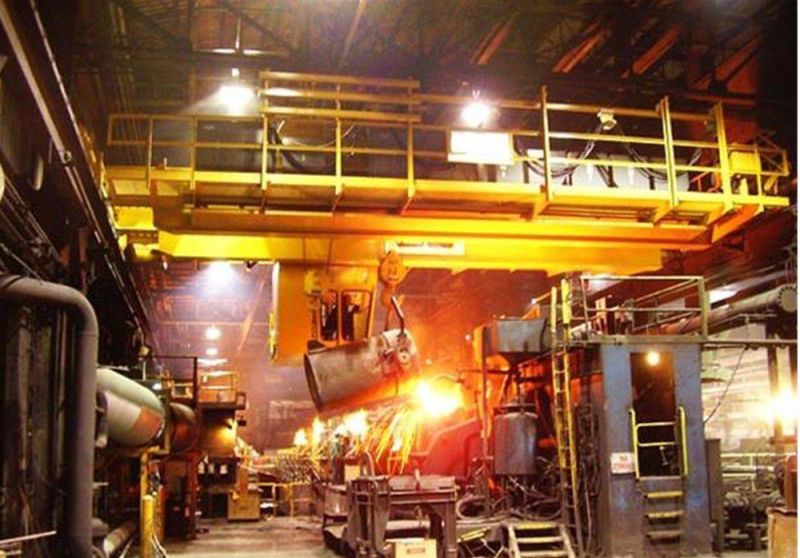

          20Ton 25 Ton 40 ton Double Girder Overhead Crane Metallurgy Fountry Casting Crane



Double girder electric overhead crane has the advantages of compact shape dimension, low building headroom height, light weight,small wheel pressure and so on. It uses together with CD1 or MD1 electric hoist. It is suitable for transporting, assembling ,repairing and load; unload works in mechanical processing workshop,metallurgy auxiliary workshop, storage, yards, power station and so on. It can replace normal double-beam bridge crane and being used in workshop of textile industry and food industry. The work type can be divided into two kinds- light class and intermediate class.




Advantages of a Double Girder Design
1.Greater hook height - how far above the floor the hoist will lift (typically 18-36" more than single girder)

2.No limits to maximum span or capacity

3.Ideal for production and transportation of heavy equipment

4.Ideal for frequent lifting of heavy loads

5.Added features like walkways and maintenance platforms, cabs, magnetic reels, and lights can be added and supported by a double girder design
Can be used in indoor and outdoor applications, including mining, iron and steel, railyards, and ports

Safe Devices:
1.Overload Limit Switch

2. Rubber Buffers 3.Electric Protective Devices

4.Emergency Stop System

5.Voltage Lower Protection Function

6. Current Overload Protection System

7. Rail Anchoring 8.Lifting Height Limit Device

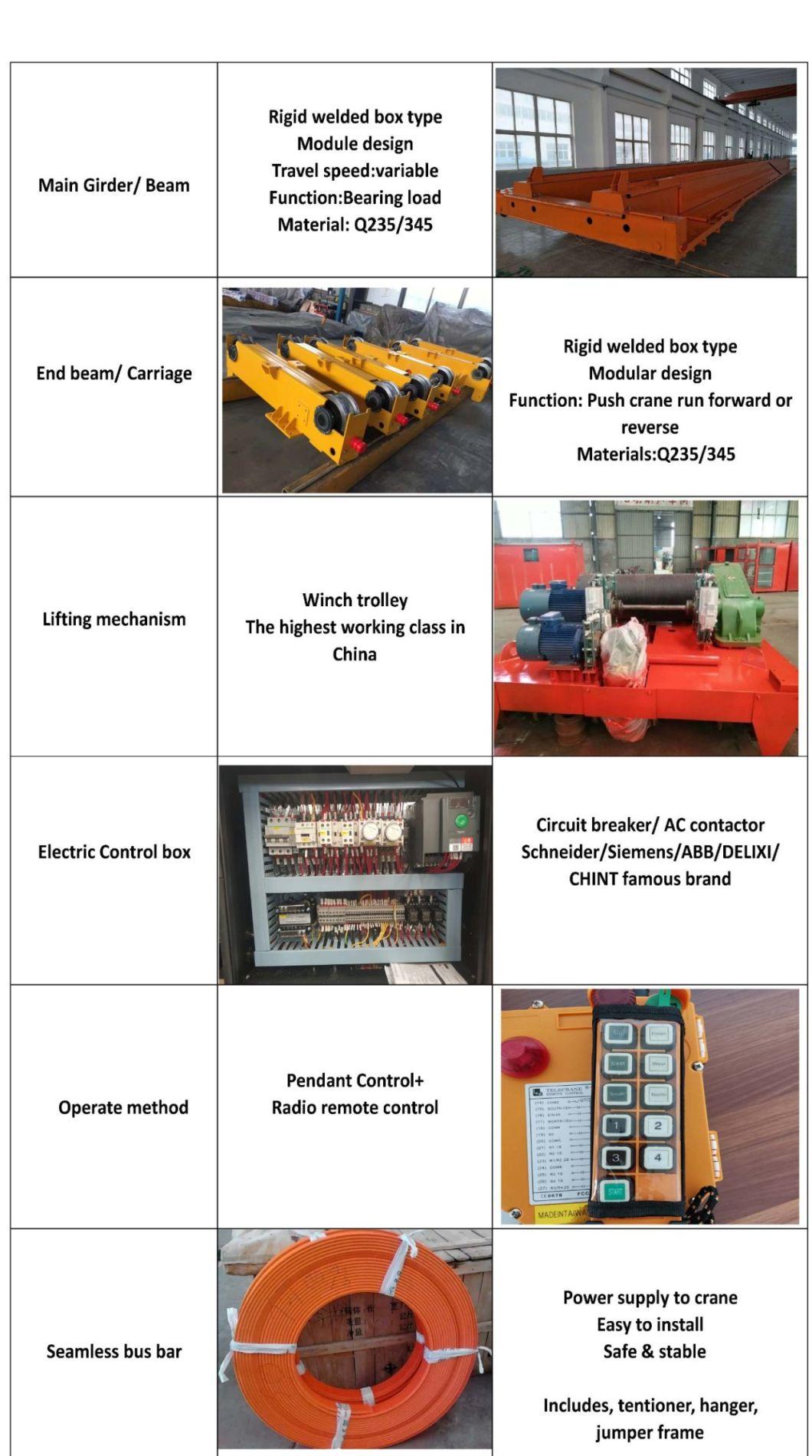

Technical support
Package & Delivery



FAQ
Q1. Can the cranes be customized?
Yes,every customer's working condition is different, all of our products can be customized depend on customers' requirements.
Please give us the information as clear as you can, so we can give our best design to suit for your demands.

Q2. How many operation methods for my selections?
We provide pendent controller with push button control type, remote control type or cabin control type.Please tell us what kind of
operation way you need.

Q3. I have low headroom in my workshop, is it possible to install a crane in it?
We have special products for low headroom workshop, our engineer can give the best design according to your dimensions.

Q4. Do you supply lift tools?
Yes, we can provide any kind of lifting tools such as hook, electromagnetic, grab bucket etc...

Q5: In order to offer the most suitable design solution for you, it will be great helpful if you can offer us the following
information to us:

1. Lifting capacity.

2. Span length.(rail center to rail center)

3. Lifting height.(hook center to ground)

4. Have you installed the rails? Do you need us to supply the rails? How long is it? 5. Power supply: Voltage.

5. Working condition: what kind of material to lift? temperature?

6. It would be much better if it is possible for you to offer the drawing photo of your workshop.

CUSTOMER FEEDBACK

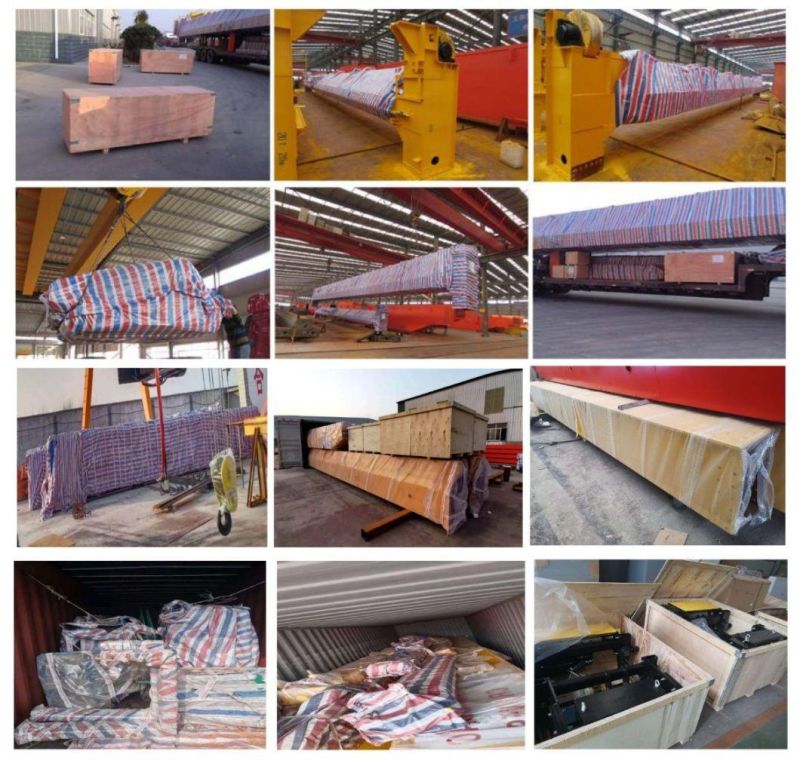

Shipping way of Mingdao Cranes:

♦ Electric parts are packed by high quality plywood crate, to reduce distortion in conveying.

♦ Main beams, end beams and trolly/winch are packed by plastic woven cloth. It can reduce

   abrasion during the transportation.

♦ If the size are suitable for container ship, usually by container.

♦ Big size, usually by bulk ship or by container after truncation.

♦ Transport ways are based on reducing cost & keep safety.

Company Introduction:

We are a member of China Lifting Industry Association, safety-recognized enterprise, national crane machinery designated production organizations, we have obtained mechanical engineering "design certificate", and the national issued crane "manufacturing permit",installation and maintenance, renovation and maintenance of the "License" and so on.

In the past 10 years, we are aiming at China domestic market and become a leading manufacturer in China. Also, with the help of China trading companies  we have exported our products to many countries such as Vietnam, Philippines, Sri Lanka, Bangladesh, France, Dubai, Kazakhstan, Russia, Tanzania ,Peru , Newzealand,etc countries .  We got 99% good feedback from the overseas customers.

Now we are not only aiming at China domestic market growth ,but also to expand the international market with our quality and price advantages.  Send us an inquiry now.

The company has six functional departments, including R&D department, sales department, materials supply department, production department, QC department,after-sales department. There are 16 workshops including electrical, riveting, forging, assembly, heat treatment, machining and maintenance.

Our company produces various lifting equipment and loading and unloading. The equipment is 30,000 tons and the sales income is 360 million yuan. 18 offices and 76 sales and service agencies in power plants, industrial and mining enterprises, and port terminals.

Integrity, quality, customer satisfaction is the pursuit of Mingdao heavy workers!

Customer visiting factory,
