10 Ton Knuckle Boom Truck-Mounted Crane Spk23500 with Good Price for Sale
Sinomada Heavy Industry (Changsha) Co., Ltd.- Certification：GS, RoHS, CE, ISO9001
- Condition：New
- Maximum Lifting Height：10-15m
- Maximum Lifting Weight：8-10t
- Shaft Number：2
- Crane Jib：Three-Arm
Base Info
- Model NO.：Spk23500
- Type：Straight Arm
- Transport Package：Nude Package
- Origin：China
- HS Code：84295100
- Production Capacity：5000pices,Year
Description
Item
Parameters
Unit
Capacity
Max. lifting capacity
10
t
Dimensions
Overall length
7990
mm
Overall width
2496
mm
Overall height
3311
mm
Axles
2
Axle distance-1,2
4600
mm
Axle distance-2,3
--
mm
Weight
Overall weight
20000
kg
Front axle load
7000
kg
Rear axle load
13000
kg
Engine
Model
D10.28-40
Rated power
204
kW
Rated torque
1190
Nm
Emissions
EURO IV
Traveling
Max. traveling speed
102
km/h
Approach angle
16
°
Departure angle
26
°
Max. gradeability
30
%
Main Performance
Rated lifting moment
75.0
kN.m
Max.outreach
9.6
m
Slewing torque
9.0(0.9)
kN.m(mt)
Slewing angle(continuous)
400
°
Operating pressure
31.5(315)
Mpa(bar)
Pump capacity
25-35
l/min
Air conditioner
HVAC in low cab
Cooling / Heating

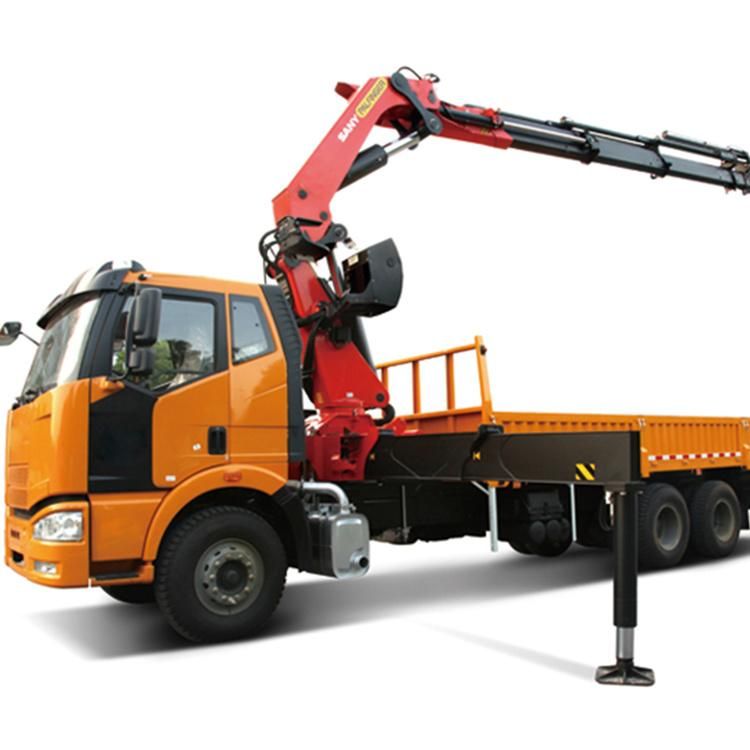

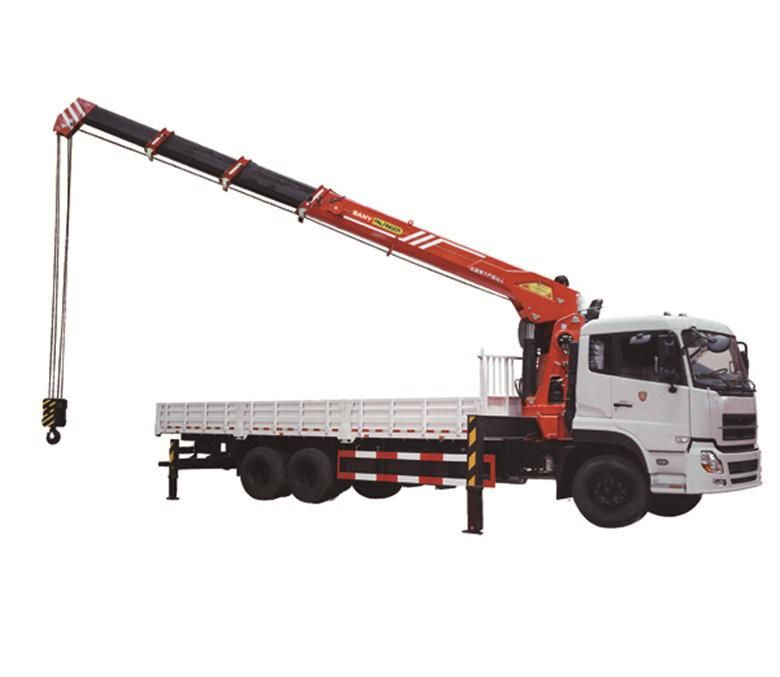

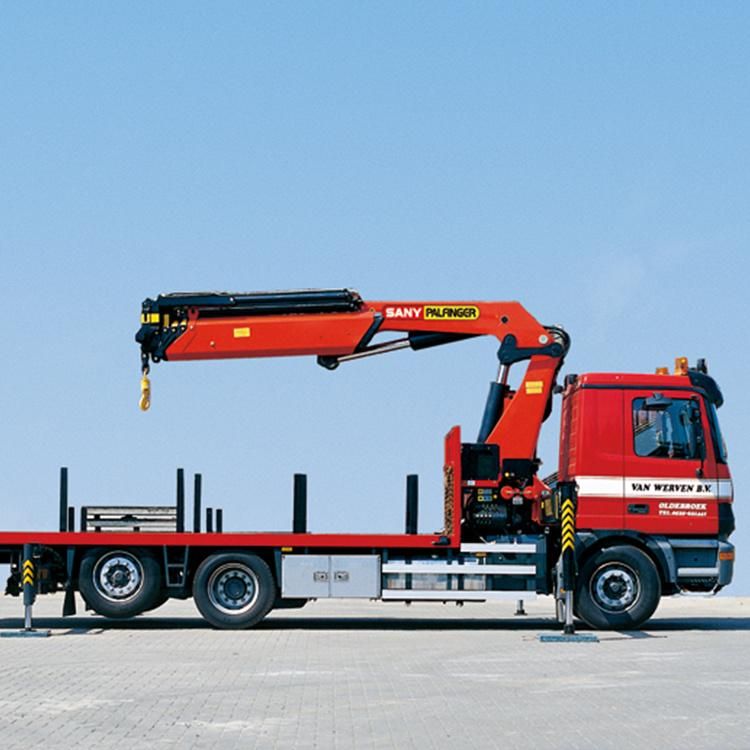

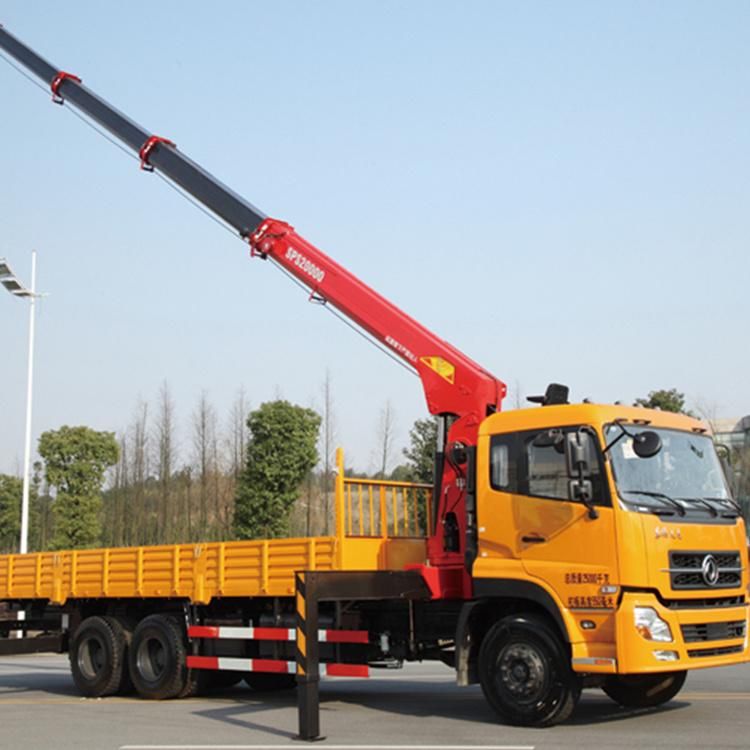

Pictures
