Zoomlion All Terrain Crane 150 Ton with Good Price (ZAT1500)
Sinomada Heavy Industry (Changsha) Co., Ltd.- Certification:CE, ISO9001
- Condition:New
- Maximum Lifting Height:>40m
- Maximum Lifting Weight:>16t
- Shaft Number:3
- Crane Jib:Four-Arm
Base Info
- Model NO.:ZAT1500
- Type:Folding
- Max. Lift Height of Jib:87 M
- Jib Length:1118.6
- Max. Slewing Speed:1.4 R,Min
- Max. Driving Speed:75 Km,H
- Max. Gradeability:40 %
- Transport Package:Roro,Container,Nude
- Specification:15390*3000*4000 mm
- Trademark:Zoomlion
- Origin:China
- HS Code:87051091
- Production Capacity:50units,Month
Description
Overview
Product DescriptionItem Unit Value Remarks Working performance Max. rated lifting capacity kg 150000 At 3m radius Max. load moment of basic boom kN.m 4704 At 6m radius Max. load moment of max. length boom
(fully extended) kN.m 1505 At 32m radius Max. load moment of basic boom m 13.0 Max. lifting height of main boom m 72 These parameters do not include deflection
of main boom and jib. The value in the brackets
is the value with the extension installed. Max. lifting height of jib m 87/(95) Working speeds Max. hoist rope speed(Main winch) m/min 114 At the 4th layer Max. hoist rope speed(Auxiliary winch) m/min 74 At the 3rd layer Boom derricking up time s 94 Boom extendingt time s 860 Max. Slewing speed r/min 1.4 Driving parameters Max. driving speed km/h 75 Max. gradeability % 40 Turning diameter m ≤20 Min. ground clearance mm 305 Limits for exhaust
pollutants and smoke Conform to related standards GB3847-2005/GB17691-2005(National Stage 4) Fuel consumption

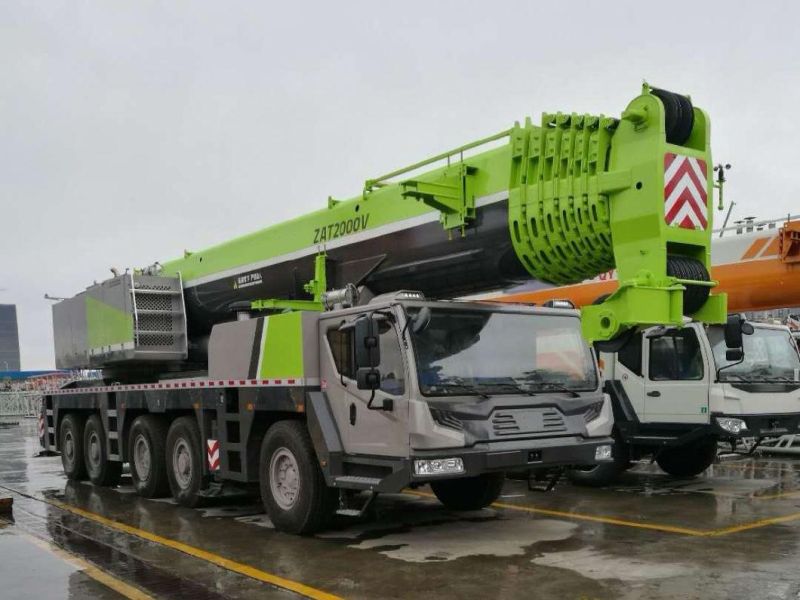

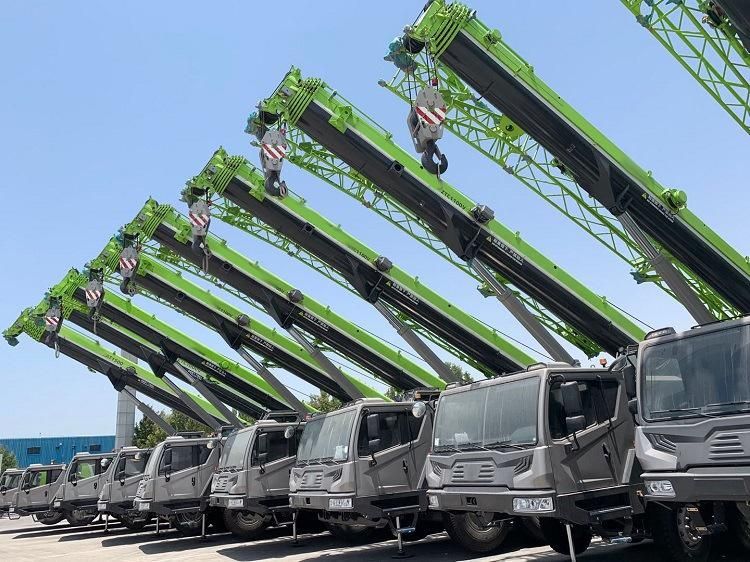

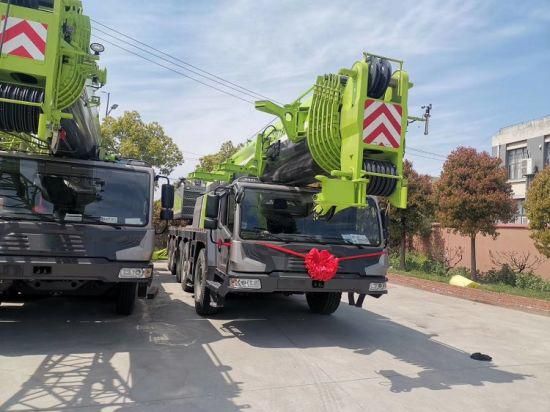

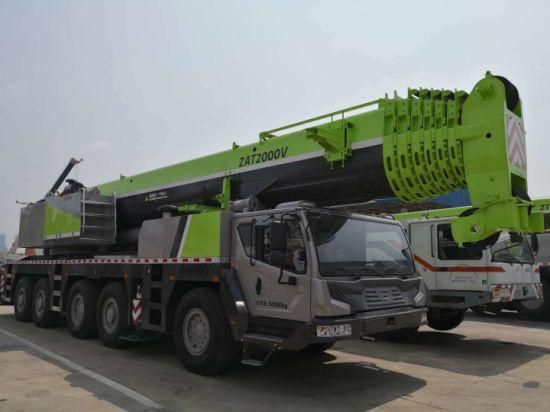

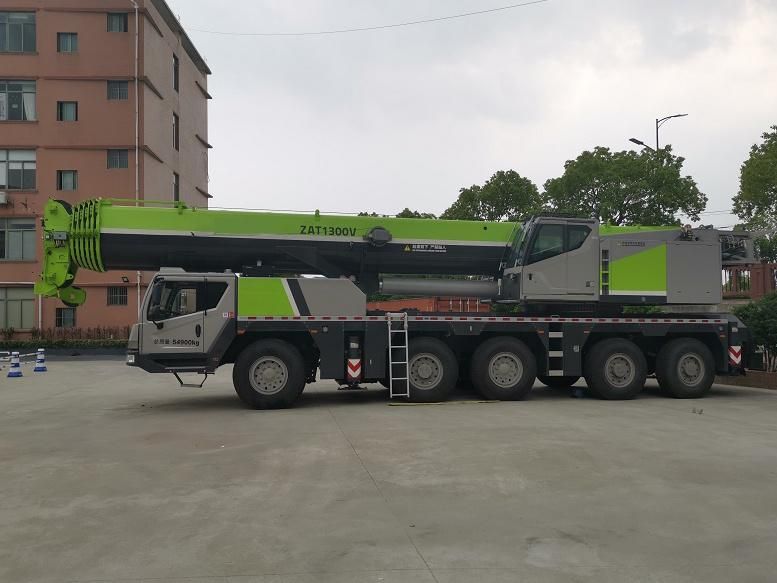

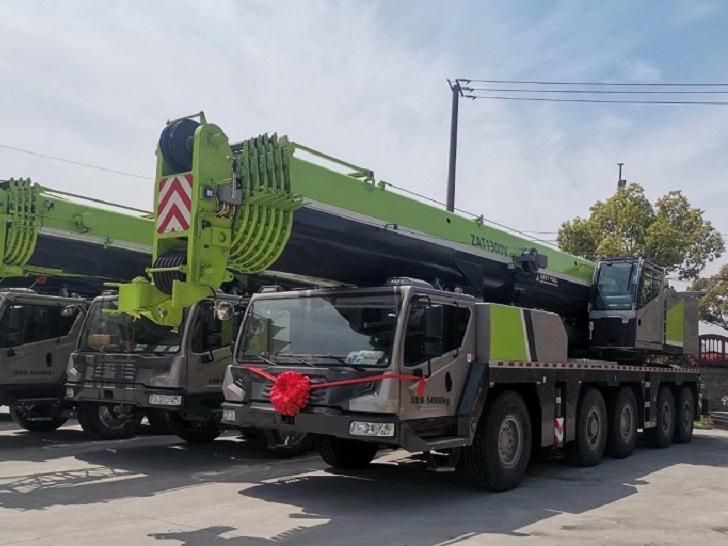

per hundred kilometers L 76 Mass Deadweight in driving condition kg 60000 Complete vehicle kerb mass kg 59805 Load on axles 1,2 and 3 kg 12000 Load on axles 4 and 5 kg 12000 Dimensions Overall dimensions(L×W×H) mm 15390×3000×4000 Outrigger spread(L) m 8.43 Outrigger spread(W) m Fully extended:7.8, Intermediately extended:5.3 Main boom length m 13.5 - 72 Boom angle ° -0.5 - 82 Jib length m 11,18.6 Jib + extension length m 26.6 Offset ° 0,30 Detailed Photos
