• Model NO.：RT60
• Engine Rated Power：194kw,(R,Min)
• Max. Travel Speed：35km,H
• Min. Turning Diameter：12.2m
• Transport Package：Comply with Export Packaging Requirment
• Specification：13135*3180*3750mm
• Trademark：XCMG
• Origin：Xuzhou, Jiangsu, China
• HS Code：87059091
• Production Capacity：10000,Year

Basic Info.

Model NO. RT60 Engine Rated Power 194kw/(R/Min) Max. Travel Speed 35km/H Min. Turning Diameter 12.2m Transport Package Comply with Export Packaging Requirment Specification 13135*3180*3750mm Trademark XCMG Origin Xuzhou, Jiangsu, China HS Code 87059091 Production Capacity 10000/Year

Product Description

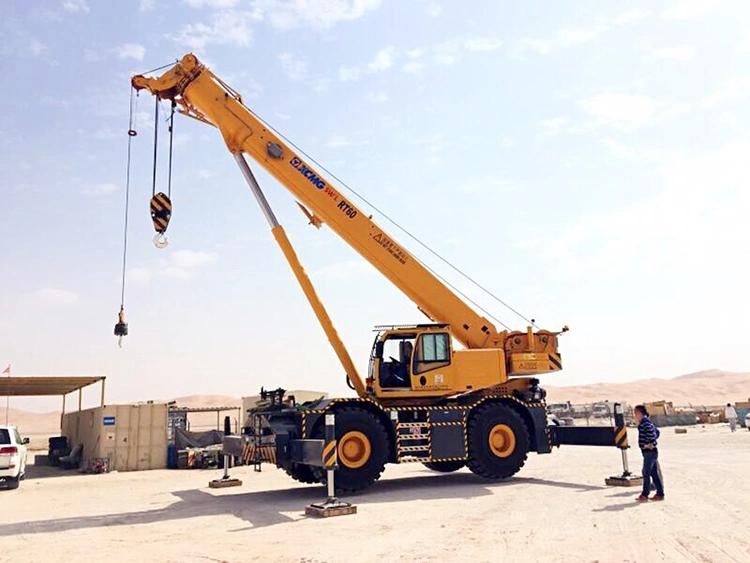

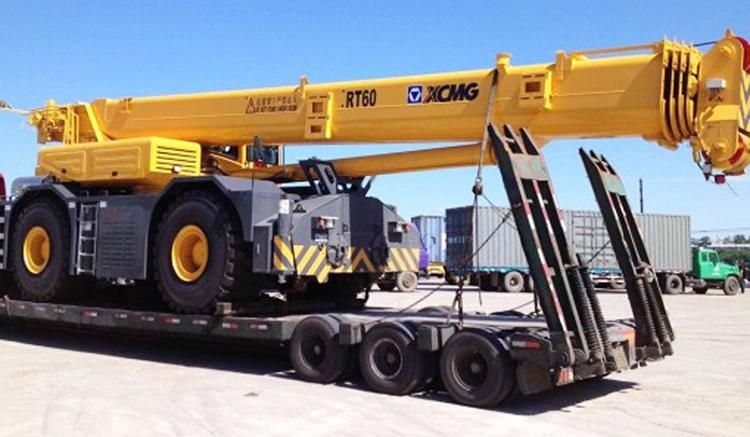

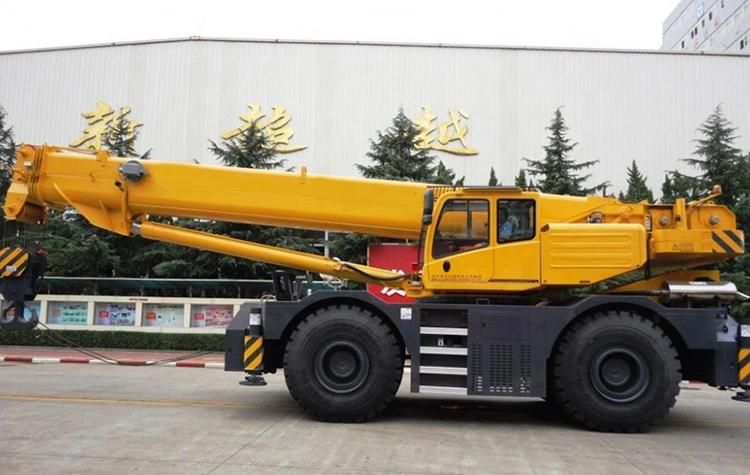

XCMG Official 60 Ton Truck Telescoping Crane Rt60

Main parameters:
Max. rated total lifting capacity:60T
Full-extend boom:11.3M
Full-extend boom+jib:35.8M
Boom length:49.1M

Main configuration:
*Engine:QSB6.7(194kw)
* Wire rope
* Hirschmann PAT
*Heater
*Full dimension cab

XCM RT60 has larger working radius, stronger lifting capacity. Fast transferring, high operation efficiency, optimized customer benefits!38 safety provisions, complete safeguard!Three energy saving measures decreases operating cost efficiency!European technique, professional manufacturing! Various configurations, complete models!

[Product Parameter]

Dimension	Unit	XCM RT60
Overall length	mm	13135
Overall width	mm	3180
Overall height	mm	3750
Total weight in travel	kg	49000
Engine model		QSB6.7
Engine rated power	kW/(r/min)	194
Engine rated torque	N.m/(r/min)	842
Max. travel speed	km/h	35
Min. turning diameter	m	12.2
Min. ground clearance	mm	467
Approach angle	°	20
Departure angle	°	17.5
Max. grade ability	%	65
Fuel consumption for 100km	L	-
Max. rated total lifting capacity	t	60
Min. rated working radius	m	3
Turning radius at turntable tail	m	4.1
Max. lifting torque	kN.m	2033
Full-extend boom	m	11.3
Full-extend boom+jib	m	43.9
Boom length	m	58.1
