• Model NO.：OKT-25T
• Type：Straight Arm
• Engine：Cy4bk251
• Tire：1100-20
• Wheelbase：4.3m
• The High Speed：75km,H
• Single Arm Length：10m
• Number of Boom Sections：4
• Maximum Turning Speed：2.4r,Min
• Number of Lifting Legs：5
• Boom Maximum Elevation Angle：75
• Power：196kw
• Weight：25000kg
• Transport Package：Export Packing
• Specification：13500*2500*3500mm
• Trademark：OUKE
• Origin：China
• HS Code：8427900000
• Production Capacity：200pieces,Month

Basic Info.

Model NO. OKT-25T Type Straight Arm Engine Cy4bk251 Tire 1100-20 Wheelbase 4.3m The High Speed 75km/H Single Arm Length 10m Number of Boom Sections 4 Maximum Turning Speed 2.4r/Min Number of Lifting Legs 5 Boom Maximum Elevation Angle 75 Power 196kw Weight 25000kg Transport Package Export Packing Specification 13500*2500*3500mm Trademark OUKE Origin China HS Code 8427900000 Production Capacity 200pieces/Month

Product Description

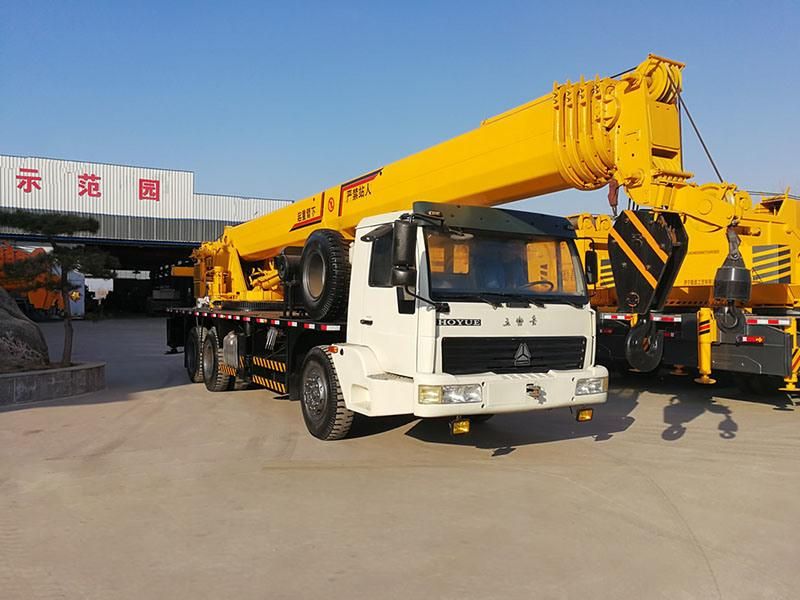

Truck Hydraulic Mounted Telescopic Boom Crane South Africa 25t

The optimizing layout of the machine makes the stress of the main bearing carriers more reasonable, and the lifting performance is higher than the products with the same tonnage.
• Apply the mature jib technique which integrates plug-in boom head, embedded boom block, and special telescoping mechanism, which makes the jib more stable and reliable.
• Optimize the stress design. Adopt the box-type outriggers which have larger span, stronger rigidity, and better stability.

Technology

Maximum rated starting weight	25T
Engine power	196kw
Axle	Front single bridge rear double bridge
Tire	1100-20
Wheelbase	4.3 meters 5.7 meters
Tread	2.5 meters
Brake	Air brake
Driving direction	Power steering
Basic ARM length	10 m
Number of large arms knots	4 knots
Longest arm length	34 meters
Maximum lifting height	34 meters (from the ground)
Maximum elevation angle of boom	75 degrees
Lifting arm Minimum elevation angle	0.5 degrees
Maximum rotation speed (empty	2.4r/min
Minimum rotation speed (full load):	0.3 r/min
Amplitude time: Full starting arm: The whole drop arm:  46 Telescopic time: Full extension arm: 92s full Arm	Full arm: 85 s full arm: 46 telescopic time: full arm: 92s 75s
legs	5 full hydraulic legs
Vertical span of legs (front and rear):	5.55 meters
Lateral span of leg (side):	6.1 meters
Length, Width and height	13.5 meters 2.5 meters 3.5 meters
Dual hoist	Double hydraulic winch hoist
