Shenxi ANSI Standard Double Mast Climber

Shenxi Machinery Co., Ltd.
  • Certification:CE, ISO9001, ISO9001: 2000
  • Condition:New
  • Operation Form:Air Operation+Ground Operation
  • Maximum Lifting Height:150m
  • Maximum Lifting Weight:1.4t
  • Type:Lifting Platform

Base Info

  • Application:Construction Usage
  • Drive:Pionion and Gear
  • Power Source:Electric
  • Specification:CE,GB,ISO
  • Trademark:SHENXI
  • Origin:Wuxi, China
  • HS Code:8428909090

Description

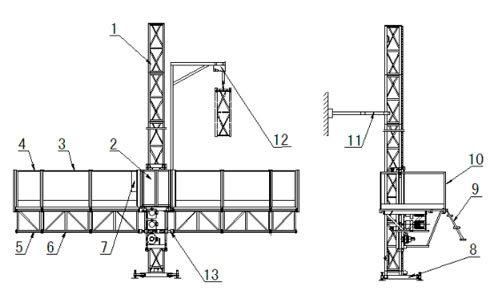

 Shenxi ANSI Standard Double Mast Climber 1Mast section2Drive unit3Long balustrade4Short balustrade5Long platform6Short platform7Electrical system8Base frame9Ladder10Side frame12Mast tie13Electrical winch
Technical Parameters:
No.ItemSingle mast climbing work platform
1ModelSTC100
2Rated load when the platform reaches its max. length1000 kg
3Max. carrying capacity3 persons
4Rated lifting speed8.3 m/min
5Max. operating height150 m
6The distance above the last tie-in4.0 m
7Max. length of platform8.8 m
8Basic platform width1.5 m
9Max. platform width after extension2.5 m
10The first tie-in from the ground3~4 m
11Tie-in spacingAbout 6m
12Standard section size1508×500×500 mm
13Motor modelTYHI100L1-4
14Motor power2*2.2kW

No.ItemDouble mast climbing work platform
1ModelSTC100
2Rated load when the platform reaches its max. length1400kg
3Max. carrying capacity6 persons
4Rated lifting speed8.3 m/min
5Max. operating height150 m
6The distance above the last tie-in4.0 m
7Max. length of platform23.6 m
8Basic platform width1.5 m
9Max. platform width after extension2.5 m
10The first tie-in from the ground3~4 m
11Tie-in spacingAbout 6m
12Standard section size1508×500×500 mm
13Motor modelTYHI100L1-4
14Motor power4*2.2 kW
