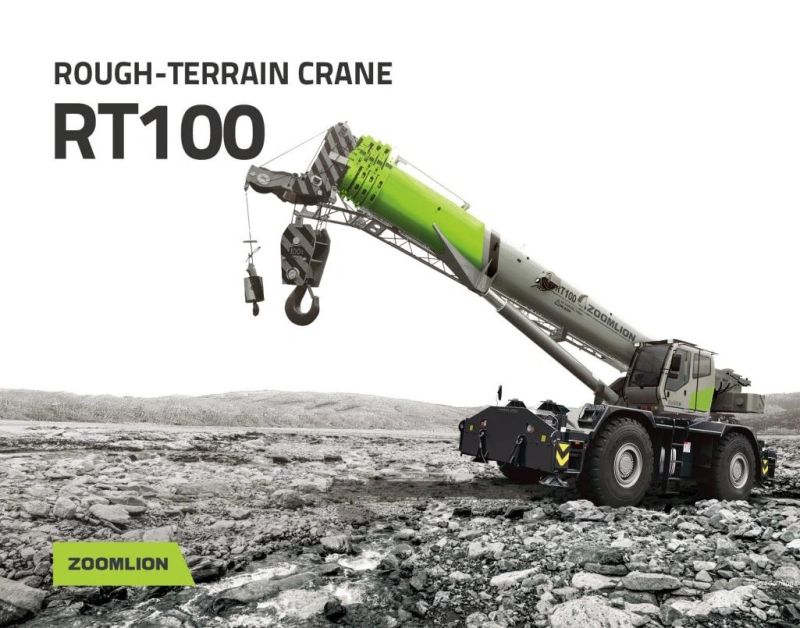

Zoomlion 100ton Rough Terrain Crane Rt100 with Import Engine

Sinomada Heavy Industry (Changsha) Co., Ltd.
  • Certification：CE, ISO9001
  • Condition：New
  • Maximum Lifting Height：>40m
  • Maximum Lifting Weight：100ton
  • Shaft Number：3
  • Crane Jib：Five-Arm

Base Info

  • Model NO.：RT100
  • Type：Folding
  • Swing Speed：1-1.5r,Min
  • Hydraulic Oil Tank Capacity：1200L
  • Complete Vehicle Mass：65000kg
  • Wheelbase：4600mm
  • Rated Work Pressure：30MPa
  • Transport Package：Roro,Container

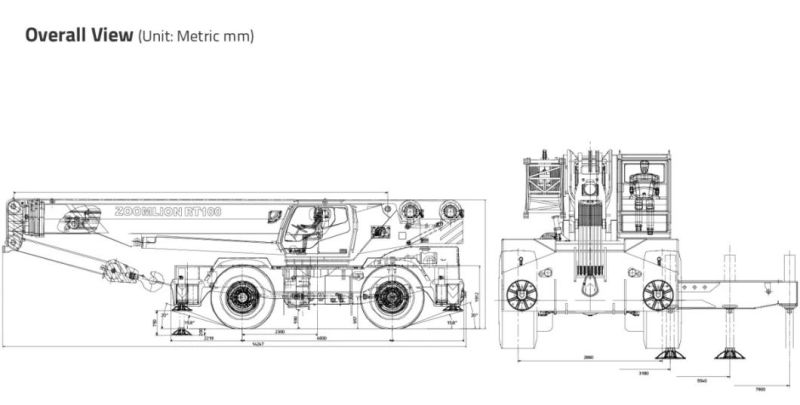

  • Specification：14247× 3620× 3960mm
  • Trademark：Zoomlion
  • Origin：Hunan, China
  • Production Capacity：1000 Pieces,Per Month

Description

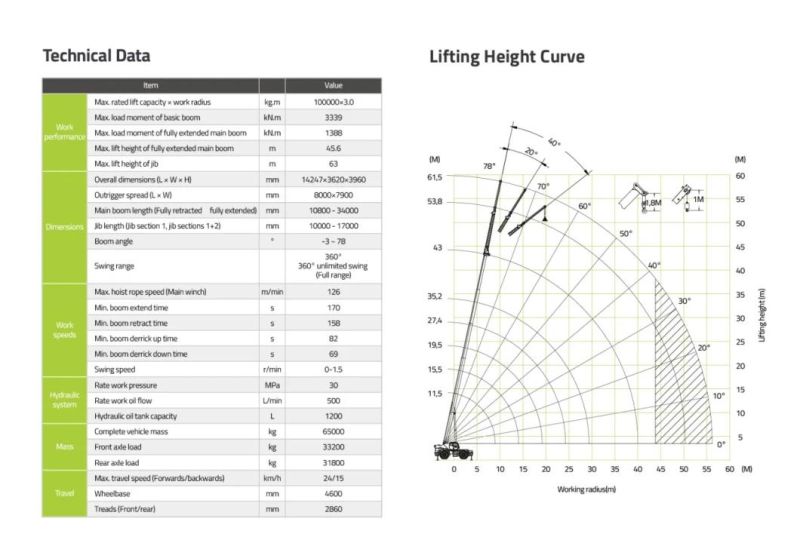

ItemUnitValueWork performanceMax. rated lift capacity × work radiuskg.m100000×3.0Max. load moment of basic boomkN.m3339Max. load moment of fully extended main boomkN.m1388Max. lift height of fully extended main boomm45.6Max. lift height of jibm63DimensionsOverall dimensions(L×W×H)mm14247×3620×3960Outrigger spread (L×W)mm8000×7900Main boom length (Fully retracted fully extended)mm10800-34000Jib length (Jib section 1,jib sections 1+2)mm10000-17000Boom angle°-3 - 78Swing range°360       360° unlimited swing(Full range)Work SpeedsMax. hoist rope speed (Main winch)m/min126Min. boom extend times170Min. boom retract times158Min. boom derrick up times82Min. boom derrick down times69Swing speedr/min0-1.5Hydraulic systemRated work pressureMPa30Rated work oil flowL/min500Hydraulic oil tank capacityL1200MassComplete vehicle masskg65000Front axle loadkg33200Rear axle loadkg31800TravelMax. travel speed (Forwarsd / backwards)km/h24/15Wheelbasemm4600Treads (Front / rear)mm2860

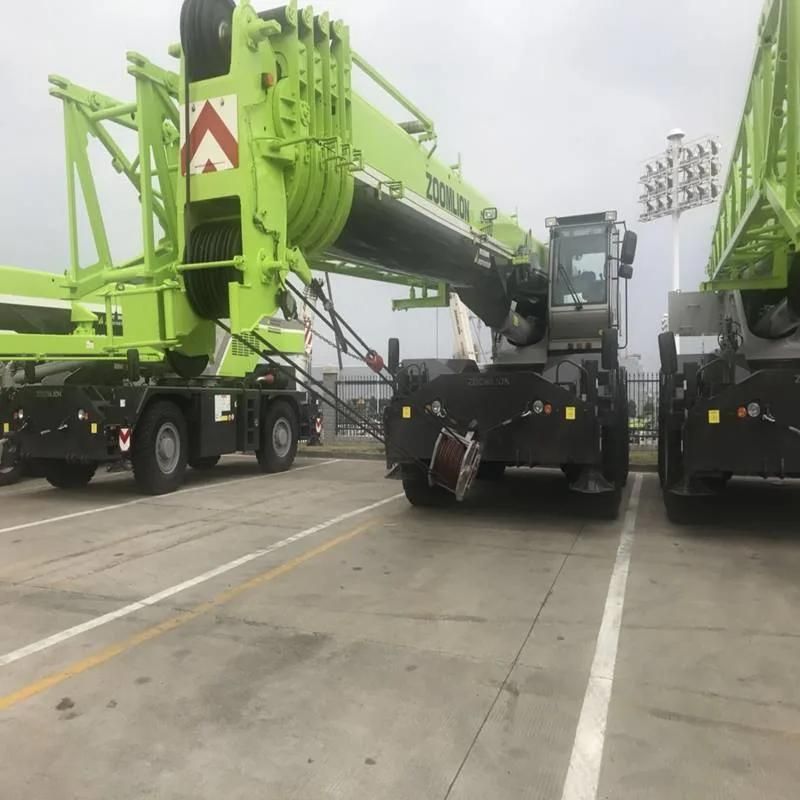

Construction Case Picture
