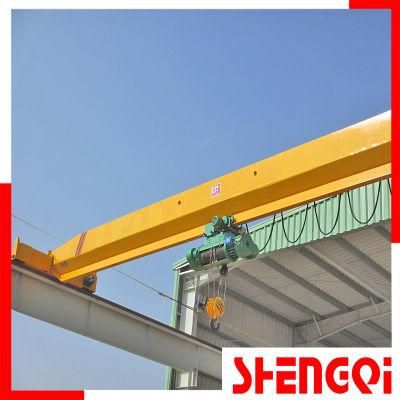

Overhead Crane Wire Rope Hoist Single Girder Crane Capacity 32t
Lyfoo Industry Co., Ltd.- Certification：ISO9001: 2000
- Condition：New
- Operation Form：Air Operation+Ground Operation
- Maximum Lifting Height：30-40m
- Maximum Lifting Weight：20-50t
- Main Girder Form：Single Girder
Base Info
- Model NO.：LD
- Type：Single Girder Crane
- Quality：Reliability & Durability
- Types of Electric Hoist：CD, MD
- Crane Motor：Zd52-4,18.5kw and Zd41-4,7.5kw
- Lifting Speed(M/Min)：8, 0.8,8; 7, 0.7,7
- Application：Workshop Usage
- Cross Speed：20 M,Min
- Long Travel Speed：20 M,Min, 5,20 M,Min
- Electrical System Brand：Siemens,Schneider,Chint
- Affiliate Documents：English Operation Manual, Wiring Diagram
- Power Supply：380V,50Hz,3p, Can Be Customized
- Transport Package：Wooden Box, Plywood
- Trademark：Lyfoo industry
- Origin：Xinxiang, Henan, China
- HS Code：84261120
- Production Capacity：15000 Per Year
Description
Crane traveling mechanism Performance parameters 1-5t 10t Traveling Speed (m/min) 20 20 Reduction Ratio (i) 38 38 Motor type YES power 2×0.4 2×0.8 Rotational speed 1200 Working System A5 Power supply 3phrase 380V 50Hz Wheel diameter Ф200 Width of Track 37-70mm
Specifications:
LD-A type electric single-girder overhead crane is designed and manufactured according to standard JB/T1306-1994. It is usually fitted with single/double speed electric hoists. Its rated lifting capacity is 1t-20t, span is 7.5m~22.5m, applicable temperature is -25° C~ +40° C, and the humidity is no higher than 85%.
Warranty:
14 months warranty when products leave the factory, or 12 months warranty after installation and commissioning in addition to the human damage factors.
2 years spare-parts provided for better maintenances.
Professional technical staffs provide installation, commissioning and training services.
Delivery with English user manual, parts manual, product certification and other relevant certificates.
Technical advisory for any time.
Specifications:
LD-A type electric single-girder overhead crane is designed and manufactured according to standard JB/T1306-1994. It is usually fitted with single/double speed electric hoists. Its rated lifting capacity is 1t-20t, span is 7.5m~22.5m, applicable temperature is -25° C~ +40° C, and the humidity is no higher than 85%.
Warranty:
14 months warranty when products leave the factory, or 12 months warranty after installation and commissioning in addition to the human damage factors.
2 years spare-parts provided for better maintenances.
Professional technical staffs provide installation, commissioning and training services.
Delivery with English user manual, parts manual, product certification and other relevant certificates.
Technical advisory for any time.
