• Model NO.：ZMC85
• Type：Folding
• Transport Package：Container
• Specification：14500*2800*3850 mm
• Trademark：ZOOMLION
• Origin：China

Overview Product Description

Highlights

Outstanding lifting capacity, especially for the frequently used intermediate and long boom variants.
New-type jib assembling / dismantling mechanism, making the work just a matter of minutes.
Fixed and moveable counterweight in a total weight of 9 t, all attachable to the crane during transit.
All wheel steerable 4-axle chassis, providing extremely flexible steering.
Heavy-duty all steel wire tubeless tires (Tier 20), offering excellent load bearing capacity and abrasion-resisting performance.
Intelligent radiator, ensuring stable work of the hydraulic system.

Technical description
Main boom: Weight optimized, with superior lifting capacity and smooth telescoping process

Optimized boom:
The boom in optimized U-type boom profile is made from 960 premium-grade high-tensile steel.

Outstanding lifting capacity and stability:
Besides the exceptional lifting capacity, the intermediate and long boom variants are especially with extraordinary stability.

Durable slide blocks:
Slide blocks are in abrasion-resisting materials for prolonged service life.

Patented telescoping technology:
With the technology, telescoping cylinder I and cylinder II can be telescoped in or out in any sequence, thus providing you with more and flexible working condition choices.

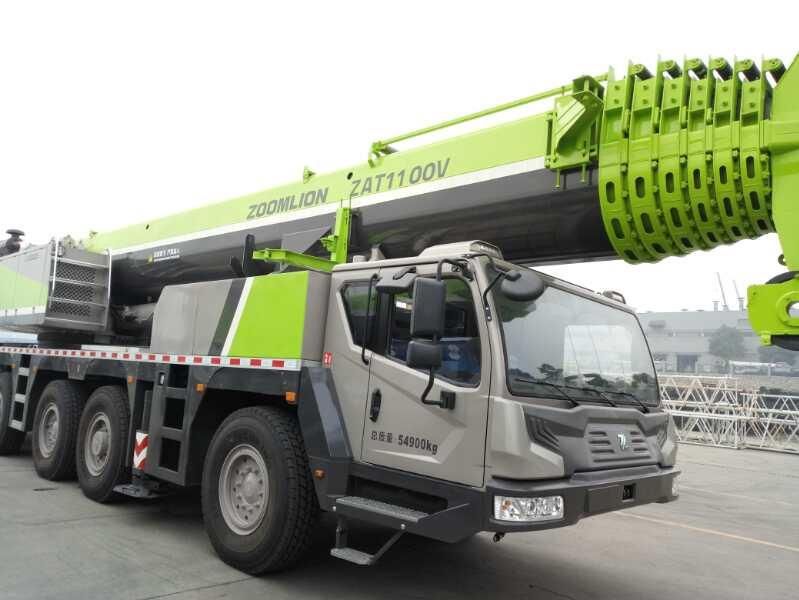

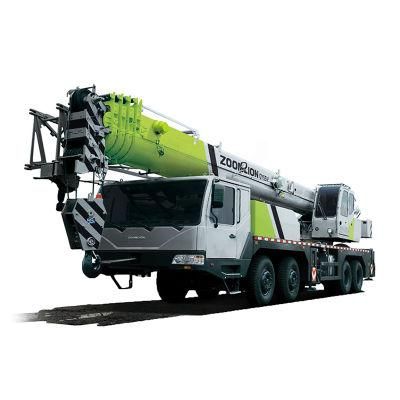

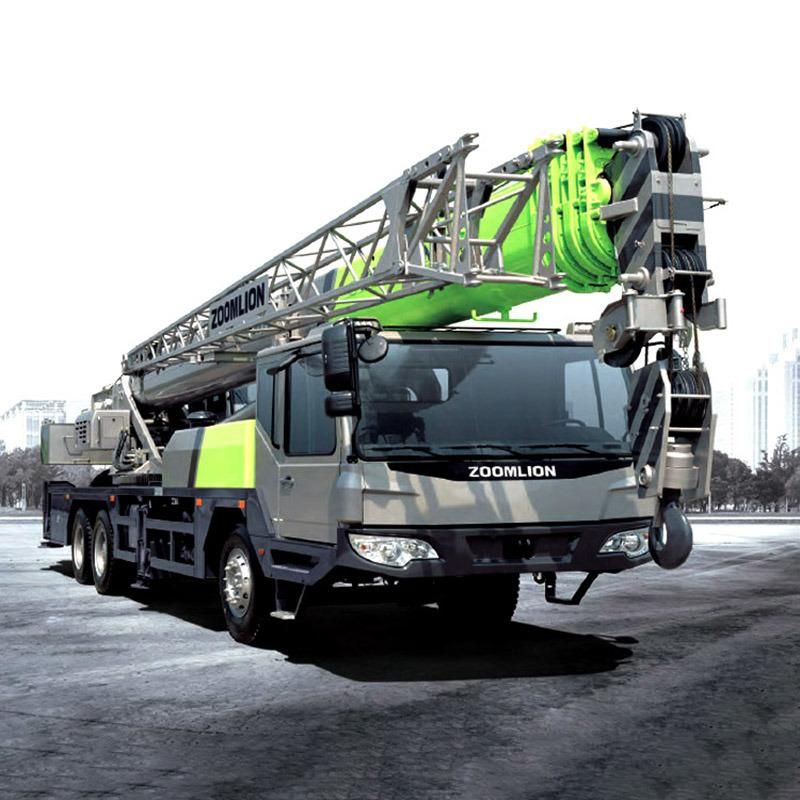

Detailed Photos

Product ParametersItemUnitValueWorking performanceMax. rated lifting capacitykg85000Max. load moment of basic boomkN.m2764Max. load moment of max. length boom boom(fully extended)kN.m1376Max. load moment of basic boomm12.8Max. lifting height of main boomm46.4Max. lifting height of jibm62.5Working speeds                           Max. hoist rope speed(Main winch)m/min140 Drum 4th  layerMax. hoist rope speed(Auxiliary winch)m/min120 Drum 2nd   layerBoom derricking up times55Boom telescoping out times110Slewing  speedr/min0 - 1.7Driving parametersMax. driving  speedkm/h75Max. gradeability%37Turning diameterm≤20Min.  ground clearancemm300Oil consumption per hundred kilometersL48MassDeadweight in driving conditionkg48000Complete vehicle kerb masskg47870Front axle loadkg24000Rear axle loadkg24000DimensionsOverall dimensions(L×W×H)mm14500×2800×3850Outrigger spread(L)m6.15Outrigger spread(W)mFully extended:7.80,     Intermediately extended:5.17Tail slewing radiusmm4300Main boom lengthm12.0 - 46.0Boom angle°-2 - 80jib lengthm9.5,16.0Offset°0,15,30Packaging & Shipping
