• Model NO.：QY30V
• Shaft Number：3
• Crane Jib：Three-Arm
• Type：Folding
• Transport Package：Nude Package
• Trademark：Top Brand
• Origin：China
• HS Code：8429521200

Type

Ser. No.

Item

Unit

Value

Working performance

1

Max. rated lifting weight × working radius

kg.m

30000×3.0

2

Max. lifting torque of basic boom

kN.m

1132

3

Max.lifting torque of longest main boom

kN.m

617.5

4

Max. lifting height of longest main boom

m

40.5

5

Max. lifting height of jib

m

48.5

Dimensions

6

Outline dimensions (L×W×H)

mm

12900×2500×3465

7

Distance between outriggers (longitudinal × transversal)

mm

5360×6100

8

Main boom length (completely retracted - completely extended)

m

10.6~40

9

Jib length

m

8

10

Main boom angle of elevation

°

-2~80

11

Swing range

360°continuously

Working speed

12

Max.speed of single rope on the drum of main winch

m/min

120

13

Boom extension time

s

80

14

Boom derricking up time

s

40

15

Swing speed

r/min

0~2.2

Mass

16

Complete vehicle kerb mass

kg

31870

17

Front axle load

kg

7000

18

Rear axle load

kg

25000

Traveling

19

Max. traveling speed

km/h

78

20

Max. gradeability

%

37

21

Min. turn radius

m

11

22

Min. ground clearance

mm

220

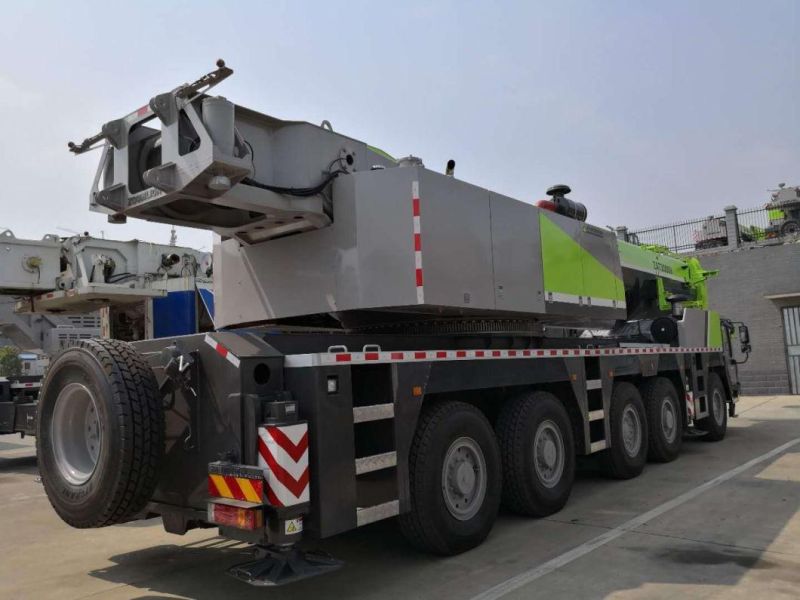

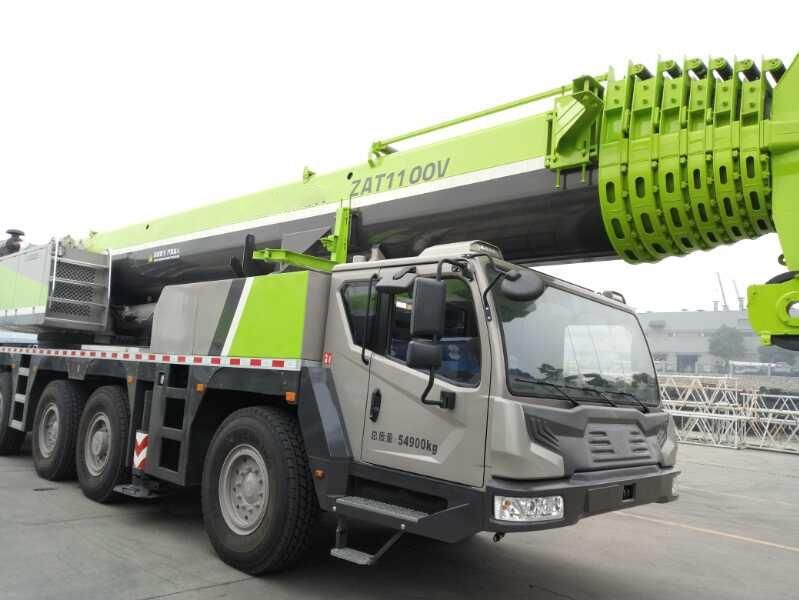

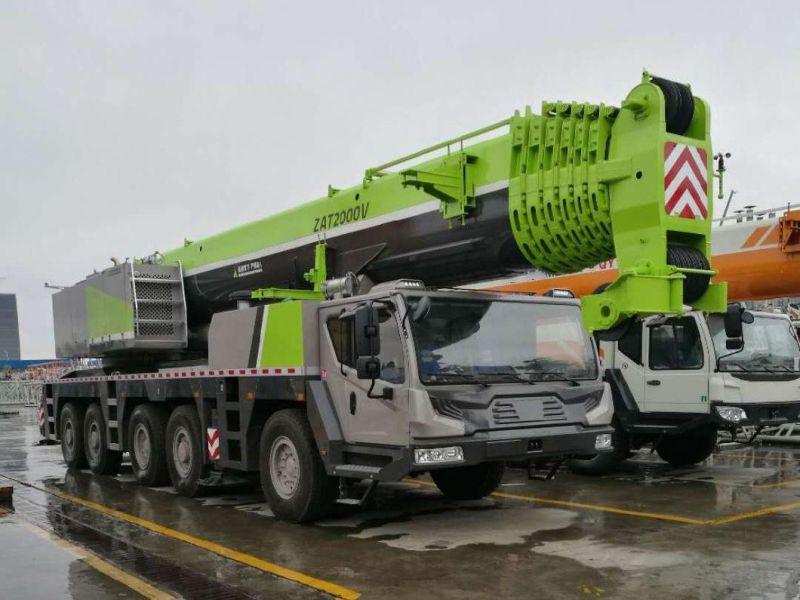

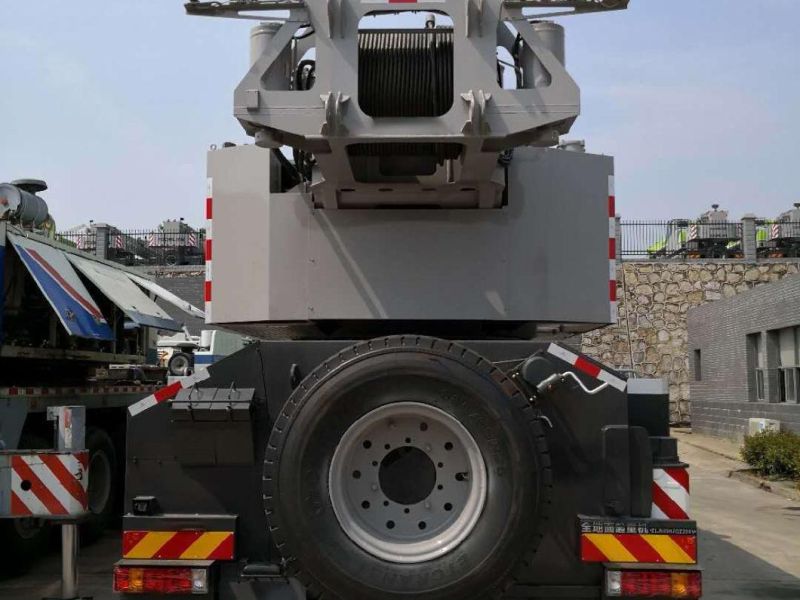

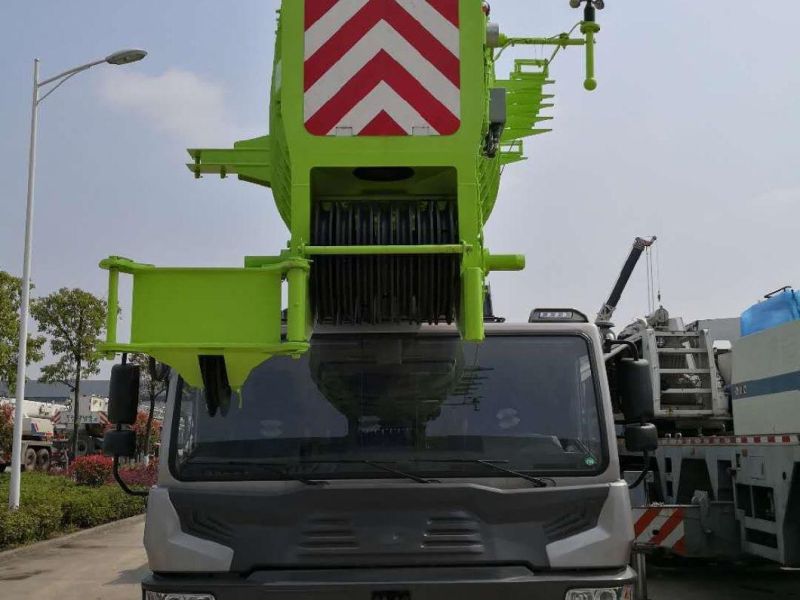

Product Pictures
