• Model NO.：All Models
• Installation：Overall Rapid Disassembly
• Moving Type：Fixed
• Type：Tower Crane
• Application：Construction Usage, Workshop Usage
• Tower Crane Type：Under Slewing Cranes
• Sling Type：Wire Rope
• Main Girder Form：Double Girder
• Power Source：Lever
• Slewing Speed：0.6 R,Min
• Max. Hoisting Load：1-16t
• Working Radius：3-80m
• Hoisting Height：35-150m
• Transport Package：DHL,TNT,Sea Freight,in Cartons
• Specification：420*320*390(mm)
• Trademark：SYM
• Origin：China (Mainland)
• HS Code：8431499900
• Production Capacity：500 Sets Per Month

Basic Info.

Model NO. All Models Installation Overall Rapid Disassembly Moving Type Fixed Type Tower Crane Application Construction Usage, Workshop Usage Tower Crane Type Under Slewing Cranes Sling Type Wire Rope Main Girder Form Double Girder Power Source Lever Slewing Speed 0.6 R/Min Max. Hoisting Load 1-16t Working Radius 3-80m Hoisting Height 35-150m Transport Package DHL/TNT/Sea Freight/in Cartons Specification 420*320*390(mm) Trademark SYM Origin China (Mainland) HS Code 8431499900 Production Capacity 500 Sets Per Month

Product Description

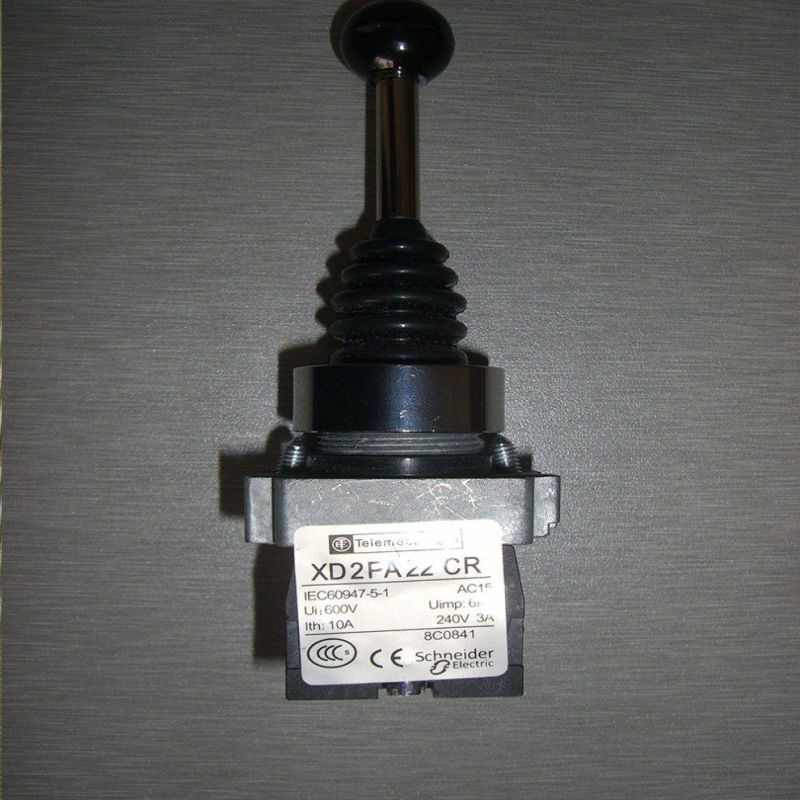

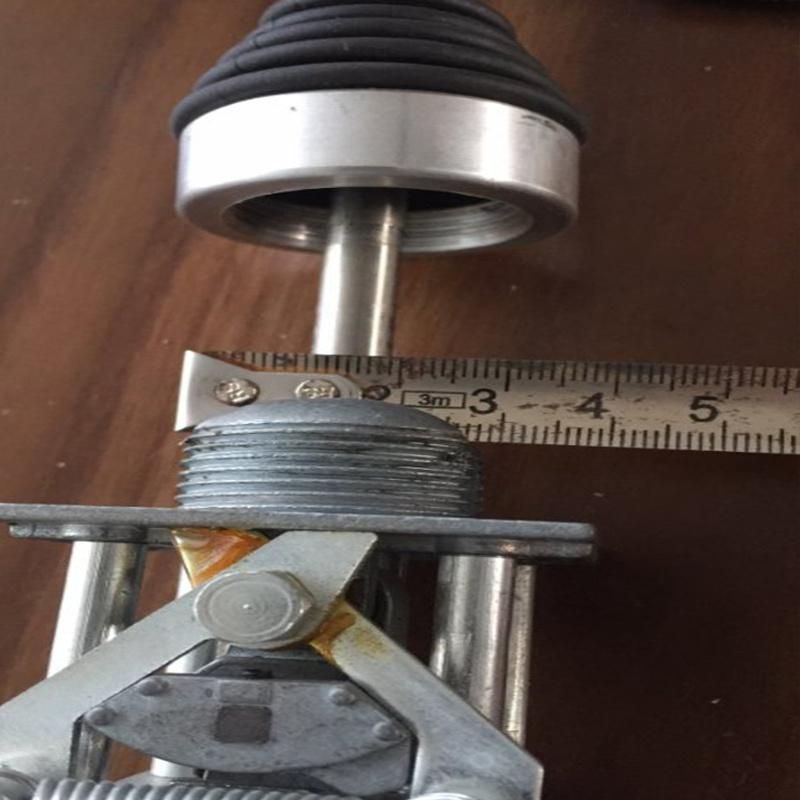

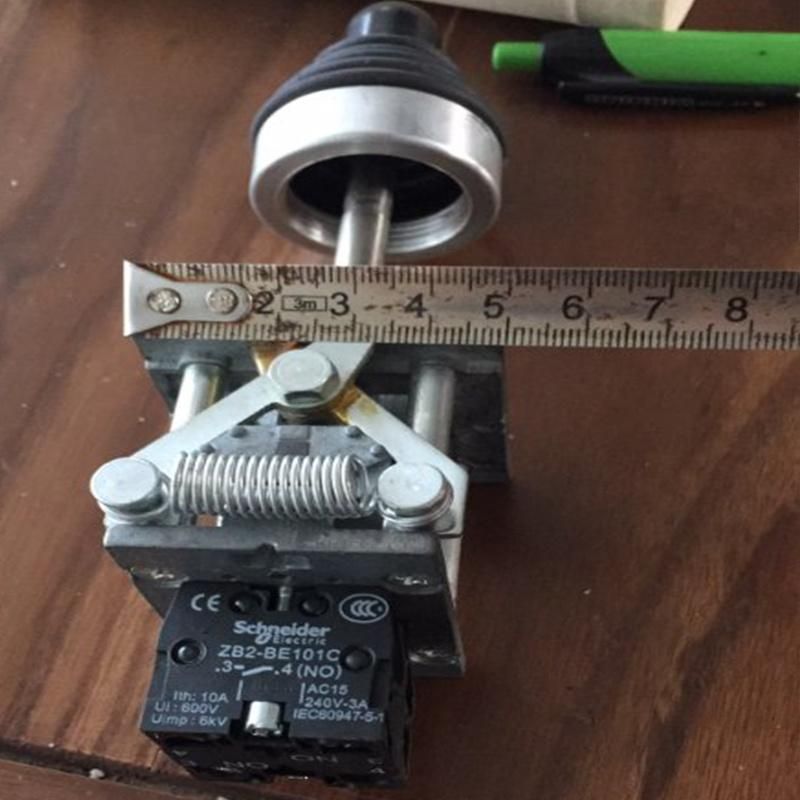

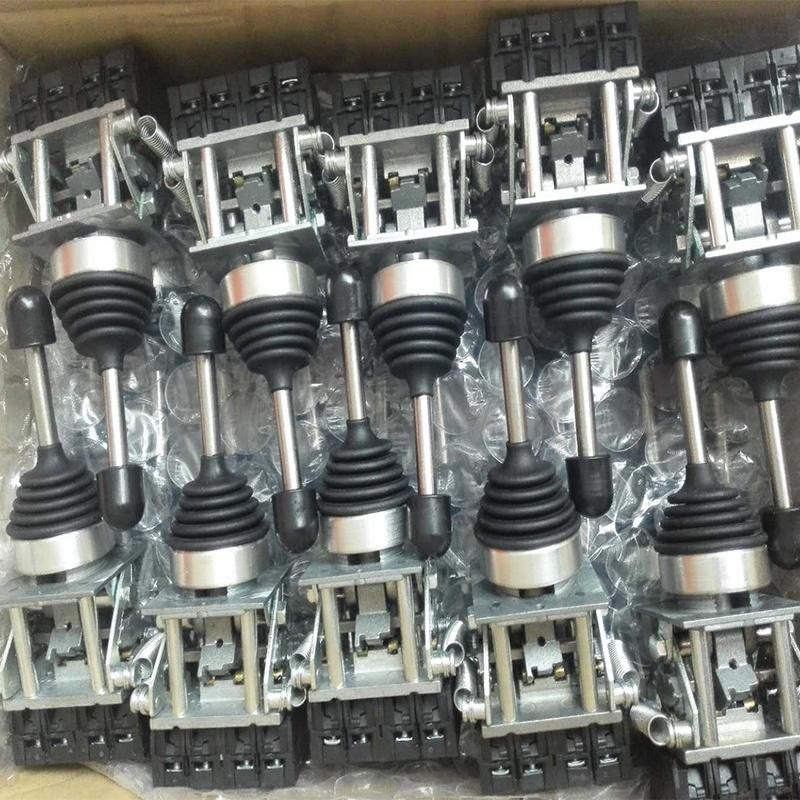

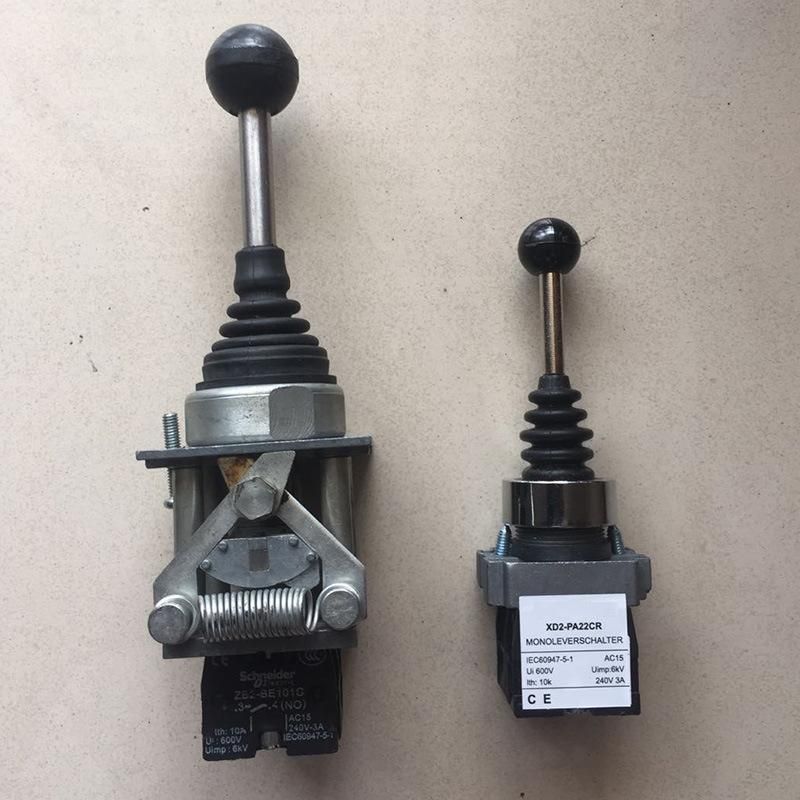

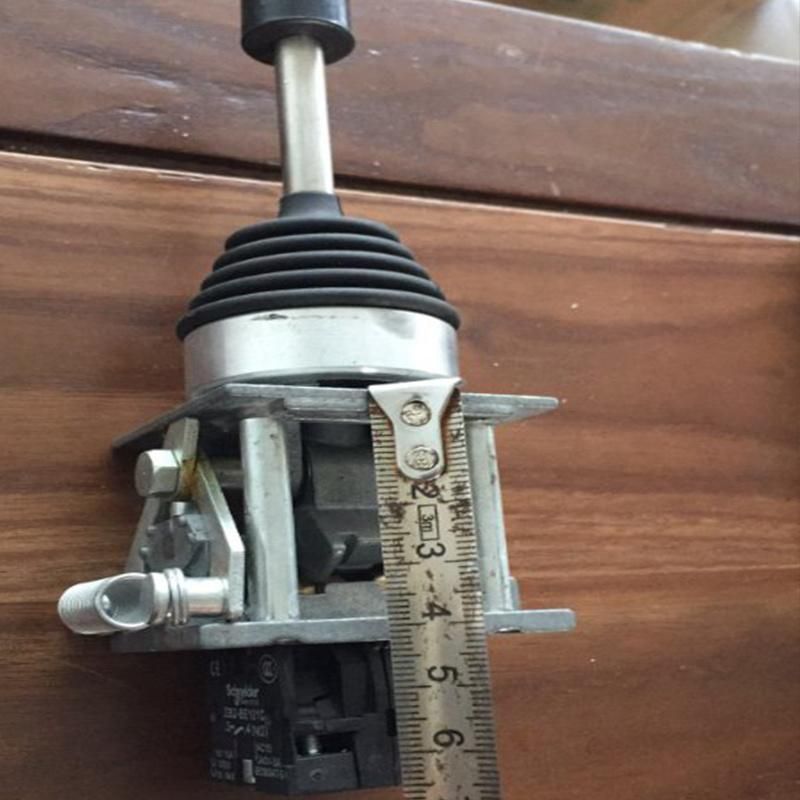

1/2 speed Passenger Hoist Master Controller Joysticks

1 Application

   QTXXX series hoisting console is mainly used to control the starting,speed,braking and steering of tower crane hoist.

2 Structure characteristic

   This product imported F0/23B,H3/36B tower crane hoisting console device from a French company which widely apply for various products and operating modes hoisting.

   Product external adopts the engineering plastic injection molding specifications, looks beautiful.It is also can made up with metal cover or you can choose other hoisting console model of our company according to the customers' requirement.Operation system sets 0 self-lock and self reseting device for working safety and reliability.Meanwhile, each part of the system can additional installed potentionmeter and encoder,through the assorted electronic control system to pressure regulating,frequency conversion,AC speed regulating to support the electronic system to control the motor step and stepless speed.

Specification:

name	unit	sc200/200
Rating loading capacity	kg	2x2000
Passenger number	Person	2x16
Rating rising rate	m/min	36
Max. promoting height	m	400
Motor power	KW	2x3x11
Cage size	m	3*1.5*2.5
650 mast section weight	kg	150
650 mast section length	mm	650x650x1508
steeve rating rising weight	Kg	200
