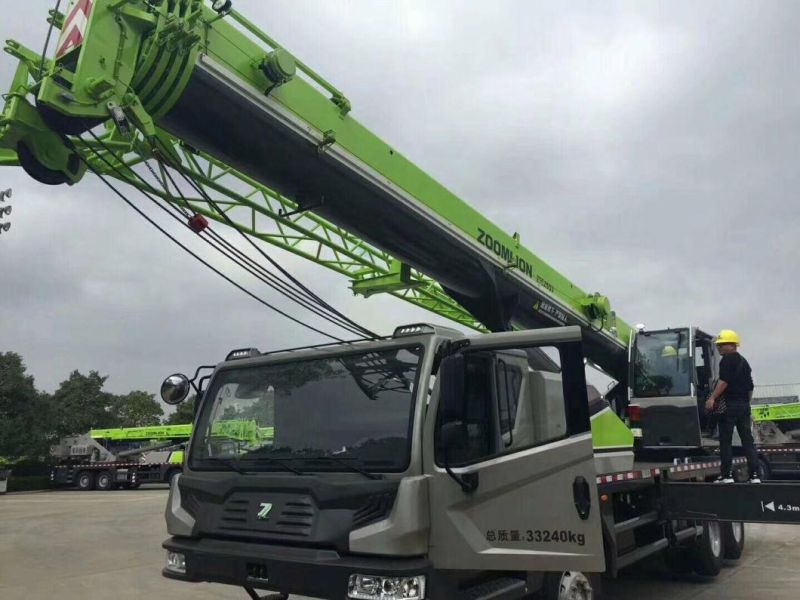

Telescopic 4 Section Arm Mini 25 Ton Truck Cranes (ZTC250V452) for Lifting
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：Available
- Warranty：2 Years
- Certification：CE
- Condition：New
- Maximum Lifting Height：30-40m
- Maximum Lifting Weight：>16t
Base Info
- Model NO.：ZTC250V452
- Shaft Number：3
- Crane Jib：Four-Arm
- Type：Folding
- Transport Package：Nude
- Specification：13100× 2500× 3450 mm
- Trademark：Zoomlion
- Origin：Hunan
- HS Code：8705109200
- Production Capacity：1000 Pieces,Month
Description
Item
Value
Working performance specification
Max. rated total lifting capacity
25000 kg
Max. load moment of basic boom
960 kN.m
Max. load moment with max. main boom
length
672 kN.m
Max. lifting height of basic boom
11.4 m
Max. lifting height of main boom
35.4 m
Max. lifting height of fly jib
43 m
Working speed
Max. speed of single rope on main winch
120 m/min
Max. speed of single rope onauxiliary winch
120 m/min
Derricking time of boom
25 s
Telescopic time of boom
64 s
Slewing speed
0~3 r/min
Traveling specification
Max. traveling speed
85 km/h
Max. gradeability
42 %
Min. turning circle diameter
20 m
Min. ground clearance
260 mm
Limits for exhaust pollutants and smoke
Comply with related standards
Oil consumption per hundred kilometers
28 L
Mass specification
Deadweight of crane in traveling condition
29600 kg
Complete vehicle kerb mass
29470 kg
Front axle load
6300 kg
Rear axle load
23300 kg
Dimension specification
Overall dimensions(L×W×H)
13100×2500×3450 mm
Base on outriggers
5.4 m
Distance between outriggers
6.1 m
Main boom length
10.7~35 m
Main boom angle°
-2~80
Fly jib length
8 m
Offset angle of fly jib°
0 , 15,30
