• Model NO.：Mini Gantry Crane
• Main Girder Form：Single Girder
• Product Name：Frame Gantry Crane
• Span：5-30m or on Request
• Application：Workshop Warehouse etc Hoist
• Rated Lifting Moment：60kn
• Rated Loading Capacity：0.5-5ton (on Request)
• Lifting Speed：on Request
• Power Source：Local Actual Condition
• Lifting Mechanism：Electric Hoist
• Crane Feature：Easy Operated Gantry Crane
• Main Electrical Parts：Delixi Siemens
• Warranty：2 Years
• Colour：Optional
• Crane Type：Travelling Gantry Crane
• After-Sales Service Provided：Engineers Available to Service Machinery
• Brand Name：Mingdao
• Transport Package：by Container or Bulk Ship Based on Principle of Ke
• Specification：Material Q235B,Q345B
• Trademark：Mingdao Brand
• Origin：China
• HS Code：8426193000
• Production Capacity：1000 Set,Sets Per Year

Loading capacity0.25 ~ 20tLifting height3 ~ 10 m or customizedLifting speed

Single speed: 3~ 8 m/min; or customized

Variable frequency speed: 1 ~ 20 m/min; or customized

Span3~10 mLifting mechanismHoist trolleyWorking classA2 ~ A3Working temperature-20 ~ 40 ºCPower supplyAC-3Phase-220//230380/400/415/440V-50/60HzControl voltageDC-24 / 36VMotor protection classIP54 IP55 IP65Control wayGround handle control(Push button),wireless remote controlSafety deviceBuffer, current overload protection,overload device,power failure protectionApplication areaFactory,workshop,warehouse,power station,logistic,etc.Painting colorYellow,Red or Customized



PRODUCT DETAILS

-----------

♦ This product has two operational methods, ground(pendent controller /remote controller) or operational cabin room .

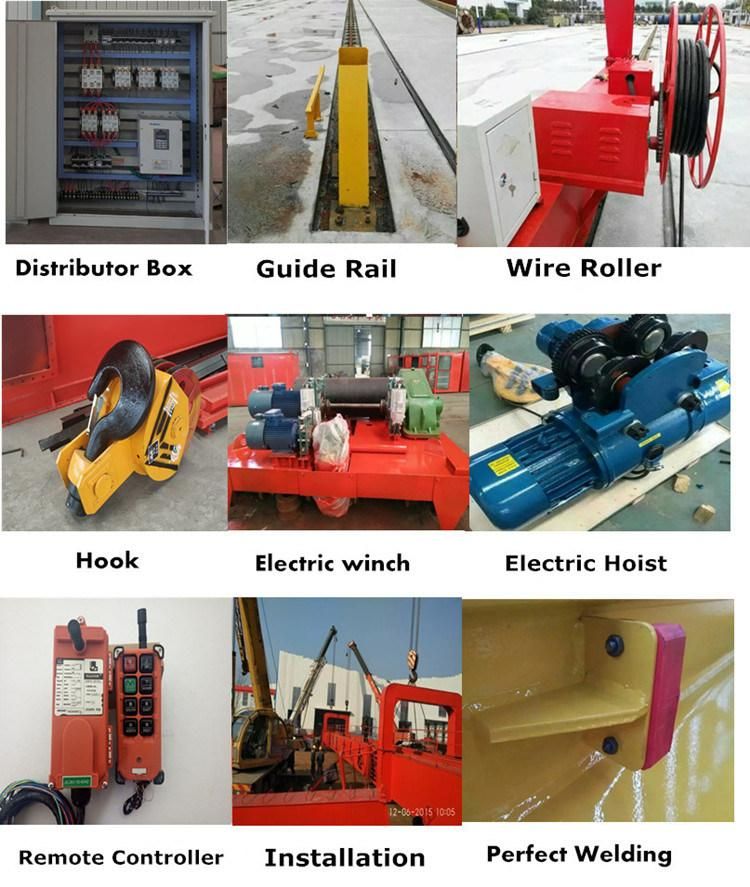

Safety Devices for Gantry Crane:
To guarantee the normal operation of crane and avoid the personal casualty and mechanical damage, the safety device we provide are not only the electric protective devices or alarm bell but also other equipments as following:

1.Overload Limit Switch

2. Rubber Buffers

3.Electric Protective Devices

4.Emergency Stop System

5.Voltage Lower Protection Function

6. Current Overload Protection System

7. Rail Anchoring

8.Lifting Height Limit Device

PRODUCT APPLICATION

-------------

♦ This product is  is widely used in open warehouses, material stocks area, cement plant, granite industry, construction industry, engineering industry, railway station to lifting and load, unloading goods. It is prohibited to use the equipment in the combustible, explosive or corrosive environment(Need explosion proof type for this).

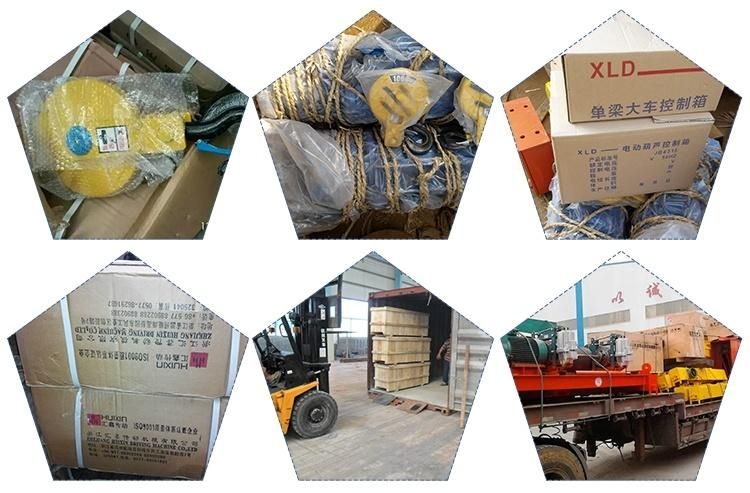

DELIVERY & PACKING



---------------





Shipping way of MD Cranes:

♦ Electric parts are packed by high quality plywood crate, to reduce distortion in conveying.

♦ Main beams, end beams and trolly/winch are packed by plastic woven cloth.It can reduce

Abrasion during the transportation.

♦ If the size are suitable for container ship, usually by container.

♦ Big size, usually by bulk ship or by container after truncation.

♦ Transport ways are based on reducing cost & keep safety.

ABOUT US

-------------

Shandong Mingdao Heavy Industry Machinery Co., Ltd.Is located in Taian City,Shandong Province, China , it is near the China famous Mountain Taish, and also near Kongzi Temple.We are mainly engaged in the design, manufacture,installation and maintenance of single girder cranes(LD Models), Double Girder Cranes (LH,QD etc),gantry cranes(MH,MDG..),Jib cranes(BZ,QZ,MZ etc), variable frequency cranes, Explosion-proof series cranes(LB,QB etc), Cranes with grab bucket,Low headroom monorail Hoist, Electric Winches, scrapers and CD1 MD1 HC Electric Hoist, Hand Chain Hoist etc...

In the past 10 years, we are aiming at China domestic market and become a leading manufacturer in China.Also, with the help of China trading companies we have exported our products to many countries such as Vietnam, Philippines, Sri Lanka, Bangladesh, France, Dubai, Kazakhstan, Russia, Tanzania,Peru , New Zealand ,etc countries .We got 99% good feedback from the overseas customers.Now we are not only aiming at China domestic market growth ,but also to expand the international market with our quality and price advantages.Integrity, quality, customer satisfaction is the pursuit of Mingdao heavy workers!

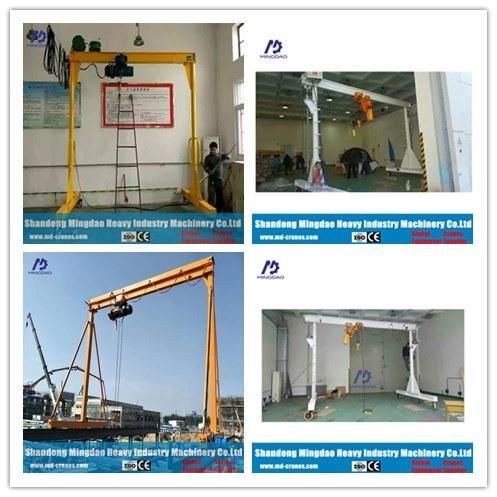

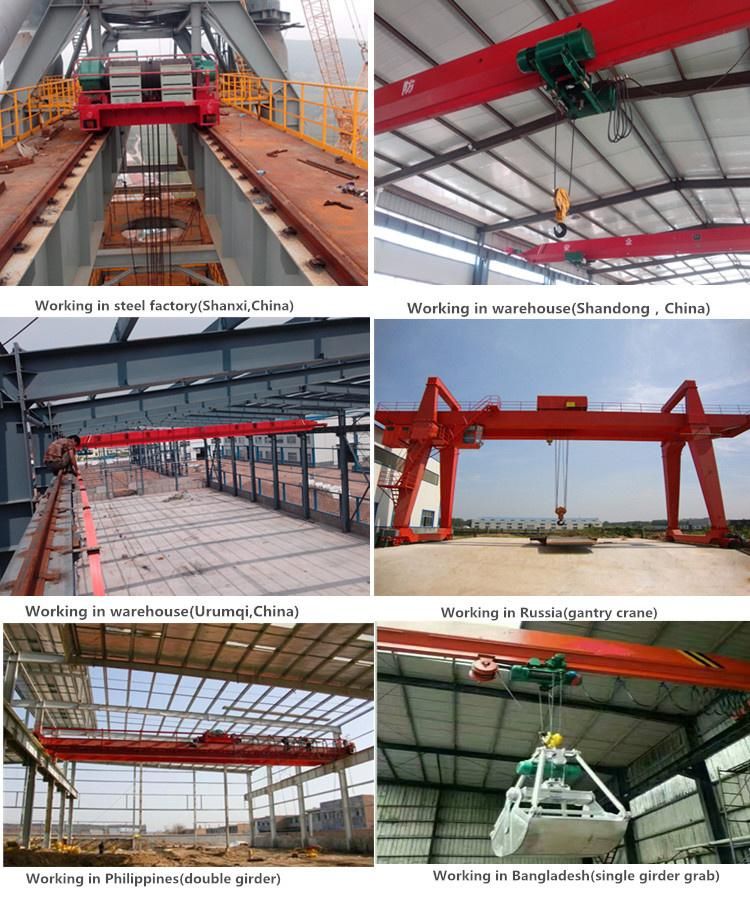

CUSTOMER USE CASE

--------------



FAQ

------------------

Q1.Can the cranes be customized?



Yes,every customer's working condition is different, all of our products can be customized depend on customers' requirements.Please give us the information as clear as you can, so we can give our best design to suit for your demands.



Q2.How many operation methods for my selections?



We provide pendent controller with push button control type, remote control type or cabin control type.Please tell us what kind of operation way you need.



Q3.I have low headroom in my workshop, is it possible to install a crane in it?



We have special products for low headroom workshop, our engineer can give the best design according to your dimensions.



Q4.Do you supply lift tools?



Yes, we can provide any kind of lifting tools such as hook, electromagnetic, grab bucket etc...



Q5:In order to offer the most suitable design solution for you, it will be great helpful if you can offer us the following information to us:



1.Lifting capacity.



2.Span length.(rail center to rail center)



3.Lifting height.(hook center to ground)



4.Have you installed the rails?Do you need us to supply the rails?How long is it?5.Power supply:Voltage.



6.Working condition:What kind of material to lift?Temperature?



7.It would be much better if it is possible for you to offer the drawing photo of your workshop.
