XCMG Telescopic Crawler Crane 100 Ton Xgc100t
Xuzhou Construction Machinery Group Import & Export Co., Ltd.- Max. Lifting Height：71.2m
- Rated Loading Capacity：100t
- Certification：ISO9001
- Condition：New
- Warranty：1 Year
- Rated Lifting Moment：3920kn.M
Base Info
- Model NO.：XGC100T
- Total Mass in Travel State：104600kg
- Min.Ground Clearance：381mm
- Max.Grade Ability：60%
- Transport Package：Comply with Export Packaging Requirements
- Specification：14747*5900*3463mm
- Trademark：XCMG
- Origin：Jiangsu China
- HS Code：87059091
- Production Capacity：10000,Year
Description
Basic Info.
Model NO. XGC100T Total Mass in Travel State 104600kg Min.Ground Clearance 381mm Max.Grade Ability 60% Transport Package Comply with Export Packaging Requirements Specification 14747*5900*3463mm Trademark XCMG Origin Jiangsu China HS Code 87059091 Production Capacity 10000/YearProduct Description
XCMG Telescopic Crawler Crane 100 Ton Xgc100t
XGC100T telescopic boom crawler crane has a maximum rated lifting weight of 100t, six telescopic main booms and a total telescopic main boom length of 56m (12.2-56m), which can meet the requirements of various operating ranges within the arm length range. The retractable self-disassembly caterpillar chassis not only meets the requirement of high stability in hoisting operation, but also meets the requirement of vehicle shape and size in transportation. Mainly used in construction site piling, bridge, tunnel construction, building internal disassembly, ship warehouse operation and other highly restricted and no road surface specific occasions, especially in desert, swamp and other working places, can play its unique advantages.
[Product Parameter]
| Item | Unit | Parameter value |
| Parameter Item | - | XGC100T |
| Dimension | * | |
| Overall length | (mm) | 14747 |
| Overall width(extension/retraction) | (mm) | 5900/3920 |
| Overall height | (mm) | 3463 |
| Central distance from drive roller to drive roller | (mm) | 6425 |
| Track shoe width | (mm) | 900 |
| Weight | * | |
| Total mass in travel state | (kg) | 104600 |
| Travel | * | |
| Max.travel speed with no load | (km/h) | 3.2 |
| Max.travel speed with full load | (km/h) | 1 |
| Min.ground clearance | (mm) | 381 |
| Max.grade ability | (%) | 60 |
| Ground pressure | (MPa) | 0.089 |
| Power | * | |
| Ear noise(dB) | (A) | 80 |
| Engine model | - | QSL8.9 |
| Engine rated output speed | (kw) | 224 |
| Engine rated rotation speed | (r/min) | 1800 |
| Engine emission standard | - | EU Stage IIIA |
| Capacity | * | |
| Hydraulic oil tank | (L) | 1000 |
| Fuel tank | (L) | 600 |
| Main performance | * | |
| Max. rated lifting capacity for boom | (t) | 100 |
| Min.rating range | (m) | 3 |
| Max.load moment-Base boom | (kN·m) | 3920 |
| Max.load moment-Max.length boom | (kN·m) | 1605 |
| Lifting height-Base boom | (m) | 13 |
| Lifting height-Max.length boom | (m) | 55.6 |
| Lifting height-Max.length boom+Jib | (m) | 71.2 |
| Boom length-Base boom | (m) | 12.2 |
| Boom length-Max.length boom | (m) | 56 |
| Boom length-Max.length boom+Jib | (m) | 74.1 |
| Jib offset angle | (°) | 0,15,30 |
| Working Speed | * | |
| Boom raising time | (s) | 70 |
| Boom extension time | (s) | 450 |
| Max.slewing speed | (r/min) | 2.2 |
| Hoisting speed(no load the 4th layer)-Main winch | (m/min) | 140 |

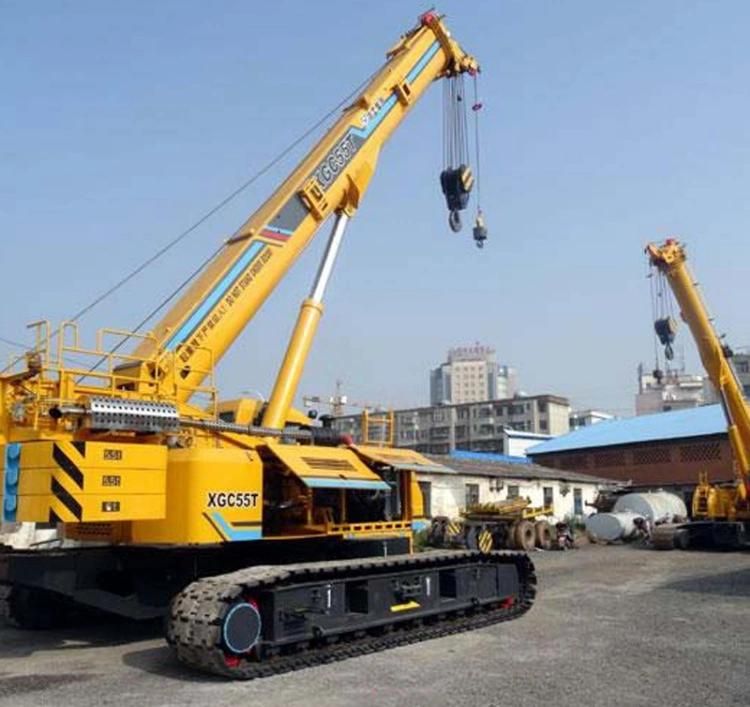

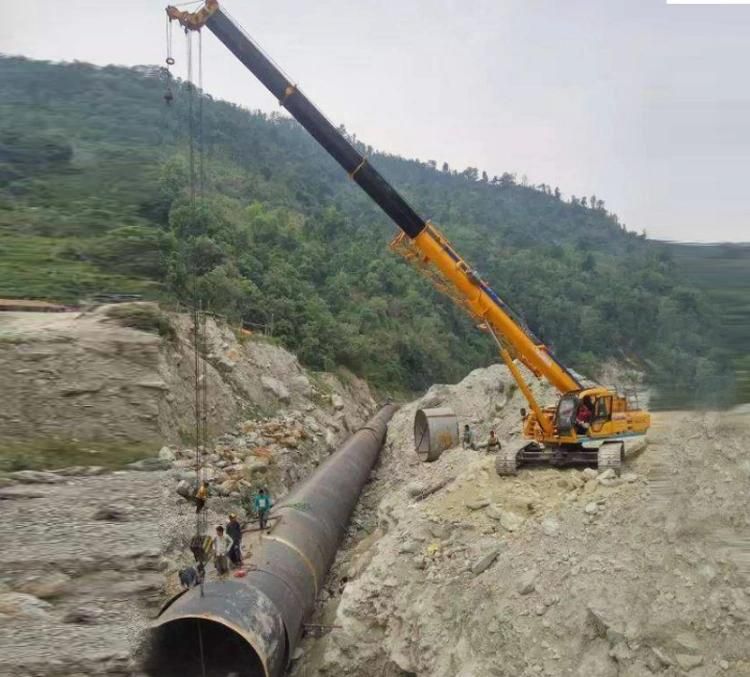

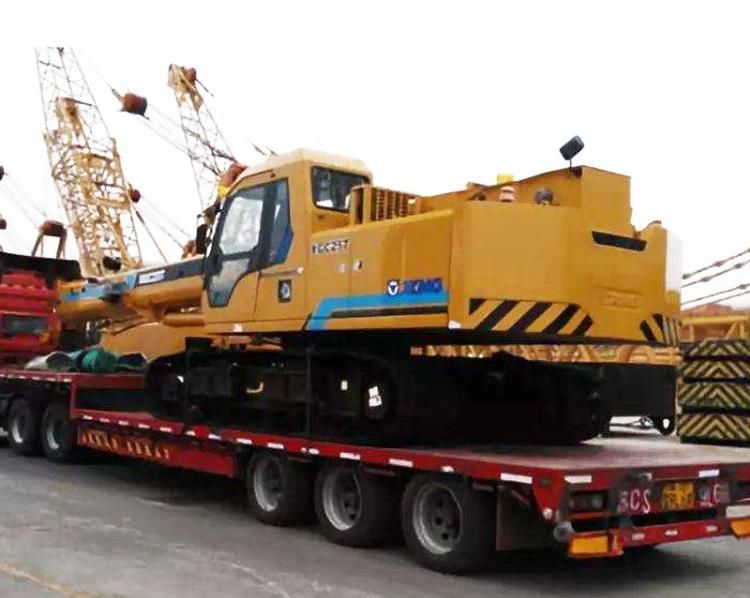

[Product Picture]
