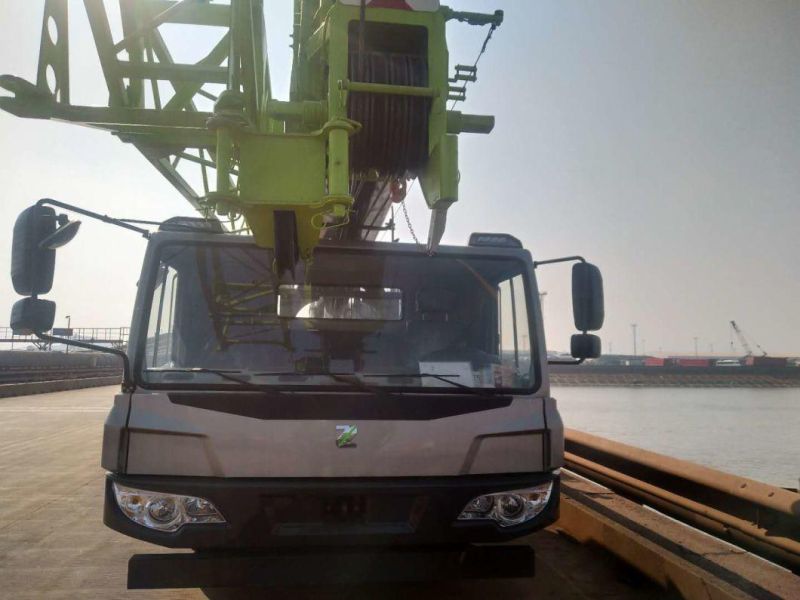

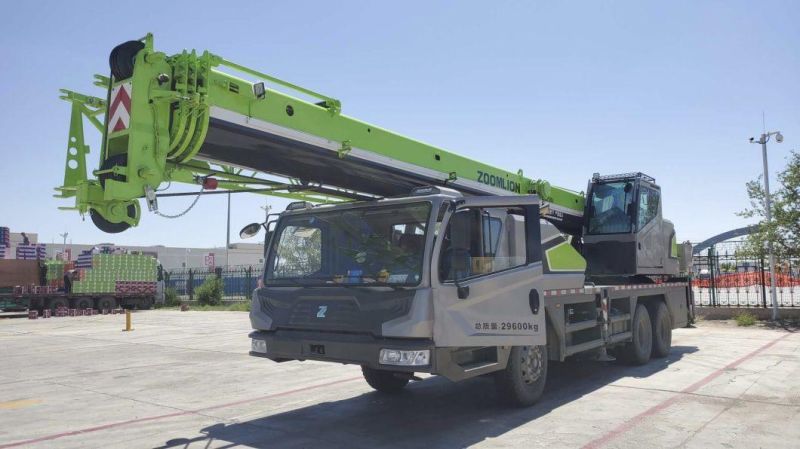

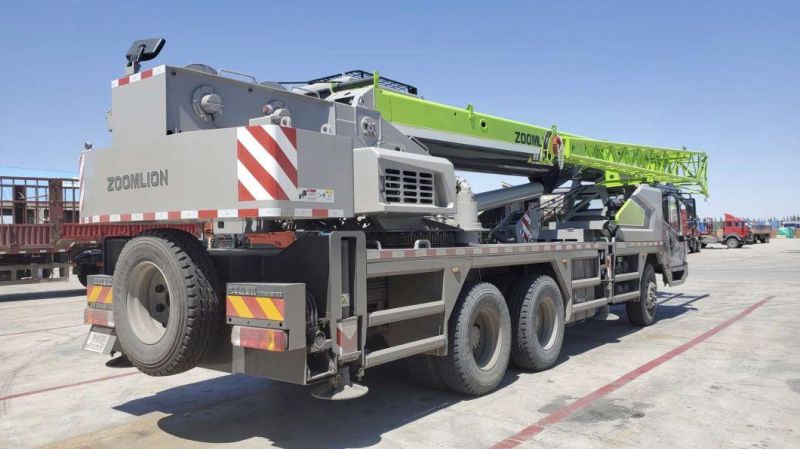

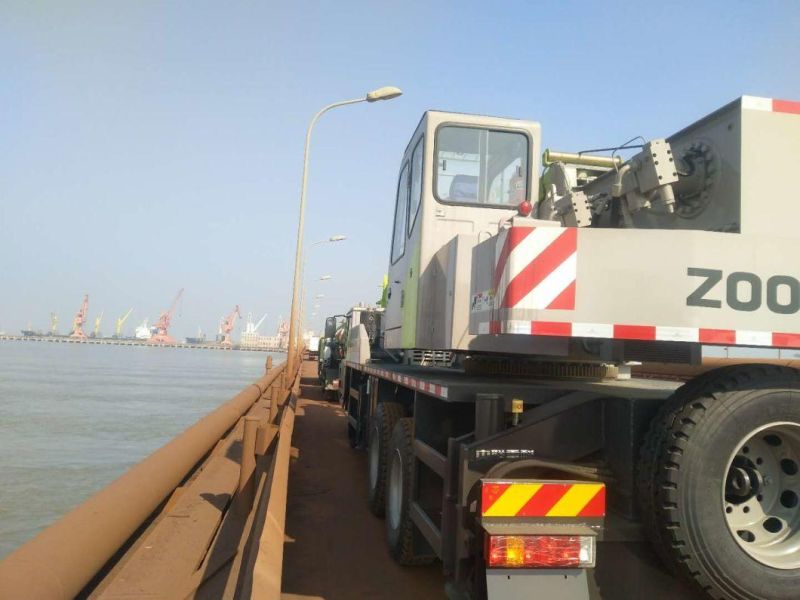

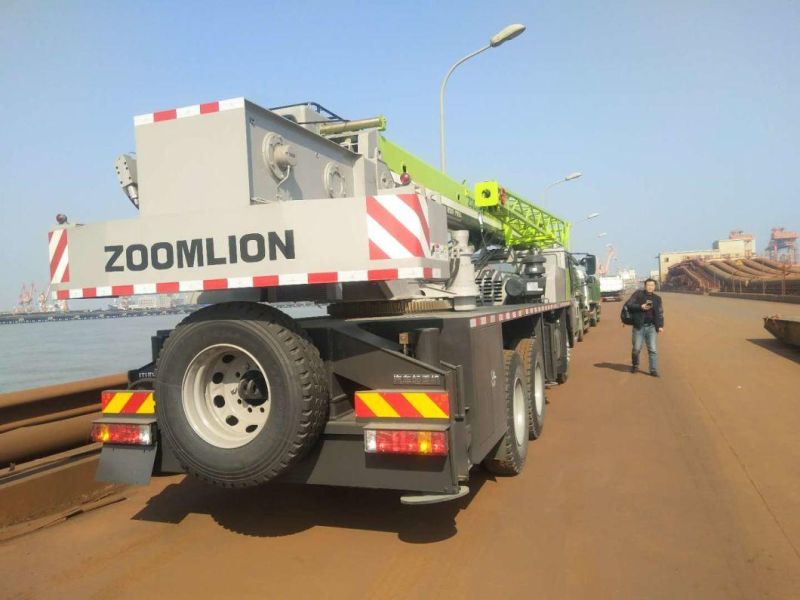

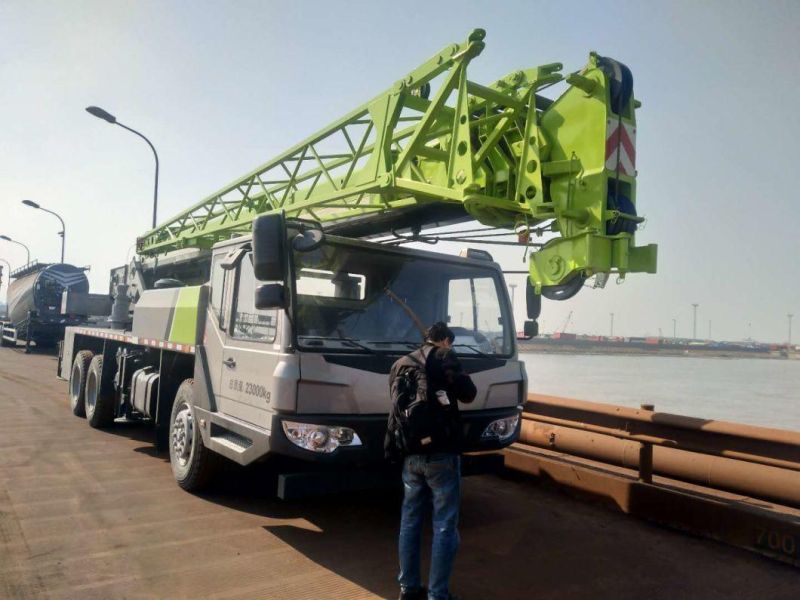

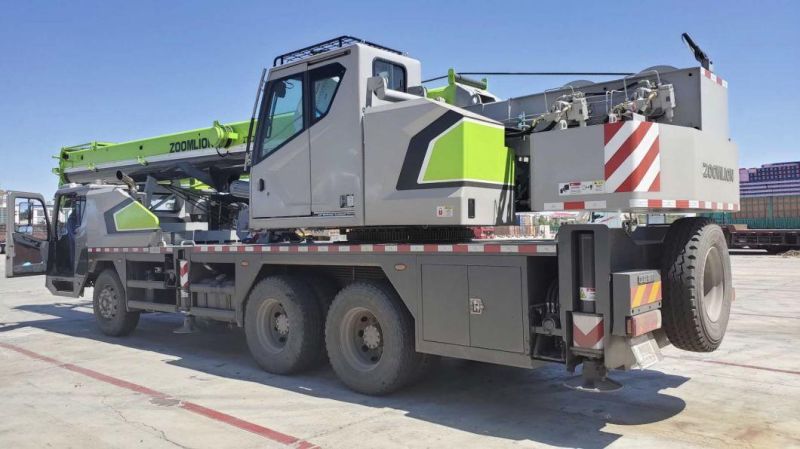

Zoomlion New 25 Ton Mobile Truck Crane with Cheap Price for Sale Qy25V
Sinomada Heavy Industry (Changsha) Co., Ltd.- Certification：GS, RoHS, CE, ISO9001
- Condition：New
- Maximum Lifting Height：41.6m
- Maximum Lifting Weight：25ton
- Shaft Number：3
- Crane Jib：Three-Arm
Base Info
- Model NO.：Qy25V
- Type：Straight Arm
- Transport Package：Nude Package
- Trademark：zoomlion
- Origin：China
- HS Code：842641100
- Production Capacity：5000PCS,Year
Description
Item
Value
Remarks
Working performance specification
Max. rated total lifting capacity
25000kg
Max. load moment of basic boom
980kN.m
Max. load moment with max. main boom
length
573kN.m
Max. lifting height of basic boom
11.5m
Max. lifting height of main boom
33.8m
Deformation of main boom is not taken into consideration.
Max. lifting height of fly jib
41.6m
Working speed
Max. speed of single rope on main winch
120m/min
The 4th layer of drum
Max. speed of single rope onauxiliary winch
105m/min
The 2nd layer of drum
Derricking time of boom
40s
Telescopic time of boom
60s
Slewing speed
0~2.2r/min
Traveling specification
Max. traveling speed
72km/h
Max. gradeability
40%
Min. turning circle diameter
20m
Min. ground clearancem
220m
Limits for exhaust pollutants and smoke
Comply with related standards
GB3847-2005 GB17691 -2005
(Stage III)
Oil consumption per hundred kilometers
46L
Mass specification
Deadweight of crane in traveling condition
28930kg
Complete vehicle kerb mass
28800kg
Front axle load
6300kg
Rear axle load
22630kg
Dimension specification
Overall dimensions(L×W×H)
13000×2500×3450mm
Base on outriggers
5.36m
Distance between outriggers
6.1m
Main boom length
10.5~33.3m
Main boom angle
-2~80°
Fly jib length
8m
Offset angle of fly jib
0 , 30°
Chassis
Model
ZLJ5314
Class
II
Feature No.
ZLJ5314D3.1
Engine
Model
WP10.270
Rated power
199/2200kW/r/min
Max. output torque
1100/1200~1600N.m/r/min
