Sinotruk HOWO 8X4 380HP 18tons 20ton Straight Boom Mounted Crane Truck for Sale
Hubei Manten Automobile Co., Ltd.- After-sales Service：24hours on-Line Service
- Warranty：12months
- Certification：CE, ISO9001
- Condition：New
- Maximum Lifting Height：30-40m
- Maximum Lifting Weight：>16t
Base Info
- Model NO.：MT5314215
- Shaft Number：44
- Crane Jib：Five-Arm
- Type：Straight Arm
- Model：HOWO Truck Counted Crane
- Power：Diesel
- Drive Type：8*4 6*4 4*2
- Tire Type：12.00r22.5
- Load Capacity：18tons 20ton
- Application：Construction Usage
- Boom Type：Stright Type, Foldable Boom
- Truck Engine：336HP 371HP 380HP 420HP
- Landing Legs：4 Legs Keep Balance
- Cargo Loading Weight：25tons - 30tons
- Transport Package：Nude Package or According to Your Requests
- Specification：CE, ISO9001: 2000
- Trademark：MANTEN Sinotruk HOWO
- Origin：China
- HS Code：8704223000
- Production Capacity：300 Units,Month for 12ton Truck with Crane
Description

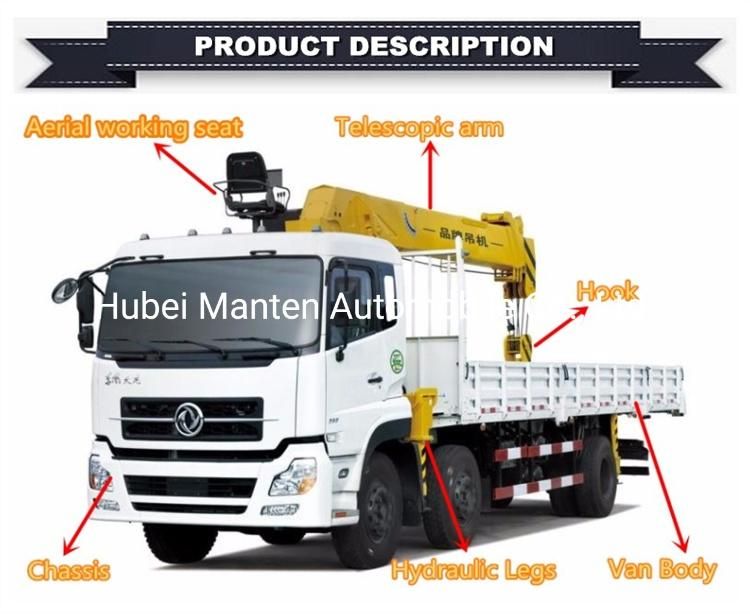

Operation mode of truck mounted crane: left-right two-way operation, rotation angle: ± 360 degrees, continuous rotation, and the hand throttle can adjust the rotation speed and lifting speed. Quality production is adopted, with reliable quality, long service life and fast working speed. It adopts high-quality oil cylinder seal, which is durable and made of high-strength steel plate, with lighter weight and larger lifting weight. It is widely used in various loading, unloading, installation and lifting operations, especially for field lifting, rescue operations and operations in narrow places such as stations, ports, warehouses and construction sites. The domestic well-known crane and hydraulic pump system are adopted, and the cargo box or crane with different length and tonnage can be selected according to the needs of users. It has high power, high speed, strong climbing ability, high lifting height and large operation range. It can realize rapid lifting, high efficiency and energy saving. It has the advantages of flexibility, convenience, high efficiency, safety and reliability.The folding arm truck mounted crane is generally used together with the crane, which is mainly used for transportation and handling goods. A truck mounted crane is mainly composed of jib, turntable, frame, outrigger and other parts. The structure of folding arm truck mounted crane is mainly 1 Hook 2 Boom assembly 3 Folding hydraulic cylinder 4 Main boom 5 Connecting rod 6 Column 7 Luffing hydraulic cylinder 8 Rotary hydraulic cylinder 9 Beam group 10 Outrigger mechanism and control system. The combination of the two realizes the operation of the truck mounted crane through the actions of luffing, telescopic, slewing, winch and other mechanisms, and realizes the lifting operation through the combination of different actions. It has the advantages of fast, flexible, efficient and convenient, as well as the combination of loading, unloading and transportation. The folding arm truck mounted crane is usually composed of two parts (the structure of small tonnage truck mounted crane is simple and different). The main boom and boom are connected with the folding hydraulic cylinder through the rotating shaft. The folding hydraulic cylinder of 12 ton truck mounted crane is used to make the boom rotate around the main boom. The boom is usually composed of fixed arm and several telescopic arms. It is composed of two parts, so the boom is short, the stroke of the corresponding hydraulic cylinder is short, and the processing difficulty is small. The telescopic hydraulic cylinder of the boom is installed outside the boom, which is easy to repair in case of failure (such as oil leakage at the hydraulic cylinder joint, etc.). When the luffing hydraulic cylinder piston rod retracts, the luffing hydraulic cylinder piston rod rotates clockwise with the vehicle boom, the hook drops, the heavy object is lifted, the luffing hydraulic cylinder piston rod extends, the boom rotates counterclockwise, and the heavy object is lifted. The half folding arm truck mounted crane is a kind of folding arm truck mounted crane, which also works through full hydraulic pressure. The difference from the general folding arm truck mounted crane is that the first and second luffing cylinders are on the same plane, so that the distortion and deformation of structural parts will not be caused during weight lifting. In this way, it can be designed and produced in the direction of larger tonnage truck mounted crane.

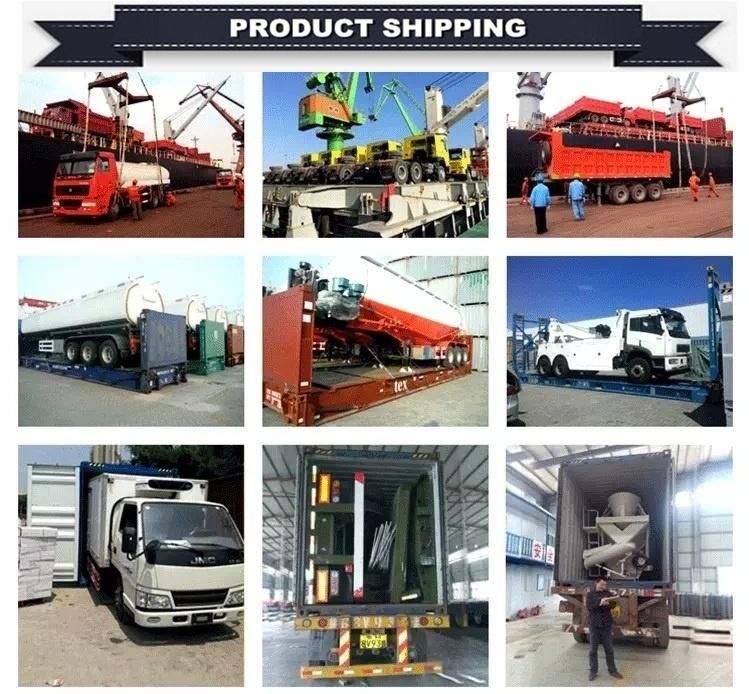

» VI. SHIPPMENT
» VII. ABOUT US

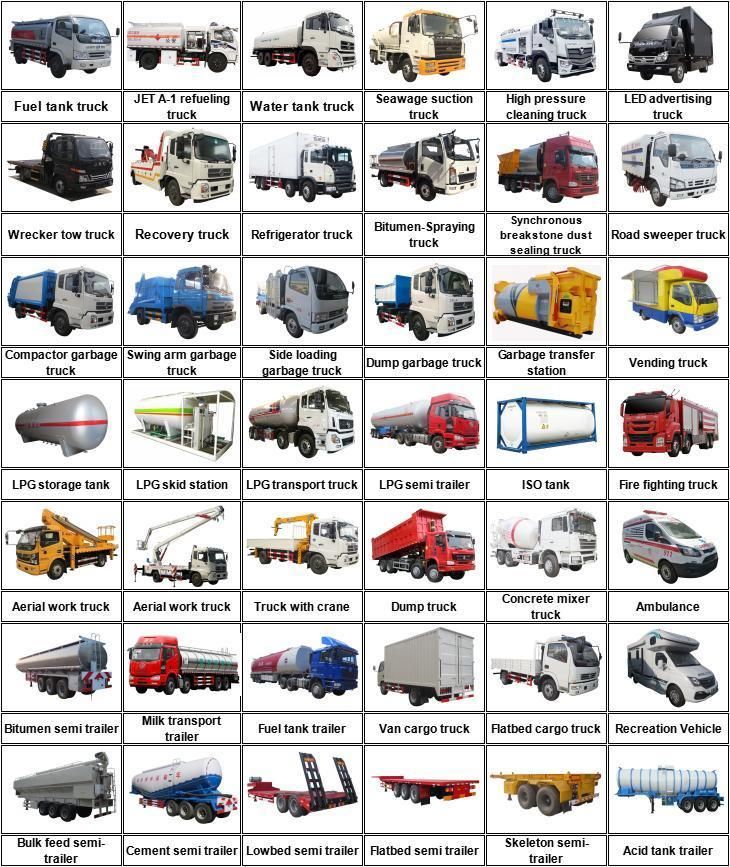

HUBEI MANTEN AUTOMOBILE CO.,LTD is an authorized special truck manufacturer which has many years in design ,product ,sales and service in special trucks like as boom truck , fire truck, manlift truck, tank truck , garbage truck, tipper truck , wrecker truck , refrigerated truck and etc. Main info as below:
(1) More than 500 workers, large and advanced production;
(2) 25 professional engineers, can offer the best and cheapest design;
(3) Build strict QC team to guarantee the quality;
(4) 1 year or 30,000km warranty which comes first.
(5) One set of spare parts of chassis provided which will help you save money on maintenance.
(6) Provide technical support and after serive for life.
(7) Professional sales team which will help you to choose suitable truck.
» VII. FAQ
Why choose us?
Experience
10 years experience of production,sales,research and development in the field of special trucks.
Specialization
We can produce according to your demand, the material,the size, the color and the logo is optional for you.
Good quality
Has solid technology, advanced equipments;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with sgs,bv certifcate as well.
Chassis supply
We have a very good long term cooperation relationship with chassis manufacturer,such as dongfeng,foton,sinotruck,shacman,faw,hino,camc,north-benz,ect.
Production supply capacity
Company scale

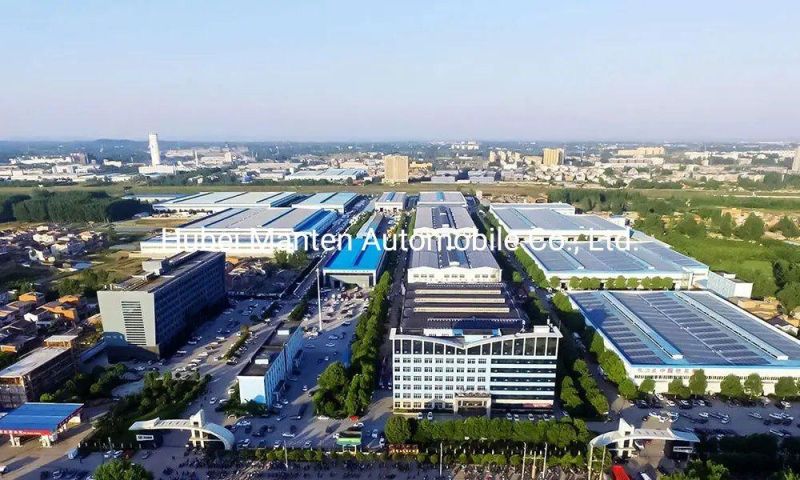

More than 3000 employees with 1000 acres factory, total asset 2 billion.
We manufacture the truck as soon as possible once your order confirmed.And for the stock, we can delivery it immediately.
