• Model NO.：LDC
• Maximum Lifting Weight：20-50t
• Main Girder Form：Double Girder
• Type：Ordinary

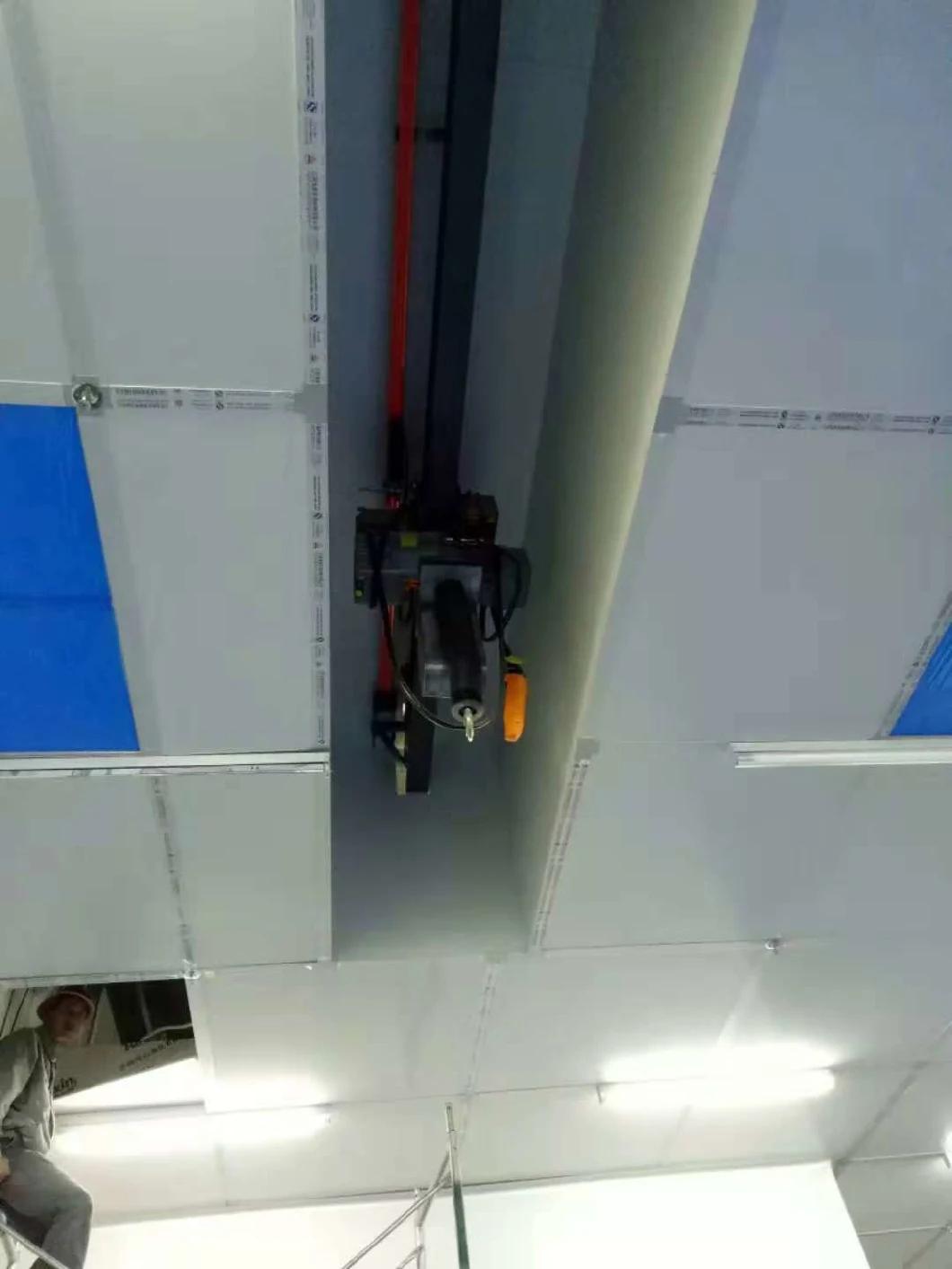

• Product Name：Clean Room Overhead Crane
• Span：7.5-22.5 or Assigned
• Color：on Request
• Overseas Installation：Available
• Power Source：380V 3pH 50Hz
• Work Duty：A3-A5
• Application：Warehouse Workshop Hoist
• Production Time：10-15 Days
• Running Type：Rails
• Power Supply：380V 50Hz 3p
• Girder Type：Double Girder Single Girder
• Manufacture：Mingdao
• Co：China
• Control Method：Pedent Button or Remote Control or Cabin
• Transport Package：Container or Bulk Ship
• Specification：Customized type
• Trademark：MD
• Origin：China
• HS Code：8426112000
• Production Capacity：1000sets, Year

Main Parameters ListCrane Traveling MechanismTraveling Speed(m/min)20304560Ratio58.9539.4226.5119.44MotorTypeCone Squirrel-cageCone Squirrel-cagePower(kw)0.8*2, 1.5*2, 2.2*21.5*2, 2.1*2Rotary Speed(r/min)13801350Hoist Lifting Mechanism and Traveling MechanismElectric Hoist ModelMD1CD1Lifting Speed(m/min)8/0.8, 7/0.7, 3.5/0.358, 7, 3.5Span(m)7.5-22.5 or assignedLifting Capacity(t)0.5-32Lifting Height(m)6, 9, 12, 18, 24, 30Traveling Speed(m/min)20, 30MotorCone Squirrel-cageWork DutyIntermediate Jc=25%Power Supply380V 50HZ 3PWheel DiameterΦ270, Φ400Trail Width37-70




Safety Devices for overhead bridge crane:

To guarantee the normal operation of crane and avoid the personal casualty and mechanical damage, the safety device we
provide are not only the electric protective devices or alarm bell but also other
equipments as following:
1.Overload Limit Switch
2. Rubber Buffers
3.Electric Protective Devices
4.Emergency Stop System
5.Voltage Lower Protection Function
6. Current Overload Protection System
7. Rail Anchoring
8.Lifting Height Limit Device
Company:

FAQ ABOUT MINGDAO CRANES:

1.Can the cranes be customized?
Yes,every customer's working condition is different, all of our products can be customized depend on customers' requirements.
Please give us the information as clear as you can, so we can give our best design to suit for your demands.

2.How many operation methods for my selections?
We provide pendent controller with push button control type, remote control type or cabin control type.Please tell us what kind
of operation way you need.

3.I have low headroom in my workshop, is it possible to install a crane in it?
We have special products for low headroom workshop, our engineer can give the best design according to your dimensions.

4.Do you supply lift tools?
Yes, we can provide any kind of lifting tools such as hook, electromagnetic, grab bucket etc...

5.In order to offer the most suitable design solution for you, it will be great helpful if you can offer us the following information to us:
1. Lifting capacity.
2. Span length.(rail center to rail center)
3. Lifting height.(hook center to ground)
4. Have you installed the rails? Do you need us to supply the rails? How long is it?
5. Power supply: Voltage.
6. Working condition: what kind of material to lift? temperature?
7. It would be much better if it is possible for you to offer the drawing photo of your workshop.

FAQ

1. What is the lifting capacity?
2. Span length.(rail center to rail center)?
3. Lifting height.(hook center to ground)?
4. Have you installed the rails? Do you need us to supply the rails? How long is it?
5. Power supply: Voltage/phase/hz?
6. Working condition: what kind of material to lift? temperature?
7. It would be much better if it is possible for you to offer the drawing photo of your workshop.
