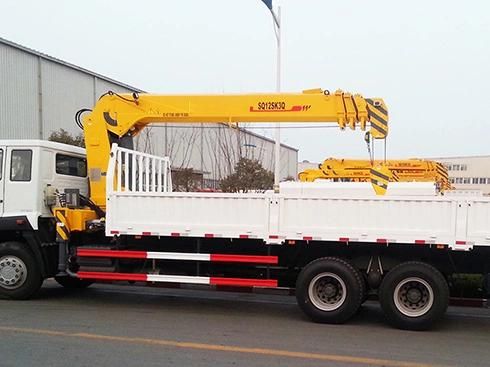

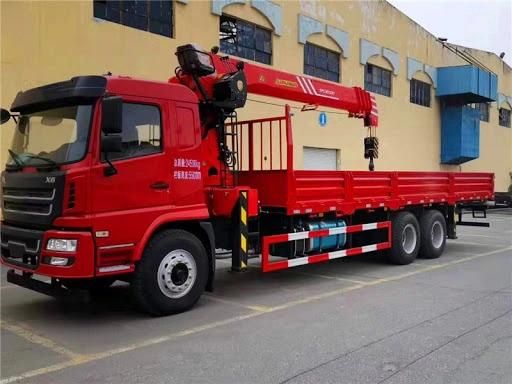

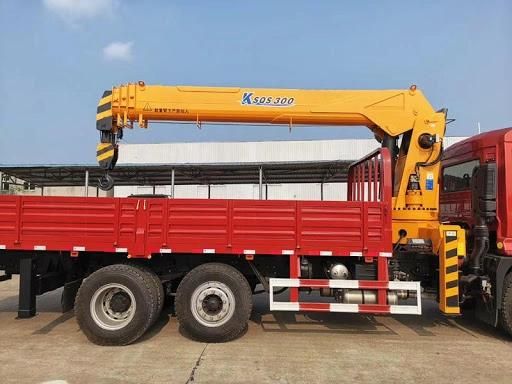

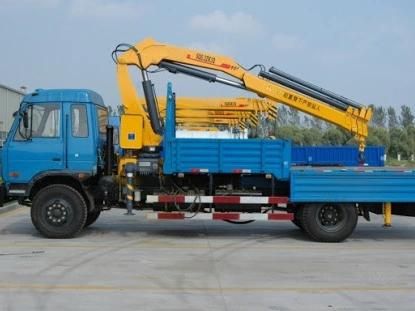

2022 New Loader Crane Model 20ton Truck Mounted Crane
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：1 Year
- Warranty：1 Year
- Certification：CE, ISO9001
- Condition：New
- Maximum Lifting Height：30-40m
- Maximum Lifting Weight：>16t
Base Info
- Model NO.：GSQS200-4
- Shaft Number：2
- Crane Jib：Three-Arm
- Type：Folding
- Max.Lifting Capacity：17500kg
- Transport Package：Nude
- Specification：17Ton
- Trademark：SINOMADA
- Origin：China
- HS Code：8429521200
- Production Capacity：500,Month
Description
Product Description
Comprehensive optimization of hydraulic system make workefficiency and energy consumption more lower.
Single cylinder synchronous telescoping organization isupgraded comprehensively with higher reliability.
Boom length creates the new record ofindustry.
Automatic hook - in technology, save operationtime and inventory space, maximize user value.
| Item | Unit | Parameter |
| Max.Lifting Capacity | kg.m | 20000 |
| Max. Working Height | m | 16.7 |
| Max. Working Radius | m | 14.5 |
| Rated Load | kg/m | 13000/2.2,5700/5.23,2800/8.65,1950/12.07,1300/15.5 |
| Rated Oil Flow Volume | L/min | 63+40 |
| Oil Pressure | kg/cm² | 260 |
| Oil Tank Gapacity | L | 200L |
| Boom Type /Sections | - | 4 |
| Boom Extending Speed | m/s | 10.28/28 |
| Boom Undulation Speed | deg/s | 0-75/21 |
| Wire Rope Winch Speed | - | / |
| Swing Angle | - | 360° |
| Swing Speed | rpm | 1.7 |
