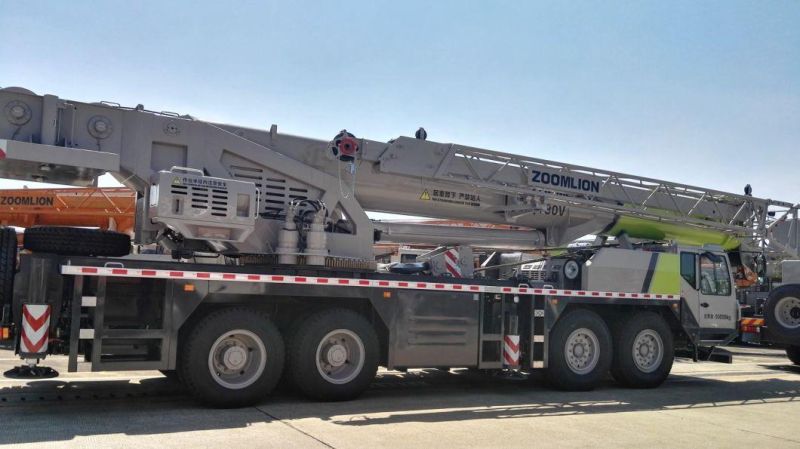

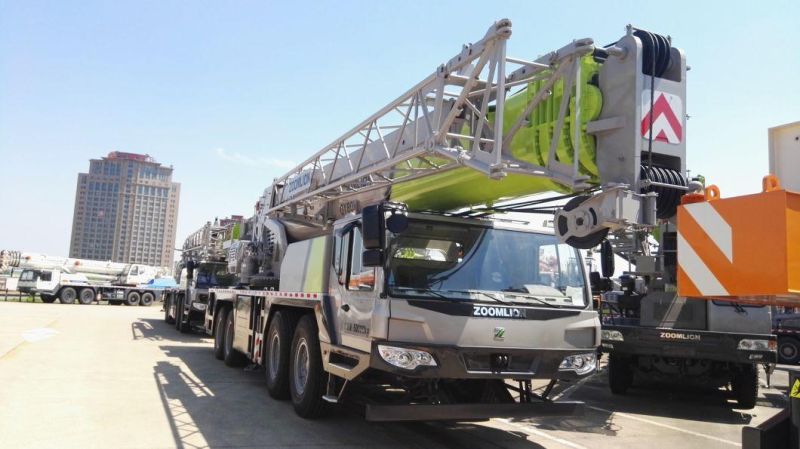

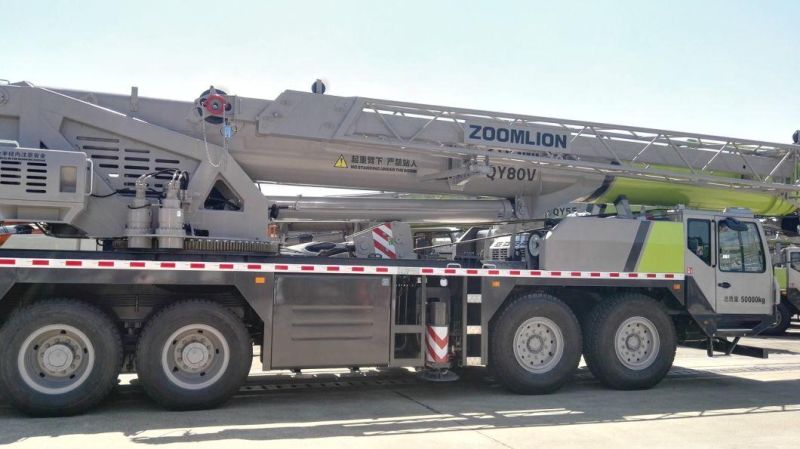

Zoomlion 110 Ton Hydraulic Mobile Truck Crane Zat1100V753 for Hot Sale
Sinomada Heavy Industry (Changsha) Co., Ltd.- Certification：CE, ISO9001
- Condition：New
- Maximum Lifting Height：>40m
- Maximum Lifting Weight：>16t
- Shaft Number：4
- Crane Jib：Three-Arm
Base Info
- Model NO.：ZAT1100V753
- Type：Straight Arm
- Transport Package：Nude
- Specification：13700*2800*3650mm
- Trademark：Zoomlion
- Origin：Hunan, China
- HS Code：87051091
- Production Capacity：100units,Month
Description
Working performance
1
Max. rated lifting weight × working radius
kg.m
110000×3.0
2
Max. lifting torque of basic boom
kN.m
4400
3
Max. lifting torque of longest main boom
kN.m
1880
4
Max. lifting height of longest main boom
m
58.5
5
Max. lifting height of jib
m
77/(85)
Dimensions
6
Outline dimensions (L×W×H)
mm
14690×3000×3890
7
Distance between outriggers (longitudinal × transversal)
mm
7670×7800
8
Main boom length (completely retracted - completely extended)
m
12.8~57.5
9
Jib length
m
11,18.6,(26.6)
10
Main boom angle of elevation
°
-1.5~82
11
Swing range
360°continuously
Working speed
12
Max.speed of single rope on the drum of main winch
m/min
115
13
Boom extension time
s
600
14
Boom derricking up time
s
80
15
Swing speed
r/min
0~1.5
Mass
16
Complete vehicle kerb mass
kg
54705
17
Front axle load
kg
19900
18
Rear axle load
kg
35000
Traveling
19
Max. traveling speed
km/h
78
20
Max. gradeability
%
40
21
Min. turn radius
m
11.5
22
Min. ground clearance
mm
280
