• Model NO.：MH
• Type：Common Gantry Crane
• Main Girder Form：Single Girder
• Product Name：Single Girder Gantry Crane
• Power Source：220V,380V,415V or on Request
• Color：Industrial Yellow,Red or on Request
• Girder Type：Box Type , Truss Type
• Insulation：F
• Moving Type：Rail Mounted
• Power Supply Type：Cable Reel
• Application：Widely Applied for Indoor and Outdoor Workplaces
• Aftersale Service：Engineer Overseas Service Available
• Electric Parts：Siemens Delixi Chnt
• Hoist Type：Rope Hoist , Chain Hoist on Request
• Work Duty：A3-A5
• Lift Capacity：on Request
• Motor：Gear Motor
• Transport Package：Standard Package for Ocean Shipping or Railway
• Specification：Materials: Q235B,Q345B
• Trademark：Mingdao
• Origin：China
• HS Code：8426193000
• Production Capacity：1000sets, Year

Main Parameters ListCrane Traveling MechanismTraveling Speed(m/min)20MotorTypeCone Squirrel-cagePower(kw)ZDY21-4/0.8X2Hoist Lifting Mechanism and Traveling MechanismElectric Hoist ModelCD1,MD1,HCLifting Speed(m/min)8 0.8/8Span(m)12-30Lifting Capacity(t)3-32TonLifting Height(m)6,9Traveling Speed(m/min)20MotorCone Squirrel-cageWork DutyIntermediate Jc=25%Power Supply380V 50Hz 3PWheel DiameterΦ270 Φ400ReducerZSC650 ,LD

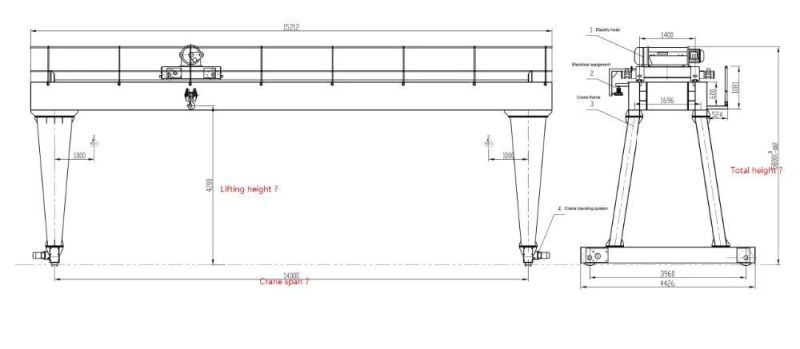

It is composed of beam, support legs, crane travelling mechanism, trolley, electric equipment and so on.

It has box type and trussed type, box type has characteristic of slim body and strong lifting capacity;Trussed type has
Characteristic of small windward surface, small self weight and strong lifting capacity.

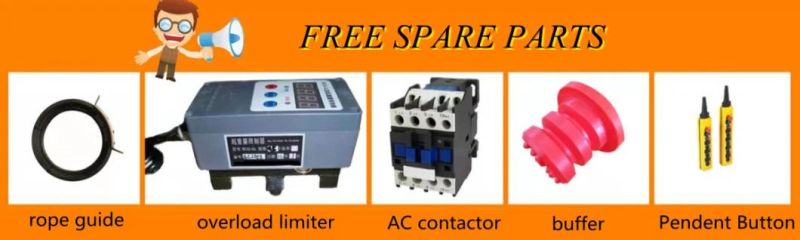

Free spare parts

BOX TYPE  Gantry Crane
Control method:Pendent button control / radio remote control
Safety Devices for MH Gantry crane:
To guarantee the normal operation of crane and avoid the personal casualty and mechanical damage, the safety device we provide are not only the electric protective devices or alarm bell but also other equipments as following:

1.Overload Limit Switch
2.Rubber Buffers
3.Electric Protective Devices
4.Emergency Stop System
5.Voltage Lower Protection Function
6.Current Overload Protection System
7.Rail Anchoring
8.Lifting Height Limit Device

CUSTOMER FEEDBACK

Customer visiting factory,

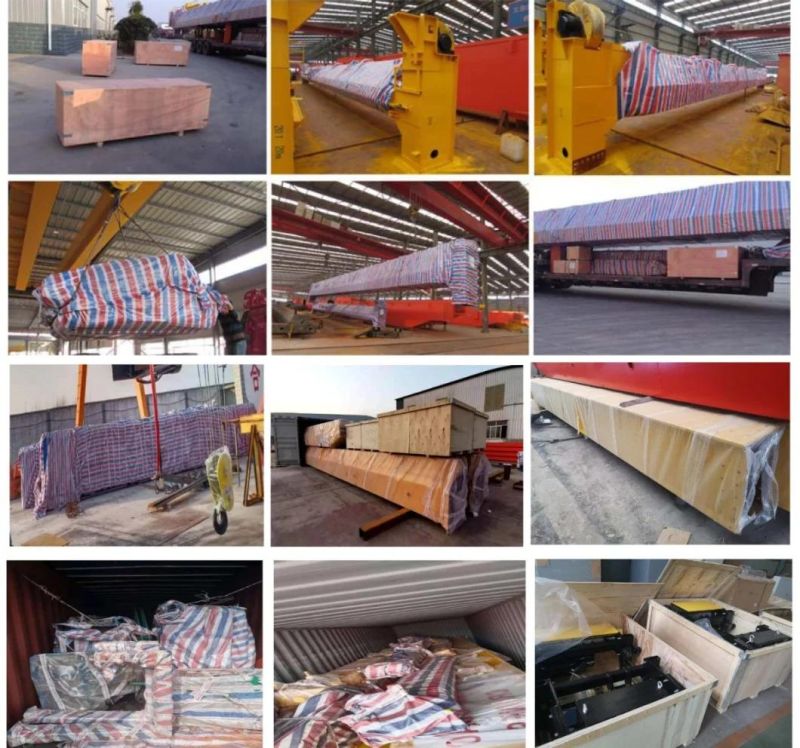

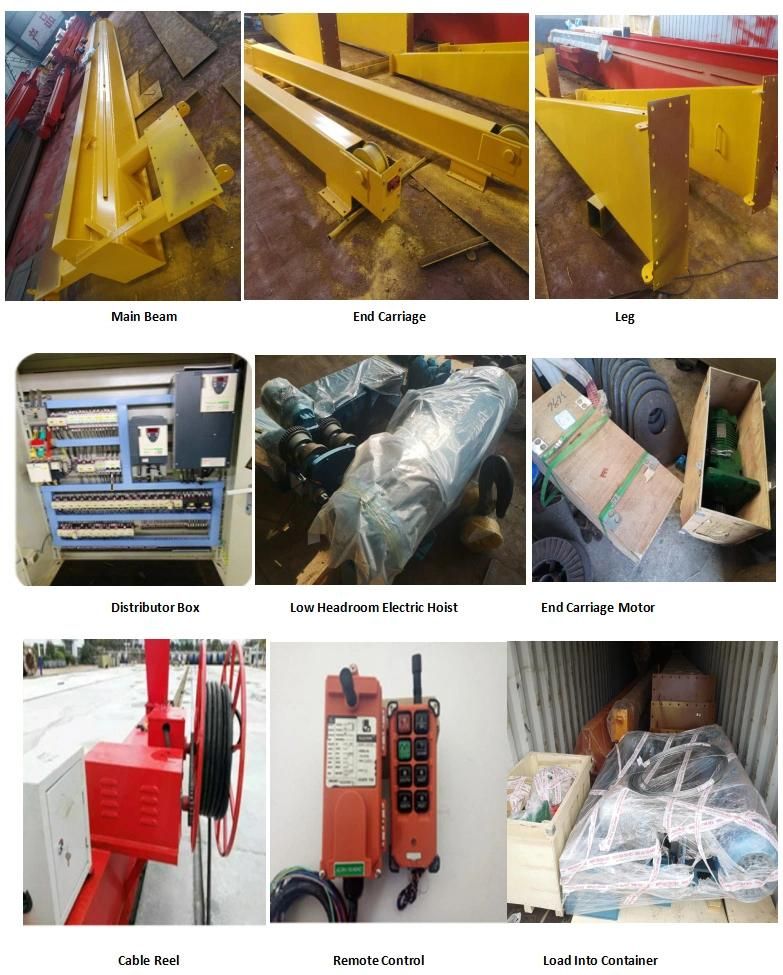

PACKING & DELIVERY




FAQ

Q1.Can the cranes be customized?
Yes,every customer's working condition is different, all of our products can be customized depend on customers' requirements.Please give us
the informationas clear as you can, so we can give our best design to suit for your demands.

Q2.How many operation methods for my selections?
We provide pendent controller with push button control type, remote control type or cabin control type.Please tell us what kind of operation way
you need.

Q3.I have low headroom in my workshop, is it possible to install a crane in it?
We have special products for low headroom workshop, our engineer can give the best design according to your dimensions.

Q4.Do you supply lift tools?
Yes, we can provide any kind of lifting tools such as hook, electromagnetic, grab bucket etc...

Q5:In order to offer the most suitable design solution for you, it will be great helpful if you can offer us the following information to us:
1.Lifting capacity.

2.Span length.(rail center to rail center)

3.Lifting height.(hook center to ground)

4.Have you installed the rails?Do you need us to supply the rails?How long is it?5.Power supply:Voltage.

6.Working condition:What kind of material to lift?Temperature?

7.It would be much better if it is possible for you to offer the drawing photo of your workshop.

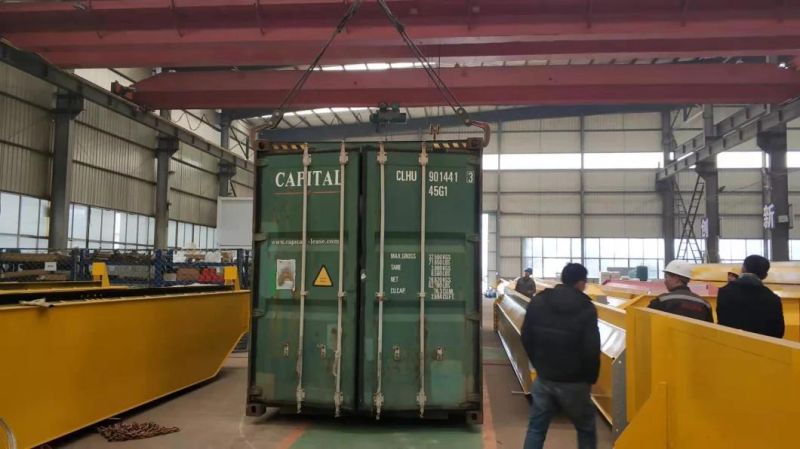

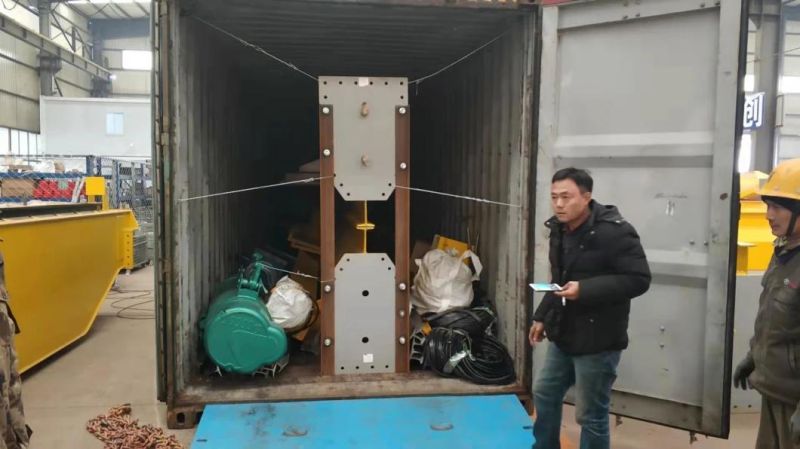

Container Loading:



Company Introduction:

We are a member of China Lifting Industry Association, safety-recognized enterprise, national crane machinery designated production organizations, we have
obtained mechanical engineering "design certificate", and the national issued crane "manufacturing permit",installation and maintenance, renovation and
maintenance of the "License" and so on.

In the past 10 years, we are aiming at China domestic market and become a leading manufacturer in China.Also, with the help of China trading companies  we
have exported our products to many countries such as Vietnam, Philippines, Sri Lanka, Bangladesh, France, Dubai, Kazakhstan, Russia, Tanzania ,Peru ,
Newzealand,etc countries .We got 99% good feedback from the overseas customers.

Now we are not only aiming at China domestic market growth ,but also to expand the international market with our quality and price advantages.Send us an
inquiry now.

The company has six functional departments, including R&D department, sales department, materials supply department, production department, QC department,
after-sales department.There are 16 workshops including electrical, riveting, forging, assembly, heat treatment, machining and maintenance.

Our company produces various lifting equipment and loading and unloading.The equipment is 30,000 tons and the sales income is 360 million yuan.18 offices and
76 sales and service agencies in power plants, industrial and mining enterprises, and port terminals.

Integrity, quality, customer satisfaction is the pursuit of Mingdao heavy workers!
