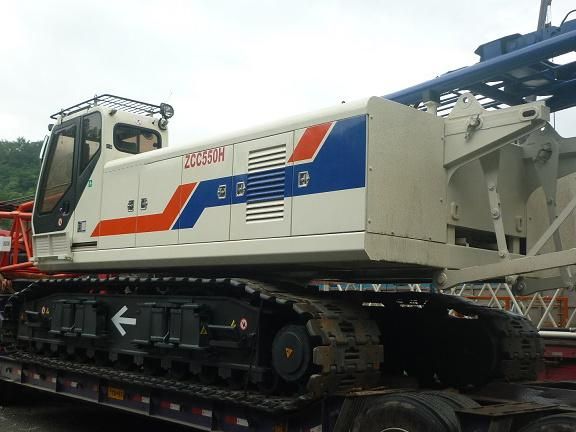

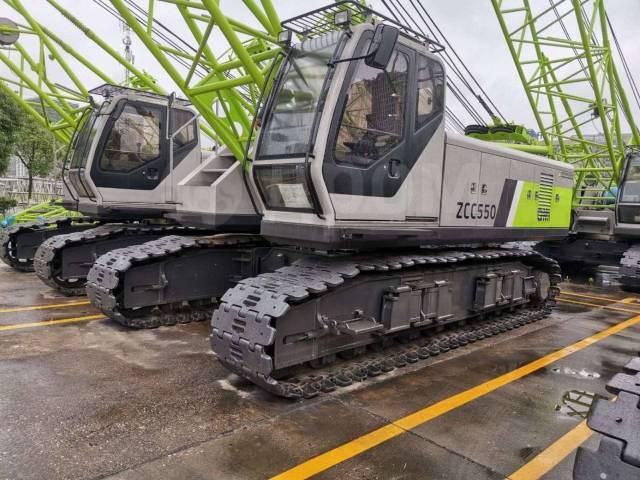

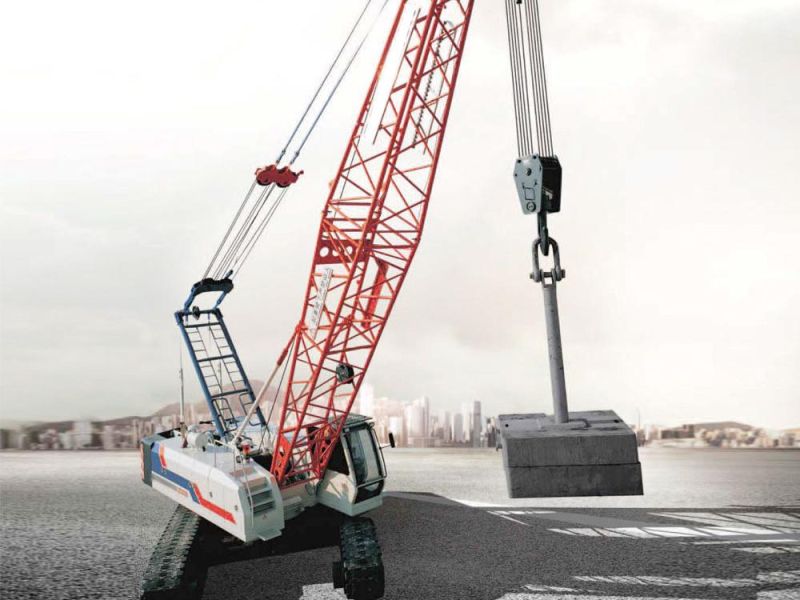

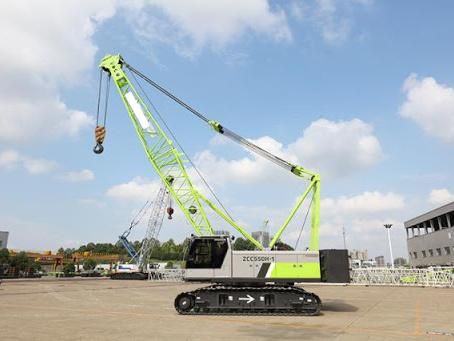

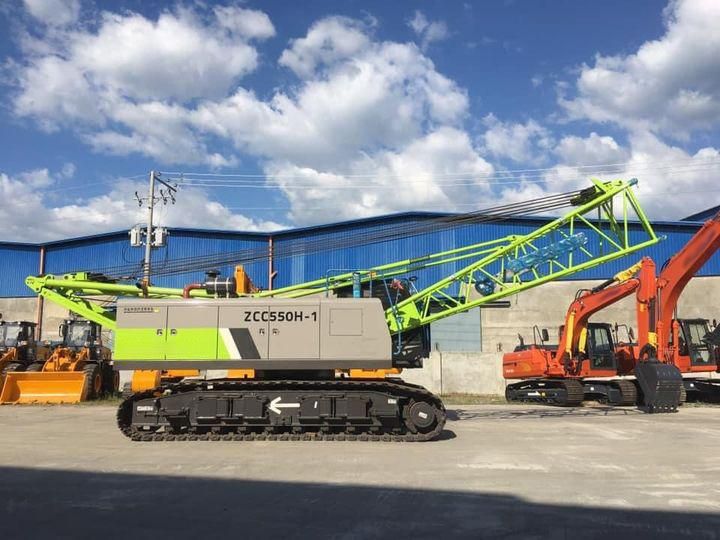

China Top Brand Lattice Boom Crawler Crane Zcc550h for Promotion
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：Any
- Max. Lifting Height：44m
- Rated Loading Capacity：55ton
- Certification：ISO9001, CE
- Condition：New
- Warranty：1 Year Warranty
Base Info
- Model NO.：ZCC550H
- Max.Lifting Capacity：55t
- Radius：3.7m
- Max. Lifting Capacity on Fixed JibTh：5.5t
- Max. Lifting Capacity of Luffing Jib：12t
- Main Boom Length：13-52m
- Fixed Jib Length：6-15m
- Max. Length of Main Boom with Fixed J：43+15t
- Luffing Jib Length：16m-28m
- Max. Main Boom +Max. Luffing Jib：40mm+28mm
- Derricking Angle：30-80
- Fixed Jib Angle：10,30
- Transport Package：Cartons
- Trademark：top brand
- Origin：China
- HS Code：8429521200
- Production Capacity：500000
Description
Max. lifting capacity × radiust × m 55×3.7 Max. lifting capacity on fixed jib t 5.5 Max. lifting capacity of luffing jib t 12 Main boom length m 13 - 52 Fixed jib length m 6 - 15 Max. length of main boom with fixed jib t 43+15 Luffing jib length m 16m-28m Max. main boom +max. luffing jib m 40mm+28mm Derricking angle . 30 - 80 Fixed jib angle . 10,30 Max. rope speed of winches Hoisting winch 1 m/min 125/100 With optional free-fall function Hoisting winch 2 125 Derricking winch 80 Slewing speed rpm Traveling speed km/h 0-1.6 Max. gradeability % 30 With basic boom and counterweight over front Ground pressure Mpa 0.068 Deadweight t 50.5 With basic boom Crane counterweight t 17.5 Overall dimensions(L × W × H) m 12800×4600(3300)×3120 With A-frame and main boom pivot section Engine Model WP6G190E26 Manufacturer:Weichai Power CO, Ltd. Rated power / rotational speed kW/r/min 140/1900 Max. output torque /rotational speed Nm/r/min 830/1300 Exhaust emission National Stage Distance between track center × crawler contact length × crawler width mm 2540 ×5000×760 Crawler carrier retracted 3840 ×5000×760 Crawler carrier extended Noise Noise level outside operator's cab during operation (dB) ≤107 Noise level in operator's cab during operation ≤85
0-2.1
