20t 30 T 50t Mdg L-Shaped Box Shape Structure L Type Gantry Crane

Shandong Mingdao Heavy Industry Machinery Co., Ltd.
  • After-sales Service:1 Year
  • Warranty:2 Years
  • Certification:CE, ISO9001, SGS
  • Condition:New
  • Maximum Lifting Weight:<20t
  • Maximum Lifting Height:30-40m

Base Info

  • Model NO.:MDG
  • Operation Form:Remote and Cabin
  • Type:Common Gantry Crane
  • Main Girder Form:Single Girder
  • Color:Yellow, Orange, and Customized
  • Lift Height:30m or by Request
  • Power Supply:Customized
  • Girder Type:Box Type
  • Working Class:A5
  • Steel Material:Q235B,Q345b
  • Span Size:30m or Customized
  • Production Time:10-15 Days
  • Transport Package:by Container or Bulk Ship
  • Specification:customized
  • Trademark:Mingdao
  • Origin:China
  • HS Code:842619300
  • Production Capacity:1000set,Year

Description

Basic Info.

Model NO. MDG Operation Form Remote and Cabin Type Common Gantry Crane Main Girder Form Single Girder Color Yellow, Orange, and Customized Lift Height 30m or by Request Power Supply Customized Girder Type Box Type Working Class A5 Steel Material Q235B/Q345b Span Size 30m or Customized Production Time 10-15 Days Transport Package by Container or Bulk Ship Specification customized Trademark Mingdao Origin China HS Code 842619300 Production Capacity 1000set/Year

Product Description

Product Image

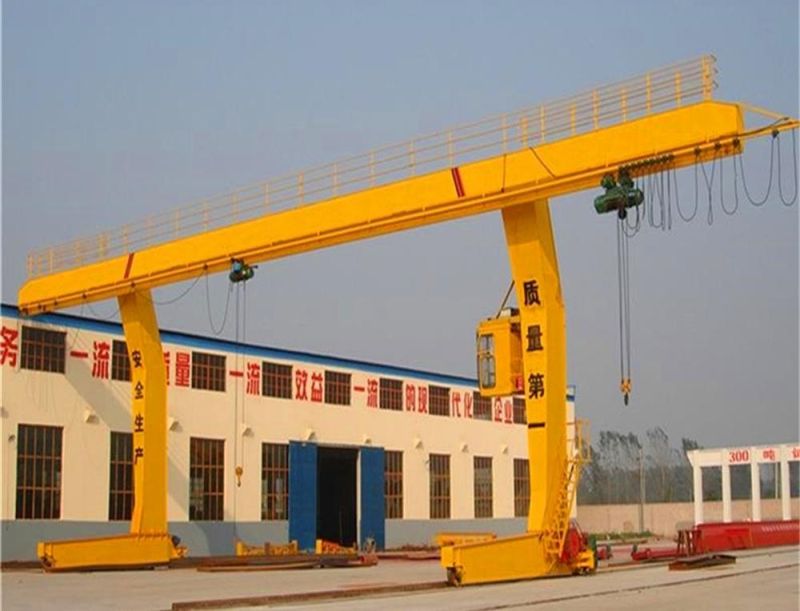

20t 30 T 50t Mdg L-Shaped Box Shape Structure L Type Gantry Crane

20t 30 T 50t Mdg L-Shaped Box Shape Structure L Type Gantry Crane
Brief Introduction:

The single girder gantry crane with hook is adapt to open storage and railway to load and unload as well as carry materials. The crane consists of crane span structure, crane travel mechanism, trolley and electric equipment

The crane span structure adapts the box type of single girder welding structure and the crane travel mechanism adapts separate drive. All the mechanism operate in the operating room. The electric conduction form of crane can be decided into cable and trolley conductor and when you order good you can choose any one form.


Safe Devices:

To guarantee the normal operation of crane and avoid the personal casualty and mechanical damage, the safety device we
provide are not only the electric protective devices or alarm bell but also other
equipments as following:


1.Overload Limit Switch
2. Rubber Buffers
3.Electric Protective Devices
4.Emergency Stop System
5.Voltage Lower Protection Function
6. Current Overload Protection System
7. Rail Anchoring
8.Lifting Height Limit Device


Packing and shipping:

1.Electric parts and electric hoist packed by high quality plywood crate,

2.Other parts packed by Woven bag.

3.Shipped  by Conatiners or Bulk Ship

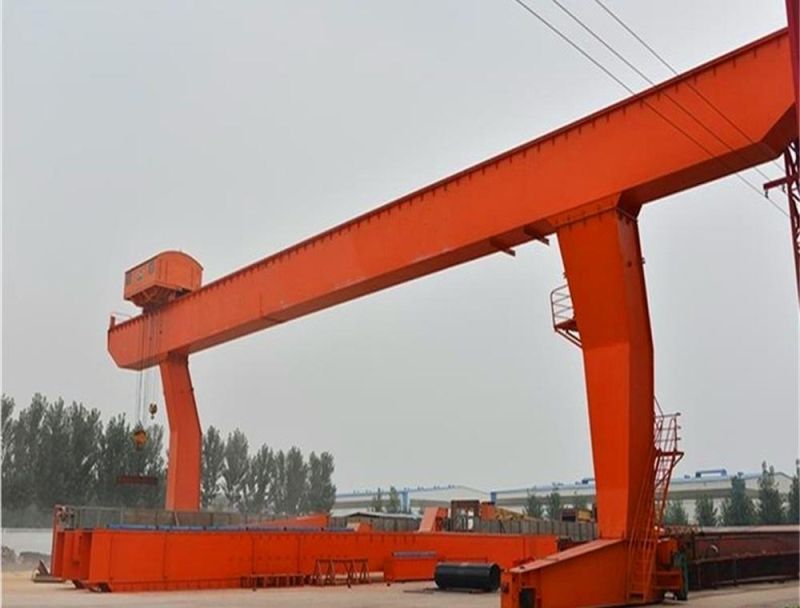

20t 30 T 50t Mdg L-Shaped Box Shape Structure L Type Gantry Crane

Factory workshop:

 Shandong Mingdao Heavy Industry Machinery Co., Ltd.Is located in Taian City,Shandong Province, China. We are mainly

engaged in the design, manufacture,installation and maintenance of single girder cranes(LD Models), Double Girder

Cranes
 (LH,QD etc),gantry cranes(MH,MDG..),Jib cranes(BZ,QZ,MZ etc), variable frequency cranesExplosion-proof series

cranes
(LB,QB etc), Cranes with grab bucket,Low headroom monorail HoistElectric Winches, scrapers and CD1 MD1 HC

Electric Hoist
Hand Chain Hoist etc...

In the past 10 years, we are aiming at China domestic market and become a leading manufacturer in China. Also,we have

exported our products to many countries such as Vietnam, Philippines, Sri Lanka, Bangladesh, France, Dubai, Kazakhstan,

Russia, Tanzania,Peru , New Zealand ,etc countries. We welcome you will cooperation with us in near future.

20t 30 T 50t Mdg L-Shaped Box Shape Structure L Type Gantry CraneCertificates:
Radio Remote Control Type Overhead Crane with Wire Rope Electric HoistFAQ about Mingdao cranes:

1.Can the cranes be customized?
Yes,every customer's working condition is different, all of our products can be customized depend on customers' requirements.
Please give us the information as clear as you can, so we can give our best design to suit for your demands.

2.How many operation methods for my selections?
We provide pendent controller with push button control type, remote control type or cabin control type.Please tell us what kind
of operation way you need.

3.I have low headroom in my workshop, is it possible to install a crane in it?
We have special products for low headroom workshop, our engineer can give the best design according to your dimensions.

4.Do you supply lift tools?
Yes, we can provide any kind of lifting tools such as hook, electromagnetic, grab bucket etc...

For Inquiry:

In order to offer the most suitable design solution for you, it will be great helpful if you can offer the following information to us:
1. Lifting capacity.
2. Span length.(rail center to rail center)
3. Lifting height.(hook center to ground)
4. Have you installed the rails? Do you need us to supply the rails? How long is it?
5. Power supply: Voltage.
6. Working condition: what kind of material to lift? temperature?
7. It would be much better if it is possible for you to offer the drawing photo of your workshop.
