Single Beam Overhead Suspended Crane Lifting Equipment

Shaoxing Leitai Machinery Co., Ltd.

After-sales Service：Pre-Sale Consulting,Technical Guidence,Maintenance
Warranty：One Year
Certification：CE
Condition：New
Operation Form：Remote Control
Maximum Lifting Height：15-20m

Base Info

Maximum Lifting Weight：<20t
Main Girder Form：Double Girder
Type：Ordinary
Work Duty：M5
Lifting Height(M)：6,9,12,15,18
Traveling Speed(M/Min)：4,0.6
Capacity(T)：16
Rope Reeving：4,1
Traveling Speed：20,5
Transport Package：Wooden Box
Trademark：LEITAI
Origin：China

Description

Standard insulation -20C- +70C
High temperature insulation -10C- +115C

Type	Conductor Rail	Cross section (mm²)	Nominal current (A)	Leakage-distance (mm)	Resistance (Ω/km)	Weight (kg/m)
NSP-H24-160/250	Aluminium	160	250	45 or 80	0.203	0.63
NSP-H24-180/300	Aluminium	180	300	45 or 80	0.187	0.71

Type	Conductor Rail	Cross section (mm²)	Nominal current (A)	Leakage-distance (mm)	Resistance (Ω/km)	Weight (kg/m)
NSP-H32-230/320	Aluminium	230	320	80	0.153	0.96
NSP-H32-285/500	Aluminium	285	500	80	0.116	1.13
NSP-H32-360/630	Aluminium	360	630	80	0.087	1.38
NSP-H32-420/800	Aluminium	450	800	80	0.067	1.5
NSP-H32-550/1000	Aluminium	550	1000	80	0.058	1.83
NSP-H32-600/1250	Aluminium	600	1250	80	0.046	2.01

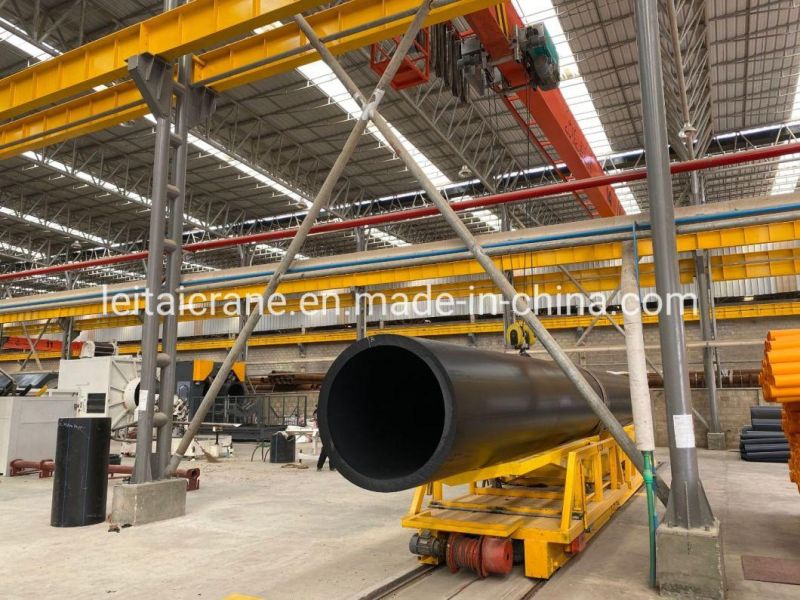

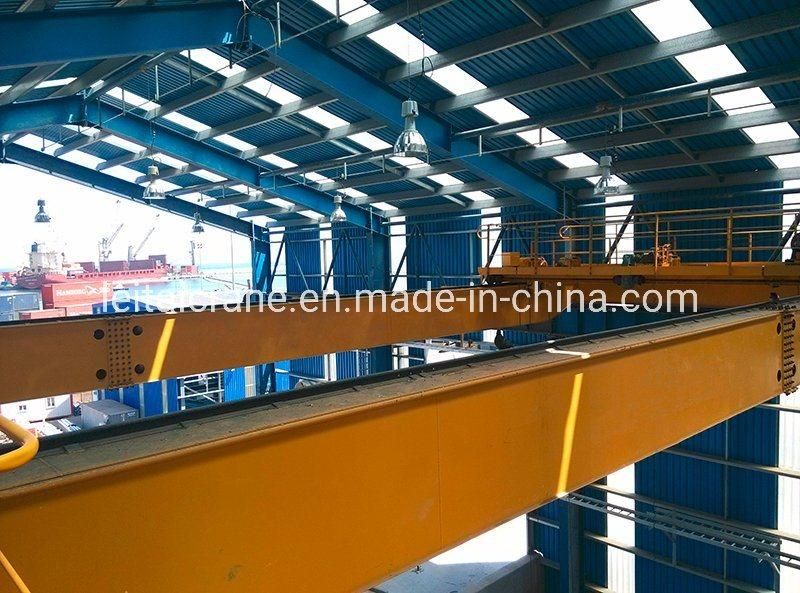

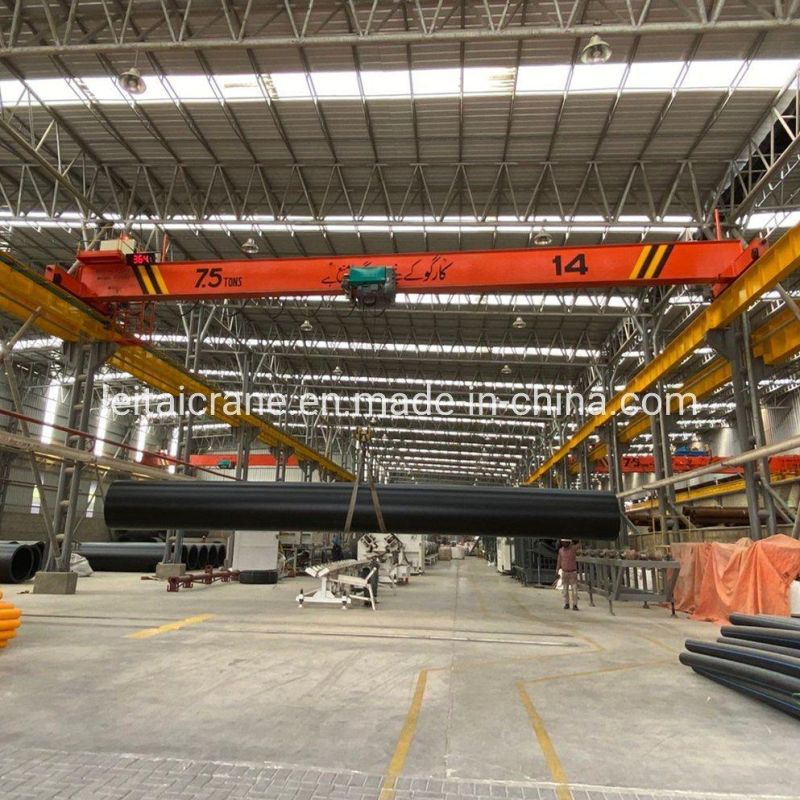

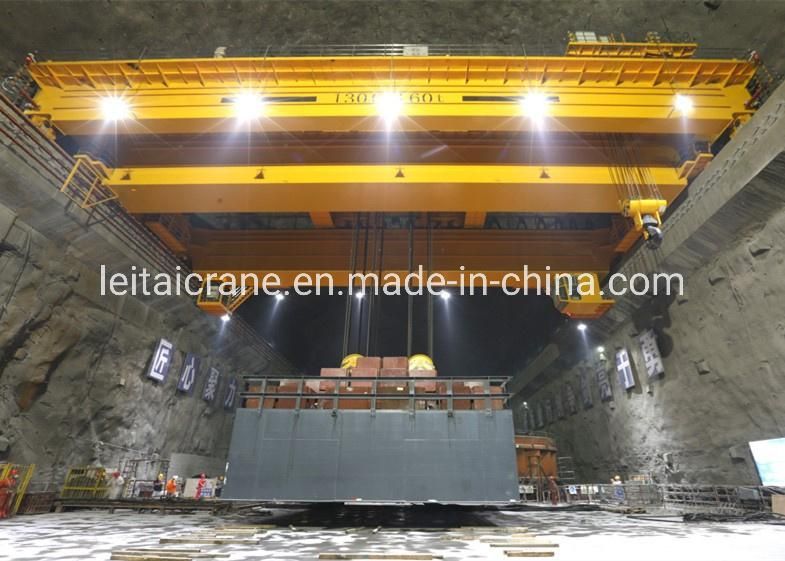

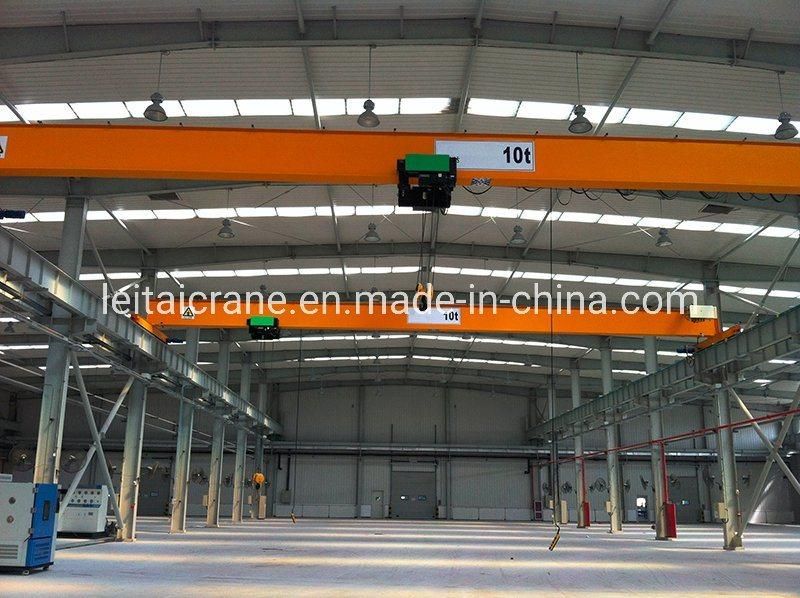

Product Showcase

Single Beam Overhead Suspended Crane Lifting Equipment

Single Beam Overhead Suspended Crane Lifting Equipment

Single Beam Overhead Suspended Crane Lifting Equipment

Single Beam Overhead Suspended Crane Lifting Equipment

Single Beam Overhead Suspended Crane Lifting Equipment

Single Beam Overhead Suspended Crane Lifting Equipment
