20tons Dongfeng LHD Rhd Mobile Crane Truck Straight & Folding Arm

Hubei Manten Automobile Co., Ltd.
  • After-sales Service：24 Hours Online
  • Warranty：12 Months
  • Certification：CE
  • Condition：New
  • Maximum Lifting Height：10-15m
  • Maximum Lifting Weight：5-7t

Base Info

  • Model NO.：FY5250
  • Shaft Number：2
  • Crane Jib：Three-Arm
  • Type：Straight Arm
  • Working Height：8 Meter to 14 Meters
  • Truck Engine：4jb1cn, 98HP
  • Transmission：Msb, 5 Speed in Front, 1 Reverse
  • Tyre：7.00-16, with One Spare Tyre
  • Max Bucket Loading Capacity：200kgs
  • Max Rotation Angle：360 Degree
  • Delivery Time：Within One Month
  • Warrenty：1 Year
  • Transport Package：Bulk or Roro Ship
  • Specification：7350x2080x2920mm
  • Trademark：MANTEN
  • Origin：China
  • HS Code：8705909990
  • Production Capacity：3000PCS Per Year for Aerial Working Platform Truck

Description


Specification
Item No.
Parameters
Drive Type
6X4 Left Hand DriveOverall Dimension7995×2440×3350   mmGross Vehicle Weight24900kgCurb weight15600 kgWheel Base5900+1300mmMax Driving Speed95 km/hAxleFront 5.5tons, Rear 15.6tons
EngineCummins ,B210 33 ,4-stroke direct injection, 6-cylinder
in-line with water cooling, turbo-charging and inter-coolingEngine horsepower210 HPEmission StandardEuro IIIGear Box8 Forwards gear & 1 reverse gearSteering Gearpower steering, hydraulic steering with power assistanceClutchReinforced diaphragm clutch, diameter 430mmFuel Tank150LTire10.00r20 Tire , 10 pieces with one spareBrakedual circuit compressed air brake
Cargo Body Size
7500x2300x600mm,Q235A Steel Body, thickness: 1.5mm Crane specificationsMax lift capacity: 15000 kgMax working radius 11.5 mLifting Max. Height 15.8m » III. Product Description

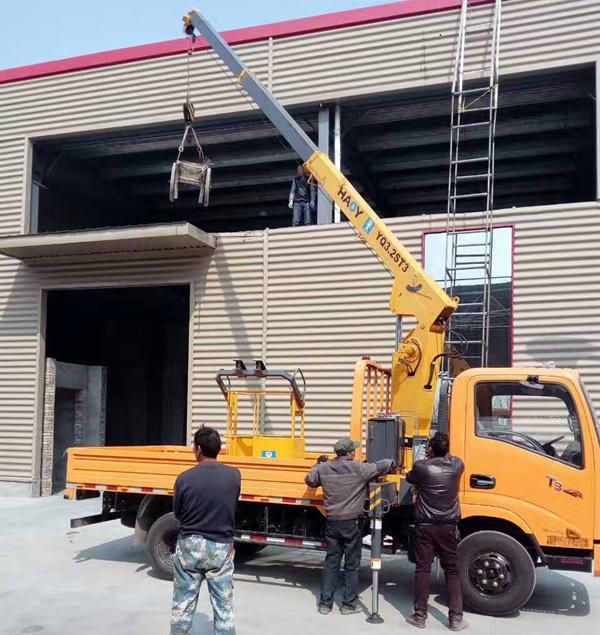

20tons Dongfeng LHD Rhd Mobile Crane Truck Straight & Folding Arm
» IV. Shipment
20tons Dongfeng LHD Rhd Mobile Crane Truck Straight & Folding Arm

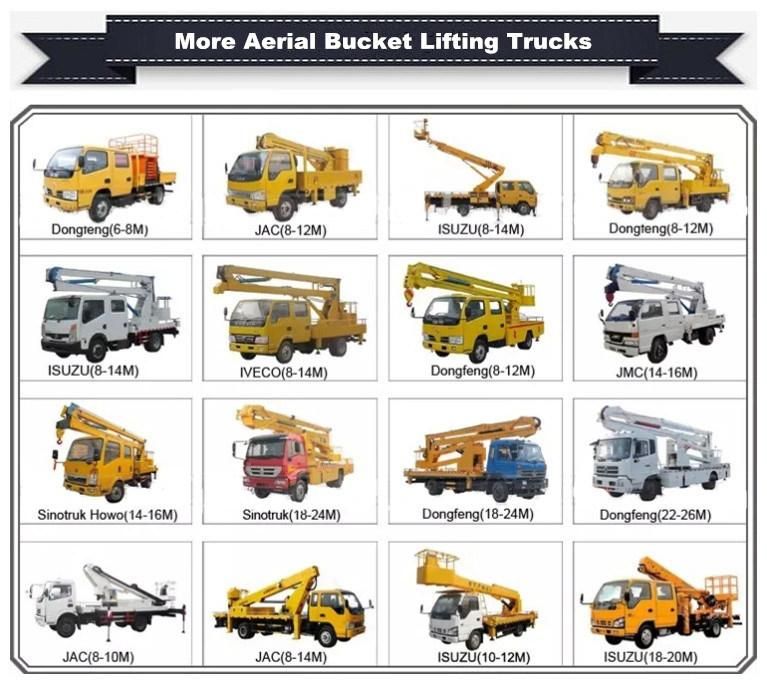

» V. Aerial working platform truck series

20tons Dongfeng LHD Rhd Mobile Crane Truck Straight & Folding Arm

» VI. ABOUT US

HUBEI MANTEN AUTOMOBILE CO.,LTD  is an authorized special truck manufacturer which has many years in design ,product ,sales and service in special trucks like as boom truck , fire truck, manlift truck, tank truck , garbage truck, tipper truck , wrecker truck , refrigerated truck and etc. Main info as below:

(1) More than 500 workers, large and advanced production;
(2) 25 professional engineers, can offer the best and cheapest design;
(3) Build strict QC team to guarantee the quality;
(4) 1 year or 30,000km warranty which comes first.
(5) One set of spare parts of chassis provided which will help you save money on maintenance.
(6) Provide technical support and after serive for life.
(7) Professional sales team which will help you to choose suitable truck.

20tons Dongfeng LHD Rhd Mobile Crane Truck Straight & Folding Arm20tons Dongfeng LHD Rhd Mobile Crane Truck Straight & Folding Arm
Welcome to contact with us for more info. We will offer you the best truck as we can .
