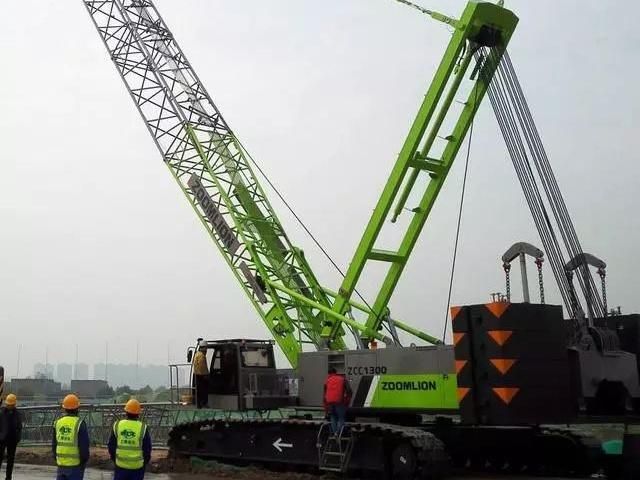

Zoomlion 130 Tons Crawler Crane Zcc1300 with High Quality

Sinomada Heavy Industry (Changsha) Co., Ltd.
  • Max. Lifting Height：73m
  • Rated Loading Capacity：130ton
  • Certification：ISO9001, CE
  • Condition：New
  • Max. Load Moment of Basic Boom：130*4.5 T.M
  • Main Boom Length：19-73 M

Base Info

  • Model NO.：ZCC1300
  • Fixed Jib Length：13-31m
  • Traveling Speed：0~1.3km,H
  • Max. Gradeability：30%
  • Ground Pressure：0.1 MPa
  • Deadweight：113.8t
  • Engine Model：Weichai
  • Rated Power：209kw
  • Overall Dimensions：9550*6500*3200 mm
  • Transport Package：Container,RO-RO
  • Specification：9550*6500*3200 mm
  • Trademark：ZOOMLION
  • Origin：China
  • HS Code：8426491000
  • Production Capacity：100,Month

Description

Maximum lifting capacity × radiust × m130 × 4.5 Maximum lifting momentt × m661.5 Deadweight of crane with basic boomt113.8 Length of main boomm19-73 Length of fixed jibm13-31 Maximum lifting capacity with fixed jibt13 Fixed jib angle.10,30 Maximum length of main boom + fixed jibm55+31,58+25,61+19 Single rope speed of winchesMain winch(hoisting winch 1)m/min105Outermost layer of drumAuxiliary Winch(hosting winch 2)) m/min93Outermost layer of drumderricking winchm/min52Outermost layer of drumSlewing speedr/min0-2.2 Traveling speedkm/h0~1.3 Gradeability%30 Ground pressureMPa0.1 Overall dimensions(L × W × H)m9.55×6.5×3.2Without A-frame and boom frameEngineRated power/rotational speedKw/rpm209/2000 Max. output torque/rotational speedNm/rpm1424/1400Exhaust emission standard U.S.EPA Tier 3Distance between track center × crawler contact length × crawler shoe widthmm5600×6850×900
