• Model NO.：SPK8500
• Shaft Number：2
• Crane Jib：Four-Arm
• Type：Folding
• Rotating Moment：0.9
• Transport Package：1*40fr+10*40hq
• Specification：15530*4000*2800mm
• Trademark：SINOMADA
• Origin：China
• Production Capacity：50000PCS,Year

Basic Info.

Model NO. SPK8500 Shaft Number 2 Crane Jib Four-Arm Type Folding Rotating Moment 0.9 Transport Package 1*40fr+10*40hq Specification 15530*4000*2800mm Trademark SINOMADA Origin China Production Capacity 50000PCS/Year

Product Description

China Construction Machinery SPK8500  for Sale

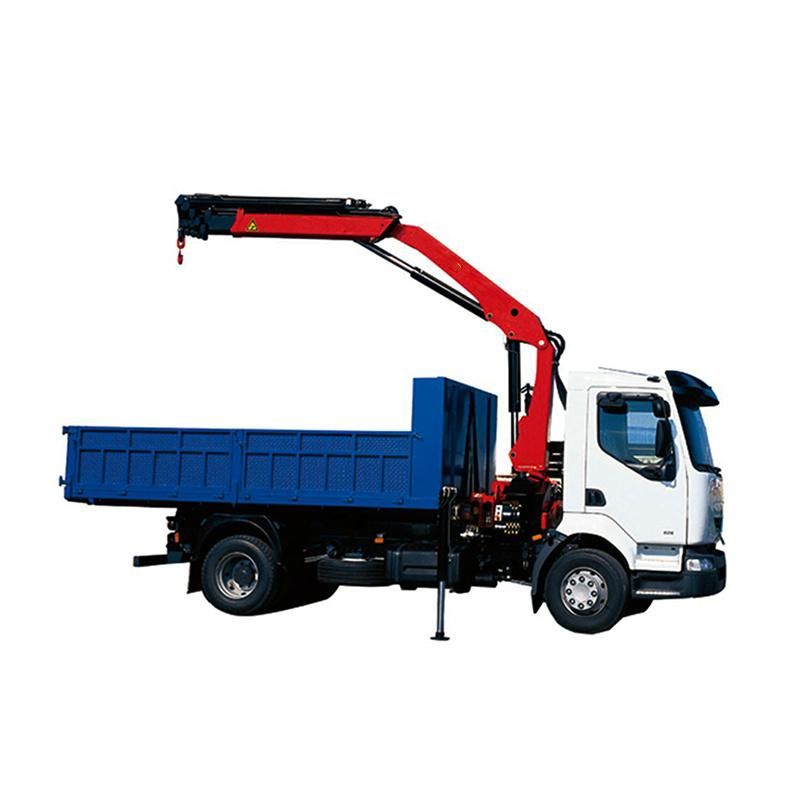

The SPK8500 truck-mounted crane has a compact structure and small size. Folds freely and takes up little space. The six-sided arm tube structure is adopted, and the whole plate is bent and welded to form, with only one weld seam, which reduces the risk of welding defects to a minimum.


Lifting capacity
Rated lifting weight	3300kg
Maximum lifting weight	3300kg
Rated lifting moment	7.6t·m
Lifting moment	7.6t·m
Lifting range
Rotation angle	400°
Range of luffing angle	0~75°
Maximum hydraulic extension	9.6m
Other parameters
Outrigger span (full extension)	5.6m
Recommended system flow	25-35L/min
Rated system pressure	31.5Mpa
Number of hydraulic telescopic boom	3
Rotating moment	0.9t·m
