• Model NO.：XGC75
• Span：13-58m
• Engine：Sc7h210
• Engine Rated Power：155kw,(R,Min)
• Base Boom：75m
• Transport Package：Nude Package
• Specification：Comply with export packaging requirements
• Trademark：XCMG
• Origin：Jiangsu China
• HS Code：87059091
• Production Capacity：10000,Year

Basic Info.

Model NO. XGC75 Span 13-58m Engine Sc7h210 Engine Rated Power 155kw/(R/Min) Base Boom 75m Transport Package Nude Package Specification Comply with export packaging requirements Trademark XCMG Origin Jiangsu China HS Code 87059091 Production Capacity 10000/Year

Product Description

XCMG Official Xgc75 75ton Hydraulic Crane

XCMG XGC75 Hydraulic Crawler Crane is a new generation product based on years of product development and application experience. According to the needs of the market, XGC75 hydraulic crawler cranes are characterized by inheriting the advantages of old products and paying more attention to the performance, disassembly and transportation.

To enhance the comfort of the operation to a new look, industry-leading lifting performance, improve the self-assembly and disassembly functions, and many other outstanding advantages, to bring customers a new experience.

Products can be used for farmland capital construction and water conservancy construction, petrochemical power engineering construction, steel, nonferrous metals, coal and other resources exploration and construction, construction, municipal construction, port construction and other fields.

The system is mature and reliable with complete safety devices. Fitted with multiple advanced technologies, such as gantry self-erecting function, aux. hook quick release function,  main and auxiliary hook block one-key switch function, slewing fine motion control and etc., the crane's  performance is superior to that with other domestic brands in various aspects.

XGC75 crawler crane has a wide range of application, including transportation infrastructure construction, city building construction, large load lifting and transfer, energy equipment installation and others.

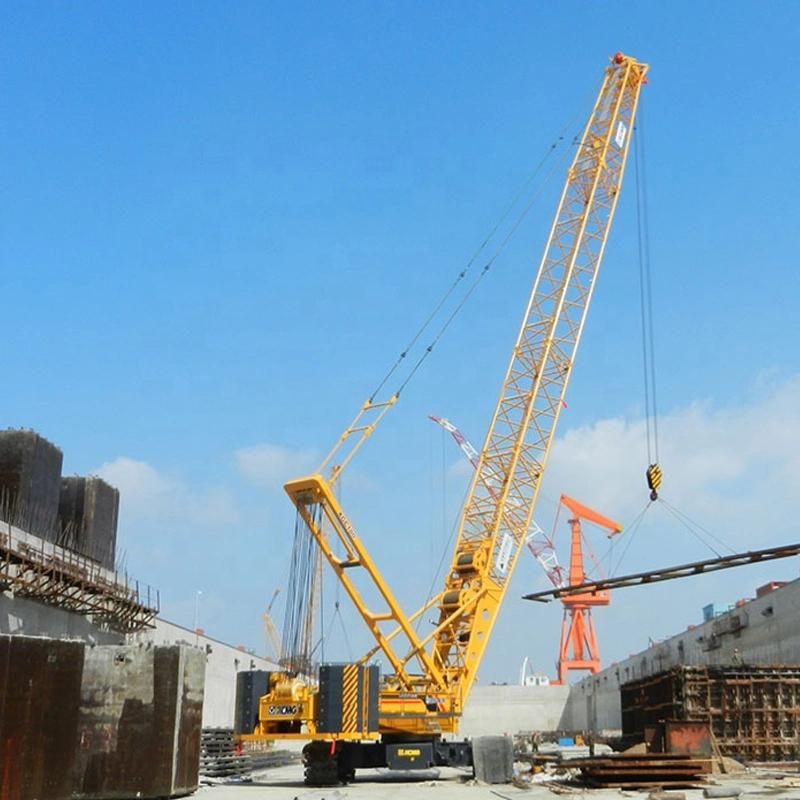

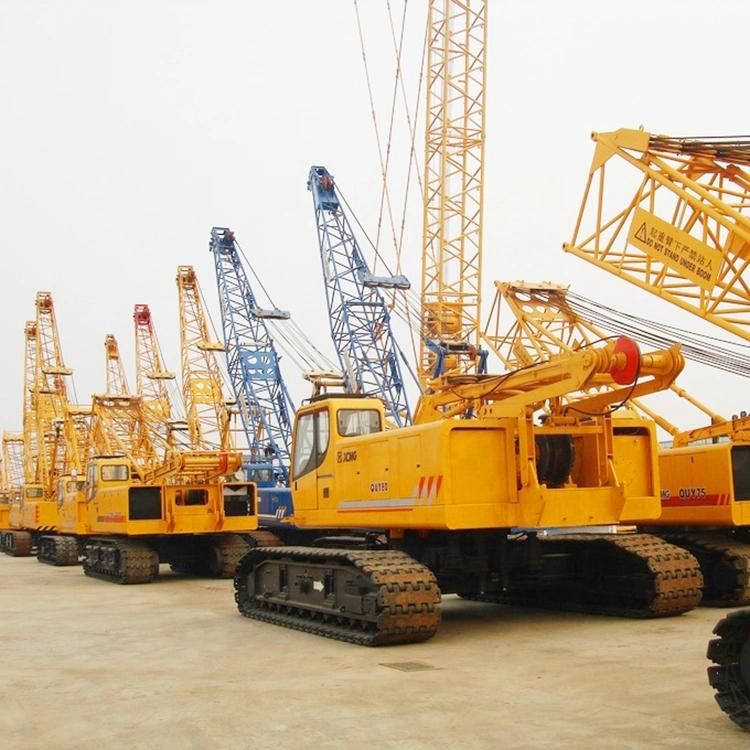

[Product Picture]



[Product Parameter]

Item	Unit	Parameter value
Parameter Item	-	XGC75
Operation performance parameter		*
Max. rated lifting capacity for boom	(t)	75
Max. rated lifting capacity for fixed jib	(t)	12
Max. rated lifting capacity for luffing jib	(t)	-
Max. load moment	(t.m)	286
Max. rated lifting capacity for tower jib	(t)	-
Max. rated lifting capacity for boom single top	(t)	6.5
Max. rated lifting capacity for special jib	(t)	-
Dimension parameter		*
Boom length	(m)	13~58
Boom luffing angle	(°)	-3~80
Fixed jib length	(m)	7~19
Tower jib length	(m)	-
Max. dimension of single unit in transport state(L×W×H)	(m)	12.7×3.4×3.4
Fixed jib offset angle	(°)	10,30
Special jib length	(m)	-
Speed parameter		*
Max. single line speed for hoist mechanism	(m/min)	128
Max. single line speed for boom luffing mechanism	(m/min)	70
Max. single line speed for jib luffing mechanism	(m/min)	-
Max. slewing speed	(r/min)	3
Max. travel speed	(km/h)	1.4
Grade ability	(%)	30
Mean ground pressure	(MPa)	0.08
Max. single line speed for tower jib luffing mechanism	(m/min)	-
Max. single line speed for superlift luffing	(m/min)	-
Engine		*
Model	-	SC7H210/QSB6.7
Engine power	(kW)	155/153
Emission	-	National III/EU III
Mass parameter		*
Overall crane mass	(t)	61(main hook, 13m boom)
Max. mass of single unit in transport state	(t)	37
