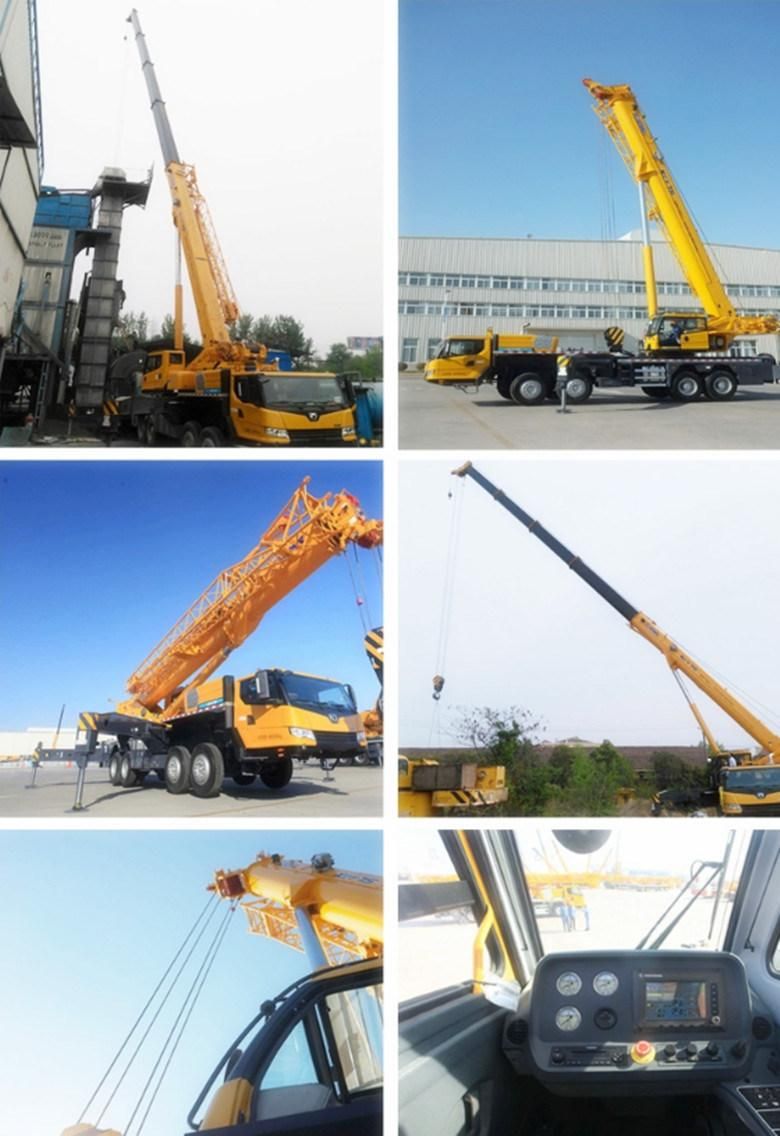

Hydraulic Mobile Truck Crane in Promotion 80ton Xct80
Shanghai Super-Above Industry Holdings Co., Ltd.- Condition：New
- Maximum Lifting Height：64m
Base Info
- Model NO.：XCT80
- Maximum Lifting Weight：80000kgs
- Shaft Number：4
- Crane Jib：Five-Arm
- Type：Telescopic
- Max Lifting Capacity：80ton
- Rated Power：276kw
- Total Weight：50000 Kg
- Length：14770mm
- Width：2800mm
- Height：3890mm
- Speed：80km,H
- Cabin：Full Cabin
- A/C：Yes
- Emission：Euro III
- Warranty：1 Year
- Aftersales Service：Oversea Service, Free Spare Parts, etc
- Control System：Pilot Control
- Certificate：ISO CCC

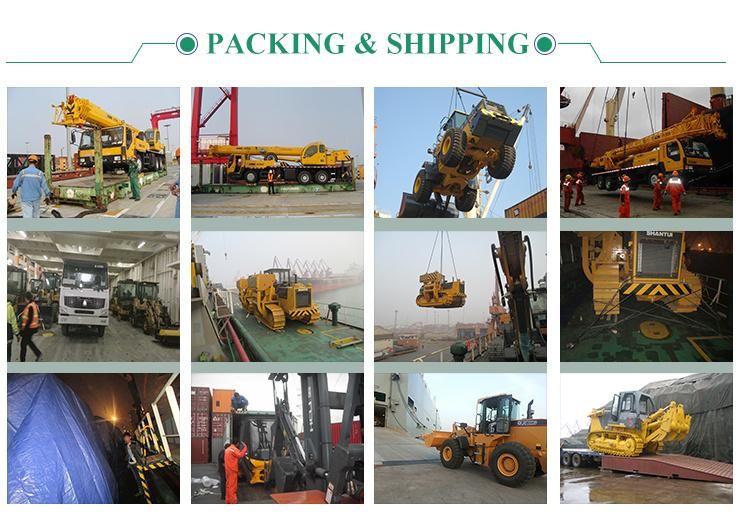

- Transport Package：Roro Ship , Bulk Ship
- Specification：Mobile crane
- Trademark：Super-above
- Origin：Jiangsu, China
- HS Code：8705109100
- Production Capacity：10000units,Year
Description
Axle base1st ,2nd axle mm 1470 2nd ,3rd axle 4000 3rd ,4th axle 1350 Wheel Base mm 2380+2075 Total vehicle mass in travel configuration kg 50000 Axle load 1st and 2nd Axle kg 24000 3rd and 4th Axle 26000 Engine Model WP12.375N/MC11.39-30 Engine rated power kw/(r/min) 276-290/1900 Engine rated torque N.m/(r/min) 1800-1900/1000-1400 Max. travel speed km/h 80 Min. steady travel speed km/h 3 Min. turning diameter m 24 Min. turning diameter at boom tip m 29 Min. ground clearance mm 371 Max. grade ability % 40 Approach angle ° 17 Departure angle ° 15.5 Braking distance (at 30 km/h, full load ) m ≤10 Oil consumption per 100km L 45
