• Model NO.：BZ
• Material：Steel
• Type：Cantilever
• Product Name：Jib Crane for Sale
• Valid Radius：4~5.5m
• Color：on Request
• Overseas Installation：Available
• Power Source：380V 3pH 50Hz (as Your Demand)
• Work Duty：A3-A5
• Control Method：Pedent Button or Remote Control or Cabin
• Production Time：10-15 Days
• Power Supply：Bus Bar
• Manufacture：Mingdao
• Co：China
• Angle of Revolution：180°,270,°360°
• Lift Height：3-5
• 8/2,4/1：1~5t
• Transport Package：Container or Bulk Ship
• Specification：Customized type
• Trademark：MD
• Origin：China
• HS Code：8426990000
• Production Capacity：1000sets, Year

Basic Info.

Model NO. BZ Material Steel Type Cantilever Product Name Jib Crane for Sale Valid Radius 4~5.5m Color on Request Overseas Installation Available Power Source 380V 3pH 50Hz (as Your Demand) Work Duty A3-A5 Control Method Pedent Button or Remote Control or Cabin Production Time 10-15 Days Power Supply Bus Bar Manufacture Mingdao Co China Angle of Revolution 180°/270/°360° Lift Height 3-5 8/2,4/1 1~5t Transport Package Container or Bulk Ship Specification Customized type Trademark MD Origin China HS Code 8426990000 Production Capacity 1000sets/ Year

Product Description

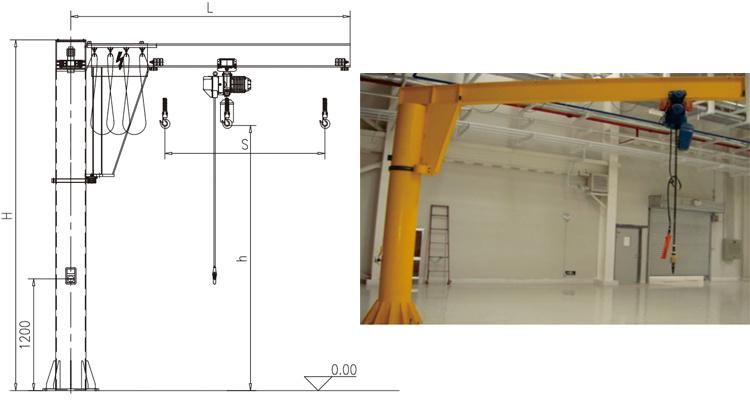

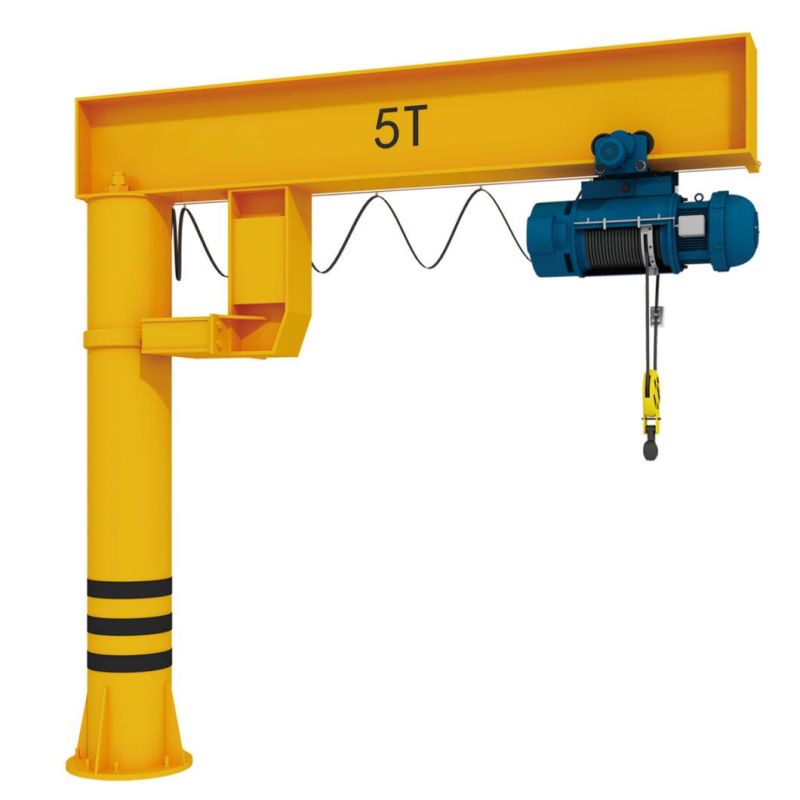

                     Wire Rope Hoist Swing Fixed Column Slewing Pillar Outdoor Dock Jib Crane





Brief Introducion:

Lifting Weight: 0.5t~20t
Valid radius: 4m~12m
Lifting Height:3m~15m

Features of floor mounted jib crane:
1.it is used for lifting 0.5t~5t stuff;
2.It has beautiful box-typed welded main girders. Computer optimized design for main girders with good performance and light weight;
3.Compact structure, light weight and high lifting height;
4.It's widely used in workshops, metallurgy, warehouses and assembly shops etc.


Mechanism of floor mounted jib crane:
1. box-type shaped by wielding;
2. High quality carbon steel Q235B and Q345B;
3. the girder connected by high strength screws;
4. Welding seams are tested by X-ray and ultrasound;
5. Forged wheels;
6. Compact structure, small volume and light weight trolley;
7. Lifting mechanism is open type winch trolley;
8. Compact reducer motor drive, step less control, hardened gears and safety disc brake;
9. Good operation performance, step less speed regulating and running smoothly;
10. Main girders Shot blasting sa2.5 after welding to release internal stresses;
11. Painting high quality epoxy zinc-rich primer, and the thickness of oil film is 140μ

Electric System of floor mounted jib crane :
1. Power supply through step less slide lines;
2. Lifting mechanisms and traveling mechanisms are mutually independent and could travel at the same time;
3. Control panel protection degree is IP54;
4. Reasonable components installation, convenient for check and maintenance;
5. Electric cable is suspended in cable saddle, stationary cable trolley which slides on a galvanized C-type steel;

Safety Protection Devices of floor mounted jib crane:
Overload limiter, limit switch (lifting and traveling), interlocking protection devices, buffer, track sweep plate, shield, bus bar protection board, anti-collision device, main disconnecting switch, emergency stop system and motor overload protection.

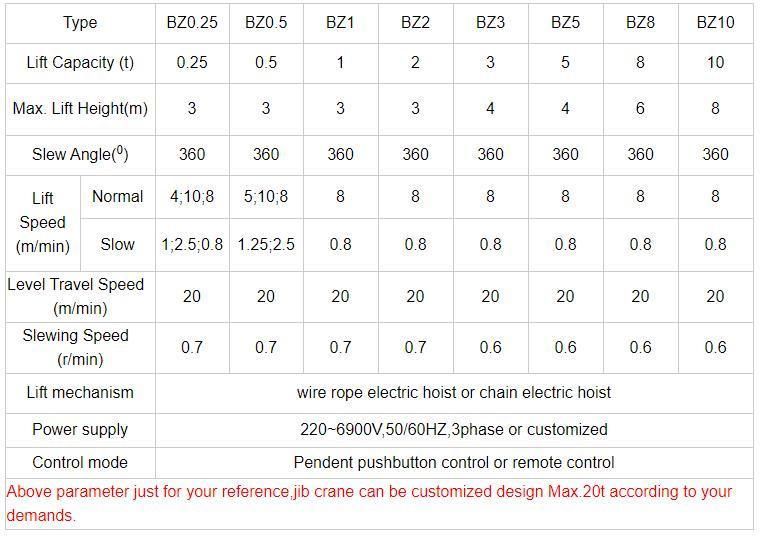

Specifications of fixed floor mounted jib crane:

PACKAGE & DELIEVERY&SHIPPING

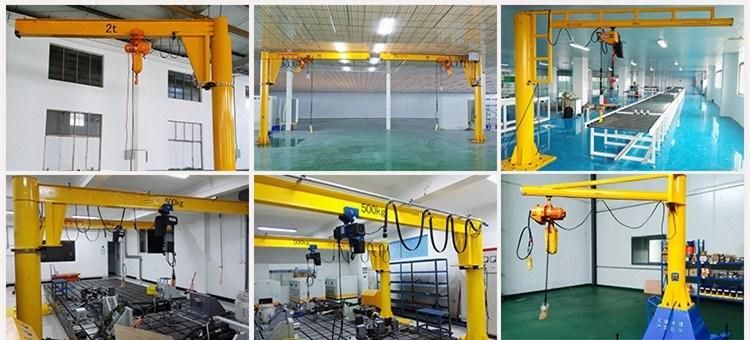

USED IN VARIOUS INDUSTRIES:

CUSTOMER FEEDBACK:

ABOUT MINGDAO CRANES:
Shandong Mingdao Heavy Industry Machinery Co., Ltd. Is located in Taian City,Shandong Province, China , it is near the China famous Mountain Taish, and also near Kongzi Temple.In the past 10 years, we are aiming at China domestic market and become a leading manufacturer in China. Also, with the help of China trading companies we have exported our products to many countries such as Vietnam, Philippines, Sri Lanka, Bangladesh, France, Dubai, Kazakhstan, Russia, Tanzania,Peru , New Zealand ,etc countries . We got 99% good feedback from the overseas customers. Now we are not only aiming at China domestic market growth ,but also to expand the international market with our quality and price advantages. Integrity, quality, customer satisfaction is the pursuit of Mingdao heavy workers!


Certificates:



FAQ:

Q. What's the information should I provide when send you an inquiry?
A:Lift capacity,    span,    lift height,     power supply & control voltage

Q. Can this type of jib crane work in hazardous environment?
A:Sure! We can customize it for you, acid proof or explosion proof, no problem for that.

Q. Can you provide related lifting tools that we might need?
A:Sure, we can provide any lifting tools, such as sling belt, lift clamp, grab, magnet lifter or others as your requirement.

Q. How to install the crane?
A:We will give you installation drawing or send engineer to your site.

Q. Safety device
A:Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
