1t 2t Mini Light Manual Gantry Crane with Wheels
Wuxi Buytool Industrial Equipment Co., Ltd.- Certification：CE, ISO9001
- Condition：New
- Maximum Lifting Weight：0.5-2t
- Maximum Lifting Height：<10m
- Operation Form：Remote Control
- Type：Common Gantry Crane
Base Info
- Model NO.：TSC SERIES
- Main Girder Form：Single Girder
- Transport Package：on Request
- Specification：customizable
- Trademark：Buytool
- Origin：Made in China
- HS Code：8426193000
- Production Capacity：500PCS,Month
Description
Basic Info.
Model NO. TSC SERIES Main Girder Form Single Girder Transport Package on Request Specification customizable Trademark Buytool Origin Made in China HS Code 8426193000 Production Capacity 500PCS/MonthProduct Description

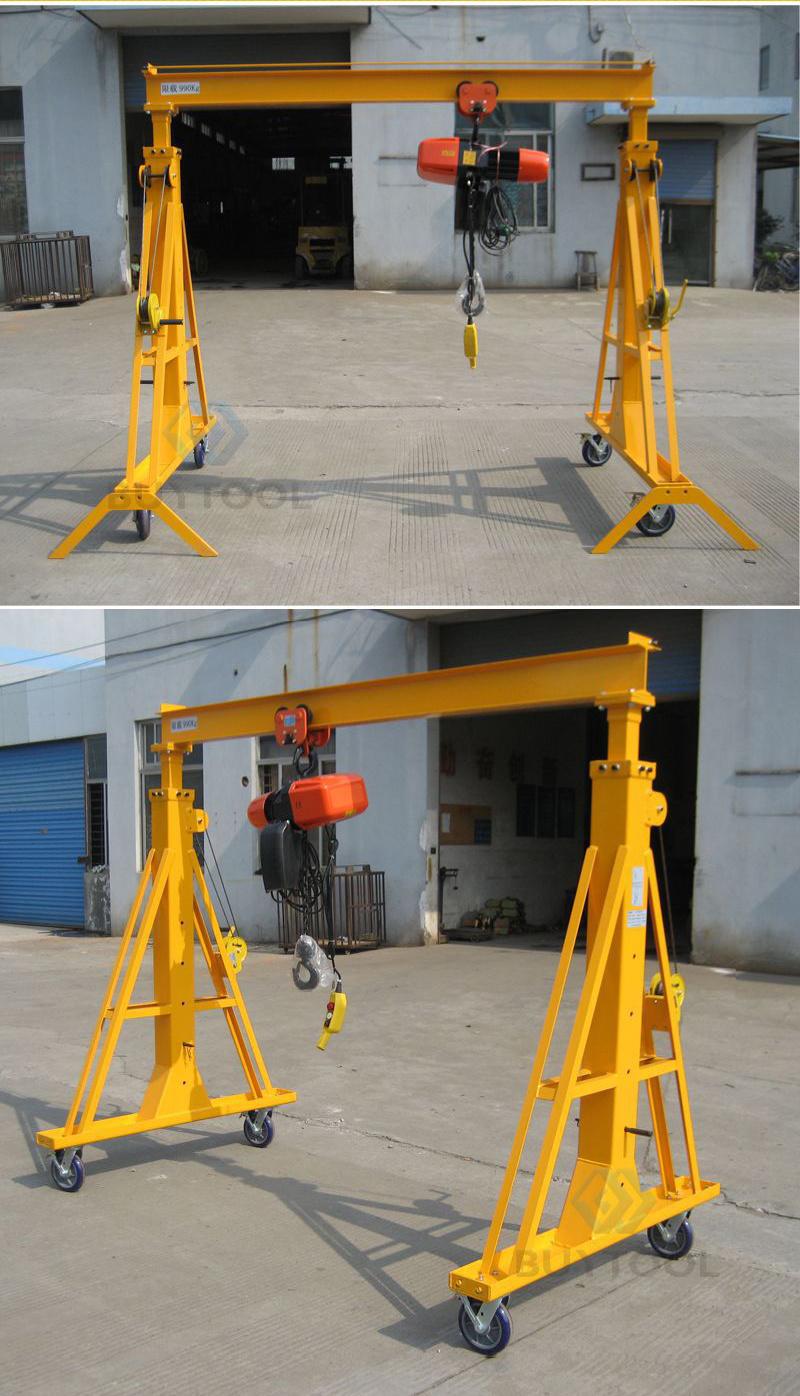

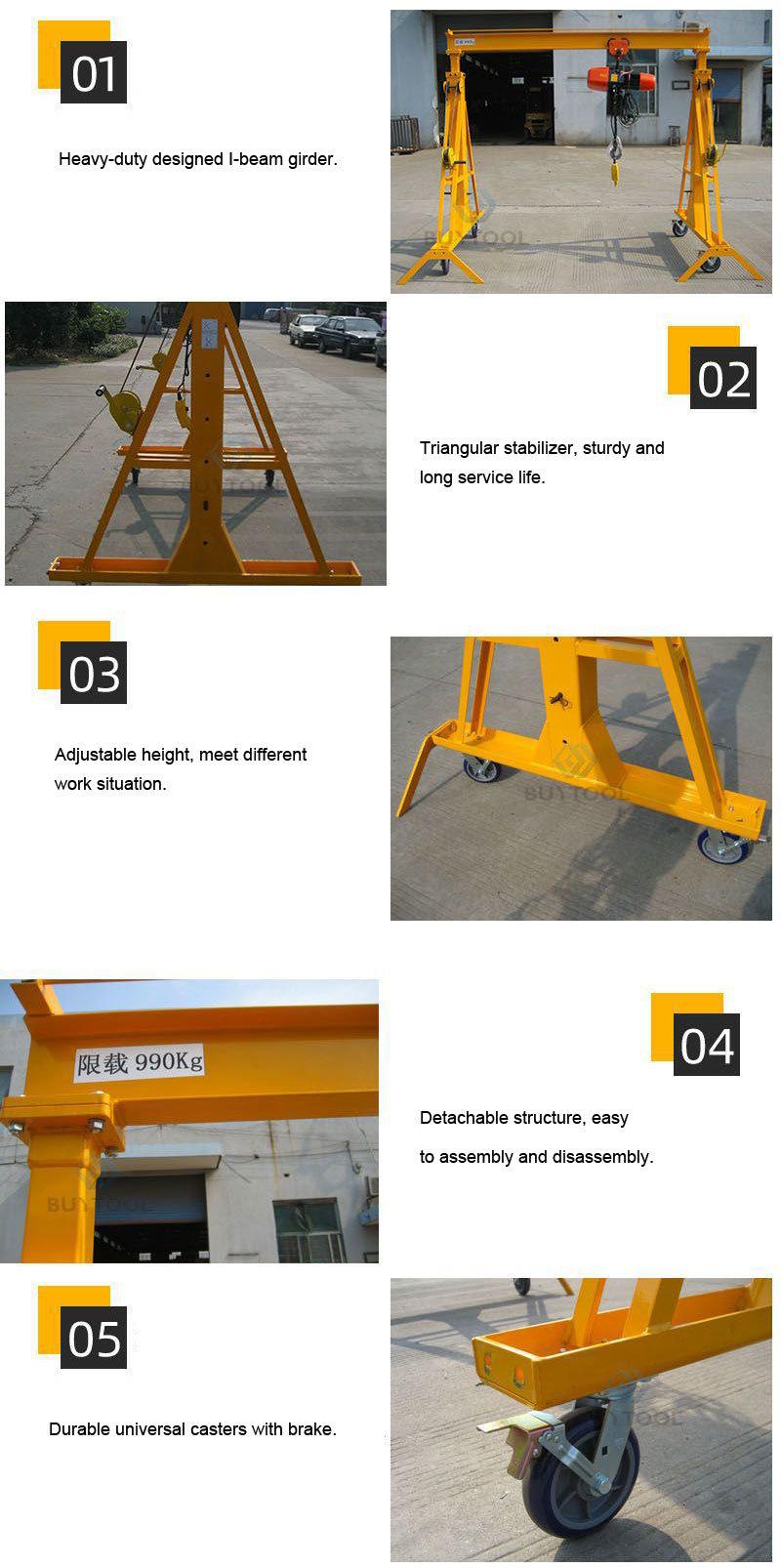

1t 2t Mini Light Manual Gantry Crane with WheelsThe girder of the Mobile Gantry Cranegirder is made from I beam,which is bearing the load and also as the traveling track of hoist.The Mobile Gantry Crane is equipped with a universal wheel which can move omni-directional on flat ground.The main girder and leg are connected through flange plate with high strength bolt connection, can be disassembled or assembled quickly, or moved to another working site.
It can be fitted with manual or electric wire rope hoist or electric Chain Hoist.This gantry crane offers flexibility to the operator for
shifting parts from one workstation to another without having to wait for the girder crane to be available.
Component of the Mobile Gantry Crane Supplier With Competitive Price :
-Gantry frame (main beam, leg, ground beam)
-Hoist trolley
-Crane travel mechanism
-Ground control/Remote control
| Gantry Model | Capacity(kg) | Span(mm) | Height(mm) |
| TSC500-2030 | 500 | 2500/3000/3500/4000 | 2000-3000 |
| TSC500-2535 | 500 | 2500/3000/3500/4000 | 2500-3500 |
| TSC500-3040 | 500 | 2500/3000/3500/4000 | 3000-4000 |
| TSC500-3545 | 500 | 2500/3000/3500/4000 | 3500-4500 |
| TSC500-4050 | 500 | 2500/3000/3500/4000 | 4000-5000 |
| TSC1000-2030 | 1000 | 2500/3000/3500/4000 | 2000-3000 |
| TSC1000-2535 | 1000 | 2500/3000/3500/4000 | 2500-3500 |
| TSC1000-3040 | 1000 | 2500/3000/3500/4000 | 3000-4000 |
| TSC1000-3545 | 1000 | 2500/3000/3500/4000 | 3500-4500 |
| TSC1000-4050 | 1000 | 2500/3000/3500/4000 | 4000-5000 |
| TSC2000-2030 | 2000 | 2500/3000/3500/4000 | 2000-3000 |
| TSC2000-2535 | 2000 | 2500/3000/3500/4000 | 2500-3500 |
| TSC2000-3040 | 2000 | 2500/3000/3500/4000 | 3000-4000 |
| TSC2000-3545 | 2000 | 2500/3000/3500/4000 | 3500-4500 |
| TSC2000-4050 | 2000 | 2500/3000/3500/4000 | 4000-5000 |
FAQ:
Q: What about the quality of the products?
A: Our products are CE approved, and we have five inspection steps before shipment:
1. Inspect the raw material in accordance with ISO9001;
2. Strict inspection in the whole production process;
3. Load limit test when assembling finished;
4. 100% strict inspection of products before shipment;
5. If needed, inspection by buyer.
Q: How long is the quality guarantee?
A: All of our products carry one-year warranty.
Q: What's the leadtime?
A: Normally 30 days.
If you order more than 5 itmes mixed in one container, it will be 45 days.
If you order one item in one container, it will be 20 days.
