• Model NO.：OKT-8T,OKT-10T,OKT-12T,OKT-16T,OKT-25T
• Type：Straight Arm
• After-Sales Service Provided：Overseas Third-Party Support Available
• Product Name：Truck Crane
• Engine：Changchai,Optional
• Hydraulic Pump：Eaton,Optional
• Hydraulic Cylinder：Eaton,Optional
• Hydraulic Valve：Eaton,Optional
• Warranty：1 Year
• Color：Accept Customized
• Logo：Accept Customized
• Package：Accept Customized
• OEM：Accept
• Throttle：Hydraulic
• Crane Cab：Tailor-Made
• Brake：Air Brake
• Chassis：According to Customer Requirements

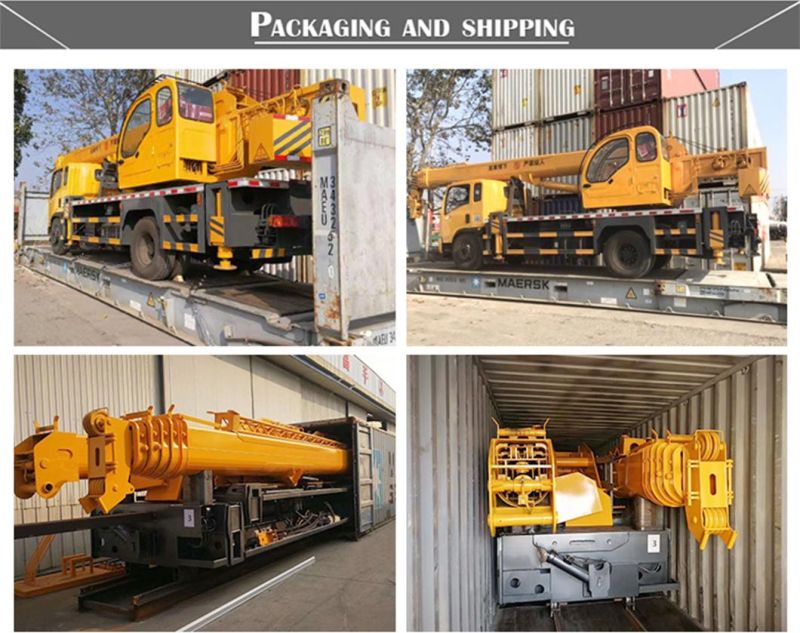

• Transport Package：Standard Package
• Trademark：OUKE
• Origin：Jining
• HS Code：8425190000
• Production Capacity：200

Basic Info.

Model NO. OKT-8T/OKT-10T/OKT-12T/OKT-16T/OKT-25T Type Straight Arm After-Sales Service Provided Overseas Third-Party Support Available Product Name Truck Crane Engine Changchai/Optional Hydraulic Pump Eaton/Optional Hydraulic Cylinder Eaton/Optional Hydraulic Valve Eaton/Optional Warranty 1 Year Color Accept Customized Logo Accept Customized Package Accept Customized OEM Accept Throttle Hydraulic Crane Cab Tailor-Made Brake Air Brake Chassis According to Customer Requirements Transport Package Standard Package Trademark OUKE Origin Jining HS Code 8425190000 Production Capacity 200

Product Description

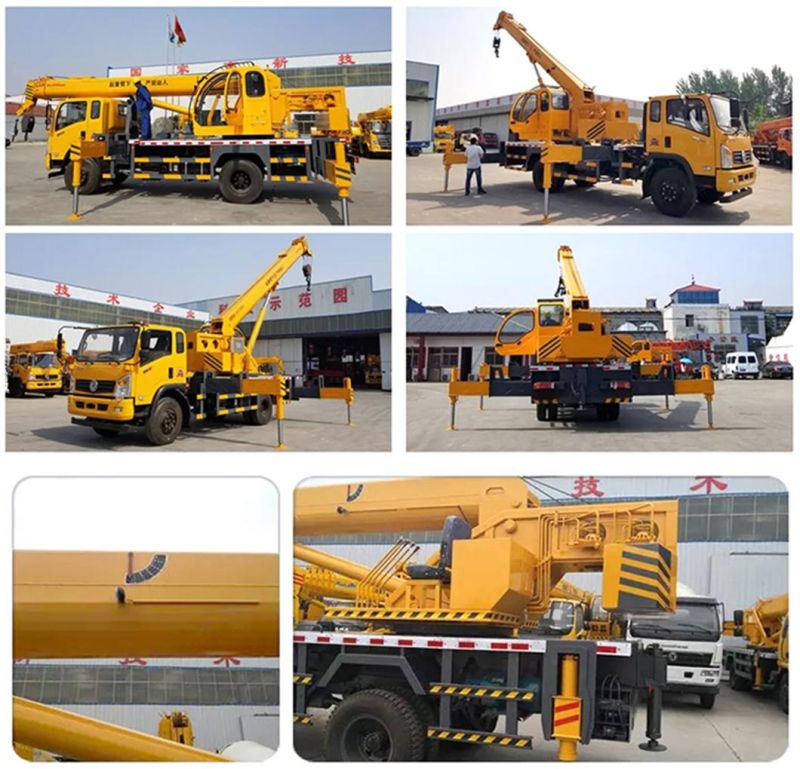

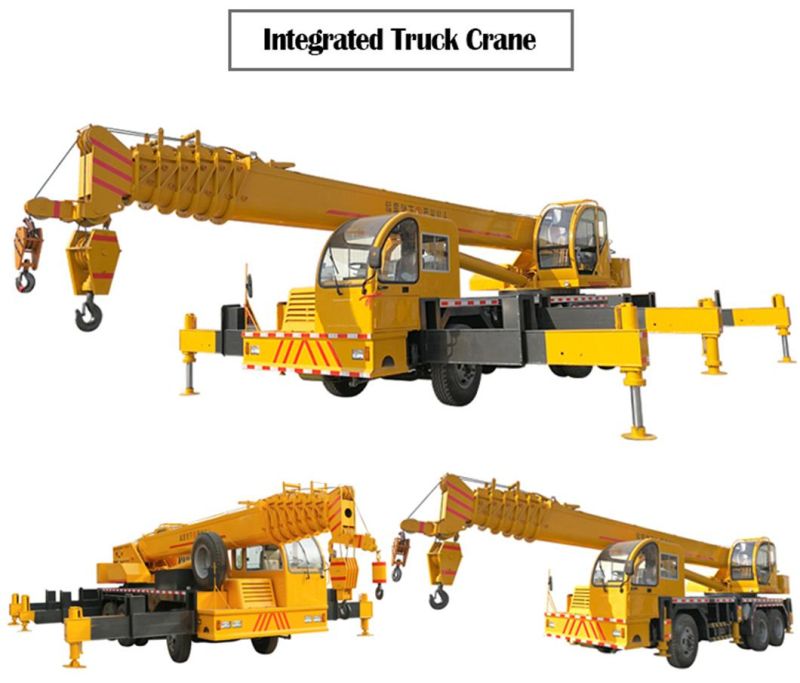

Cheap Price Mobile All Terrain Crane Hydraulic Mini Truck Crane Machine Small Truck Mounted Crane For Sale
The optimizing layout of the machine makes the stress of the main bearing carriers more reasonable, and the lifting performance is higher than the products with the same tonnage.
• Apply the mature jib technique which integrates plug-in boom head, embedded boom block, and special telescoping mechanism, which makes the jib more stable and reliable.
• Optimize the stress design. Adopt the box-type outriggers which have larger span, stronger rigidity, and better stability.

Most Popular Machine Type Parameter

Model	OKT-8T	OKT-10T
Rated elevating capacity	8000kg	10000kg
Max. Lifting Height	25m	27m
Main hook single load	8000kg	10000kg
Main hook single elevating speed	76 m/min	76m/min
Auxiliary hook single load	600 kg	1000kg
Auxiliary hook single elevating speed	53m/min	55(m/min)
Power	64kw	95kw
Tyres	750-16LT	8.25-16 with spare tires
Wheelbase	3200mm	3800mm
Axle	2	2
Passenger	2	3
Crane jib structure	U shape	U shape
Platform	Anti-skidding and big	Anti-skidding and big
Crane Cab	Tailor-made	Tailor-made
The central axially symmetrical	Five oil ways	Five oil ways
Crane Start	Tailor-made	Tailor-made
Throttle	Hydraulic	Hydraulic



Model	OKT-12T	OKT-16T	25T
Rated Loading Capacity	12000KG	16000KG	25000KG

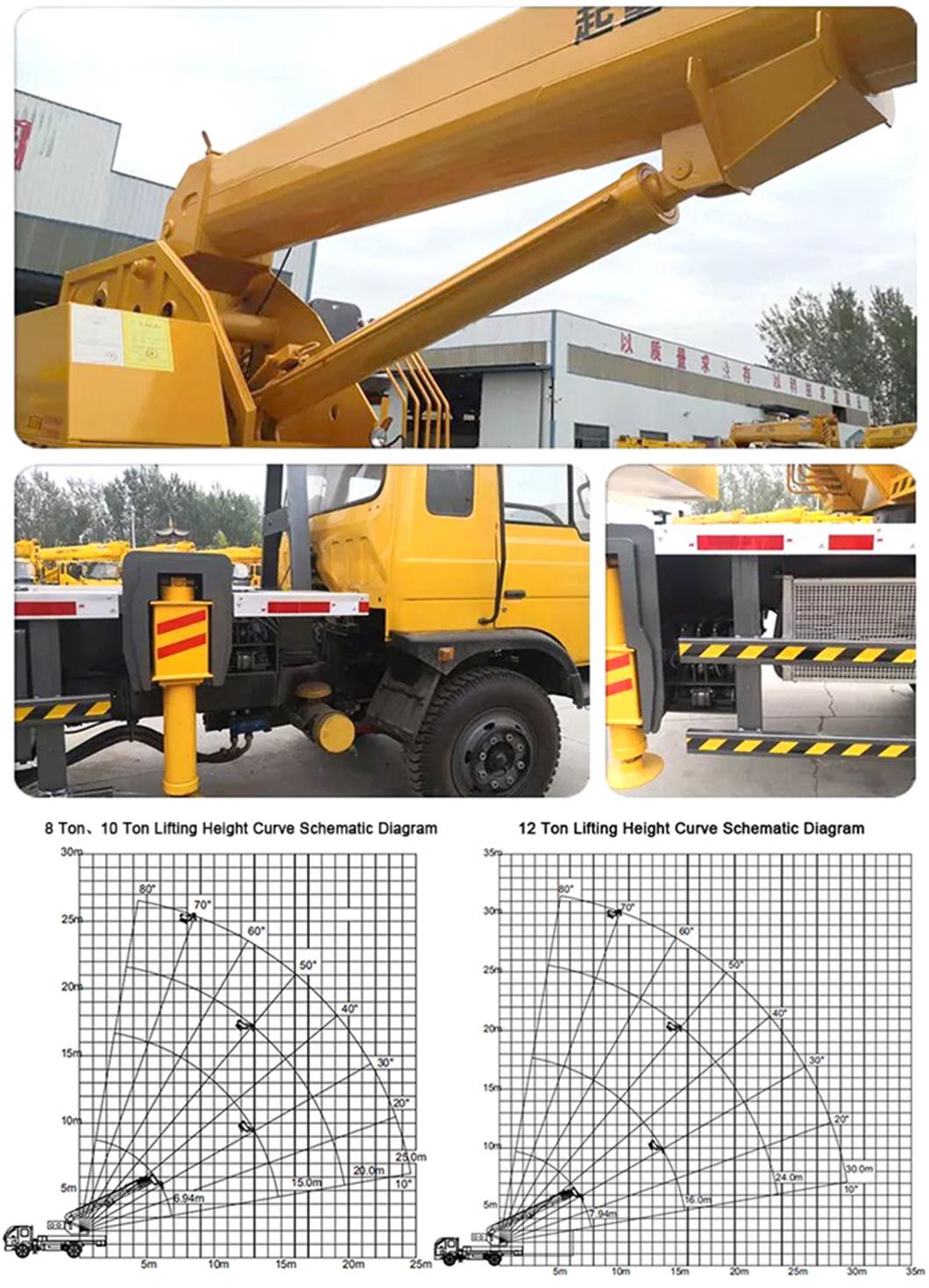

Max. Lifting Height	27 m	33M	34m
Power	15kw	18.5kw (optional)	196kw
Engine	4DX23-140E5	YC4S140-50	CHANGCHAI
Big arm	U type 30-36m	U type 30-36m	34 meters
Fan heat system	Air cooled fan heat system	air-cooled fan heat system	air-cooled fan heat system
Chassis	Chassis for Kama truck cranes	Futian Ruiwo car crane special chassis	Heavy-duty crane special chassis
Tires	825R20	900R20	1100-20
Brake	air brake	air brake	Air brake
Direction	Hydraulic boost	Hydraulic boost	power steering
Wheelbase	3815mm	4400mm	4300mm /5700mm
The highest speed	88Km / h	85Km / h	/
Single arm length	7m	8m	10 m
Boom number	5	5	5
Boom structure	Inner rope	Inner rope	Inner rope
Thick section boom size	Height 58 cm, width: 48 cm	Height 58 cm, width: 48 cm	/
Number of lifting legs	5 full hydraulic legs	5 full hydraulic legs	5 full hydraulic legs

1. Leading performance: Customized lifting height according to customer requirements, the performance leading in 5%. The grade ability is 40%, which make the machine have good road adaptability.
2. The unique U boom and plug-in boom head make the load-carrying capacity more balanced, and lift more smoothly.
3. The unique stretch and retract technique prevents the misoperation; the stretch and retract of the boom is safer and more reliable.
4. The control system is optimized by 8 patents; lifting, rotation, and luffing are easy and reliable.
5. Six unique technologies supply the quality assurance, and make the products keep a high value.
6. The innovative jib system adopts embedded block, plug-in boom head and octagon jib, which has excellent lifting performance and safe and reliable lifting work.
7. The unique stretch and retract technique avoids the bend of the core pipe and cylinder and the break of the boom caused by misoperation, improving the safety of the operations.
8. Eight patent techniques ensure the smooth, high efficiency and energy conservation of the lifting, rotation, and luffing systems.
9. Adopt the new hydraulic motor with big torque starting point, making the secondary lifting safer.
10. The humanity design makes the cab and control cab more spacious, and easy to operate.
