• Model NO.：RT35
• Max. Lifting Moment of Basic Boom：1344kn.M
• Max.Lifting Moment of Longest Boom：870kn.M
• Max. Lifting Height of Longest Boom：31m
• Transport Package：Nude Package
• Specification：11935*2980*3600mm
• Trademark：Zoomlion
• Origin：China
• HS Code：8705109100
• Production Capacity：50unit,Month

Product Parameters

Type

Item

Unit

Value

Working performance

Max. rated lifting weight × working radius

kg.m

35000×3.0

Max. lifting moment of basic boom

kN.m

1344

Max.lifting moment of longest boom

kN.m

870

Max. lifting height of longest boom

m

31

Max. lifting height of jib

m

46

Dimensions

Outline dimensions (L×W×H)

mm

11935×2980×3600

Distance between outriggers (Longitudinal × transversal)

mm

6810×6800

Main boom length (completely retracted - completely extended)

mm

9800~31000

Jib length (completely retracted - completely extended)

mm

9088~15028

Main boom angle of elevation

°

-3~78

Swing range

360°continuously

Working speed

Max.speed of single rope on the drum of main winch

m/min

150

Boom extension time

s

70

Boom retraction time

s

75

Boom derricking up time

s

46

Boom derricking down time

s

47

Swing speed

r/min

0~2.5

Hydraulic system

Rated working pressure

MPa

27

Rated working flow

L/min

400

Hydraulic oil tank capacity

L

600

Mass

Complete vehicle kerb mass

kg

32000

Front axle load

kg

15030

Rear axle load

kg

16970

Traveling

Max. traveling speed (forwards / backwards)

km/h

38/15

Wheelbase

mm

3820

Treads (front / rear)

mm

2444

Max. gradeability

%

57

Min. turning radius (outer edge of the vehicle body)

m

6.5

Min. turning radius (2 wheels)

m

11.25

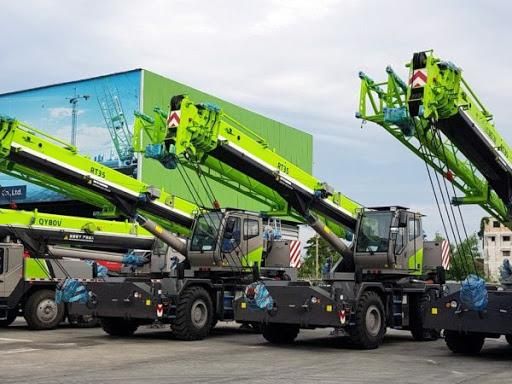

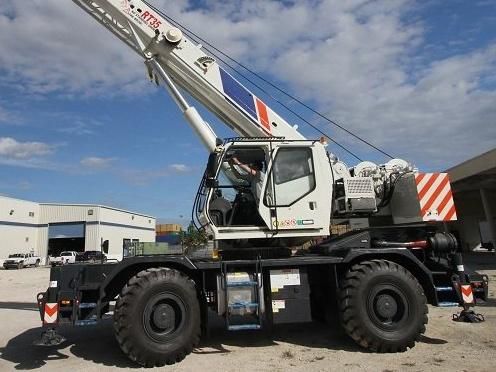

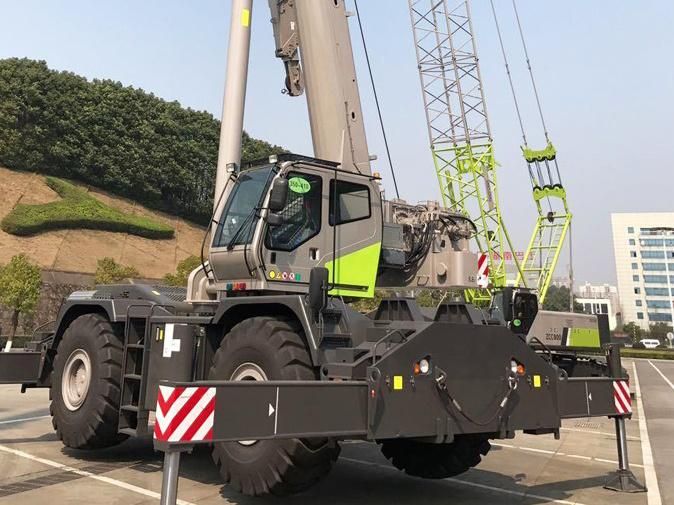

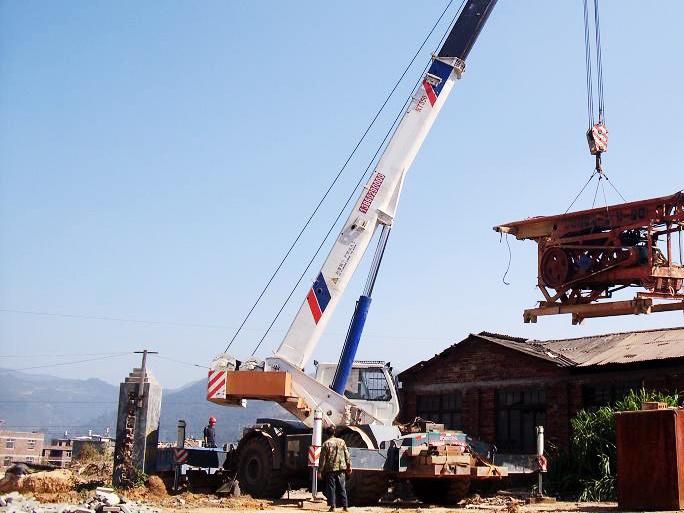

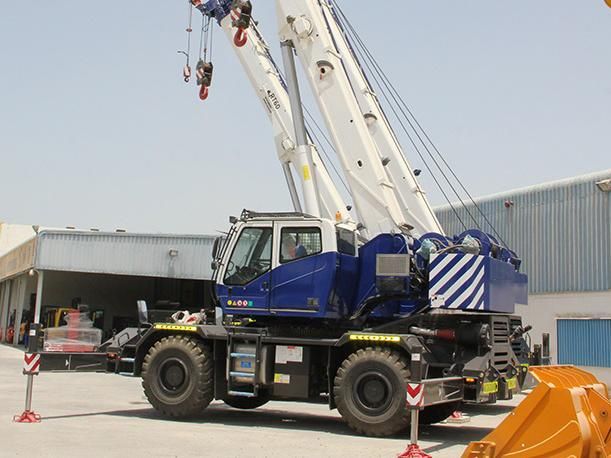

 Detailed Photos

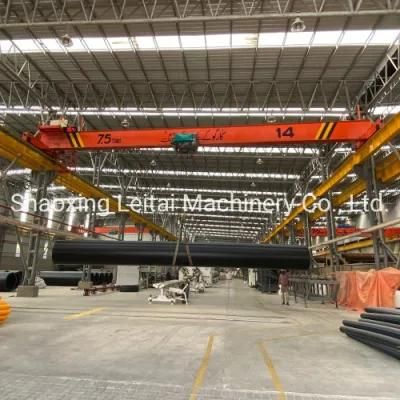

Company Profile
