• Model NO.：LD
• Type：Ordinary
• Product Name：Workshop Overhead Crane
• Power Source：220V,380V,415 on Request
• Color：Industrial Yellow ,Red or on Request
• Girder Type：Box Type
• Insulation：F
• Application：Steel Mills, Warehouse,Hydropower Station,Producti
• Motor：Gear Motor
• Warranty：2 Years
• Aftersale Service：Engineer Overseas Service Available
• Electric Parts：Siemens Delixi
• Lifting Spped：8m,5m Per Minute
• Hoist Type：Rope Hoist
• Cross Speed：0~20m ,Min
• Work Duty：A3 A5 A6
• Lift Capacity：on Customer′s Request
• Transport Package：Standard Export Package
• Specification：Material: Q235B,Q345B
• Trademark：Mingdao
• Origin：China
• HS Code：8426112000
• Production Capacity：1000sets, Year

Basic Info.

Model NO. LD Type Ordinary Product Name Workshop Overhead Crane Power Source 220V/380V/415 on Request Color Industrial Yellow /Red or on Request Girder Type Box Type Insulation F Application Steel Mills, Warehouse,Hydropower Station,Producti Motor Gear Motor Warranty 2 Years Aftersale Service Engineer Overseas Service Available Electric Parts Siemens Delixi Lifting Spped 8m/5m Per Minute Hoist Type Rope Hoist Cross Speed 0~20m /Min Work Duty A3 A5 A6 Lift Capacity on Customer′s Request Transport Package Standard Export Package Specification Material: Q235B/Q345B Trademark Mingdao Origin China HS Code 8426112000 Production Capacity 1000sets/ Year

Product Description

Electric Hoist Lifting Equipment Overhead Crane Exported to Saudi Arab

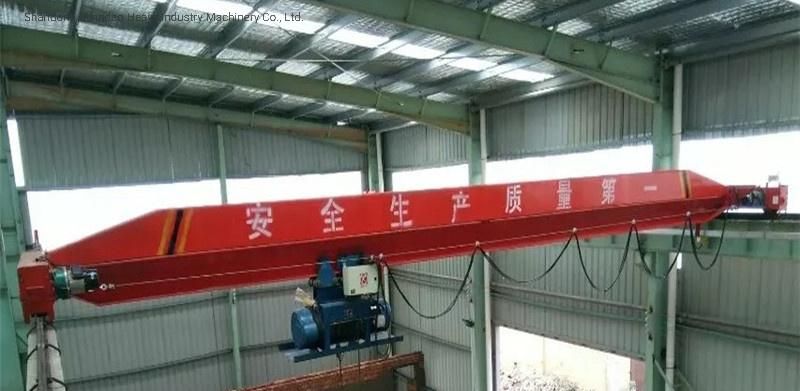

LD model single girder overhead crane is characterized by more reasonable structure and higher strength steel as a whole crane.
Single girder overhead crane is more typical when lifting capacity less than 20T.

Used together with CD1  model MD1 model electric hoist as a complete set, it is a light duty crane with a capacity 0.5 ton ~ 32ton.
The span is 7.5m~ 22.5m. Working duty is A3~A5, working temperature is -25-40ºC.
This product is widely used in steel mills, warehouse,hydropower station,production workshop, production line, materials stocks,
equipment assembly etc to lift goods.

We have comprehensive standard equipment and professional design engineers to offer best solutions for individual requirements.
This product has two operational methods, ground(pendent controller /remote controller) or operational cabin room .

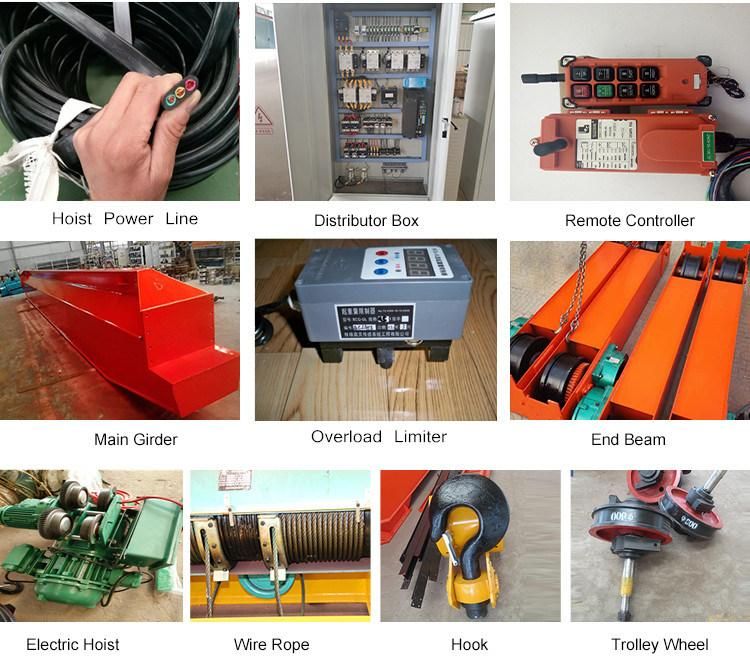

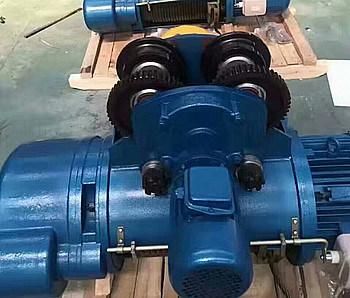

Lifting Mechanism	Wire Rope Hoist (CD/MD/European Type) Lift Speed: single/dual Travel speed:variable Function: Lift goods

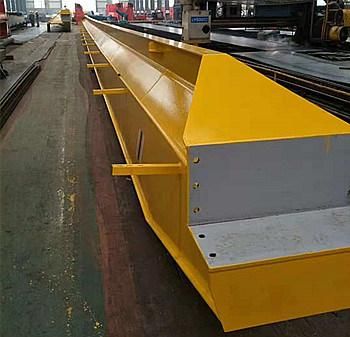

Main Girder/Beam	Rigid welded box type Module design Gear motor Travel speed:variable Function:Bearing load Material: Q235/345

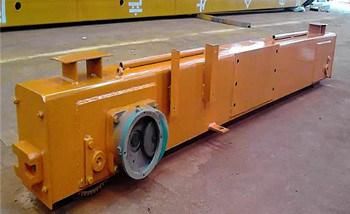

End Carriages	Rigid welded box type Modular design Function: Push crane run forward or reverse Materials:Q235/345

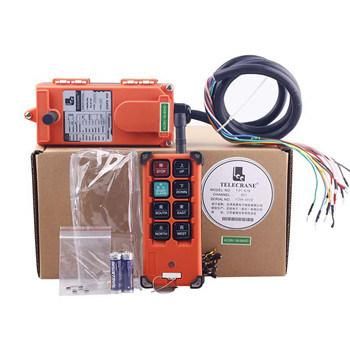

Control	Ground pendent button Radio Remote control Cabin control
Electric parts	Circuit breaker/ AC contactor etc electric parts use Schneider /Siemens/ABB/DELIXI Etc famous brand

Advantages of a single girder design:
1)Less expensive due to a simpler trolley design, reduced freight costs, simplified and faster installation, and less material for the
bridge and runway beams.

2)Most economical option for light to medium-duty cranes

3)Lower loads on the building structure or foundations due to a reduced deadweight. In many cases, it can be supported by existing
roof structure without the use of additional support columns.

4)Better hook approach for both trolley travel and bridge travel

5)Easier to install, service, and maintain

6)Ideal for workshops, warehouses, material yards, and manufacturing and production facilities

7)Lighter load on runway rails or beams means less wear on the beams and end truck wheels over time

8)Great for facilities with low headroom

Safe Devices:
1.Overload Limit Switch

2. Rubber Buffers 3.Electric Protective Devices

4.Emergency Stop System

5.Voltage Lower Protection Function

6. Current Overload Protection System

7. Rail Anchoring 8.Lifting Height Limit Device
