• Model NO.：OKT-16T
• Type：Straight Arm
• Truck Chassis：Dongfeng, Kaima
• Boom Length：8 Meter
• Boom Section：5 Section
• Boom Type：U Boom
• Rope Type：Inner Rope
• Leg Quantity：5
• Main Pump：Three Pump Confluence
• Winch：Double 12 Ton
• Crane Color：Yellow, White, Red
• Transport Package：Container
• Specification：16 ton loading
• Trademark：OUKE
• Origin：Jining
• HS Code：84269900
• Production Capacity：100 Sets, Month

Basic Info.

Model NO. OKT-16T Type Straight Arm Truck Chassis Dongfeng/ Kaima Boom Length 8 Meter Boom Section 5 Section Boom Type U Boom Rope Type Inner Rope Leg Quantity 5 Main Pump Three Pump Confluence Winch Double 12 Ton Crane Color Yellow, White, Red Transport Package Container Specification 16 ton loading Trademark OUKE Origin Jining HS Code 84269900 Production Capacity 100 Sets/ Month

Product Description

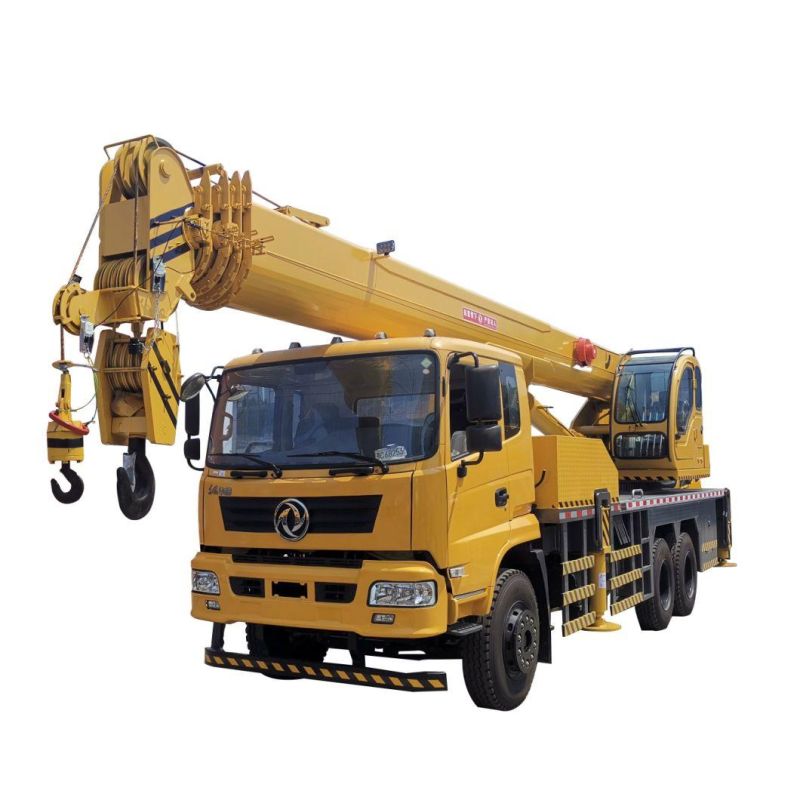

16Ton Dongfeng Lifting Height 33m 8X5 Mounted Mobile Crane with Truck

The optimizing layout of the machine makes the stress of the main bearing carriers more reasonable, and the lifting performance is higher than the products with the same tonnage.
• Apply the mature jib technique which integrates plug-in boom head, embedded boom block, and special telescoping mechanism, which makes the jib more stable and reliable.
• Optimize the stress design. Adopt the box-type outriggers which have larger span, stronger rigidity, and better stability.

Product parameters

No	Items
Chassis	Futian Ruiwo car crane special chassis.
Engine	YC4S140-50
tires	900R20
brake	air brake
Direction	Hydraulic boost
wheelbase	4400mm
the highest speed	85Km / h
single arm length	8m
boom number	5
boom structure	inner rope
thick section boom size	height 58 cm, width: 48 cm
Number of lifting legs	5 (two legs on the side, and auxiliary hind legs)
side leg structure	double leg, unilateral leg span 2 meters (from the body)
Outrigger span	spans 6.25 meters; longitudinal span: 5 meters
hydraulic system	three pump confluence system
Fan heat system	air-cooled fan heat system
motor	18.5kw (optional)
double winch	double inclined shaft plunger motor hydraulic winch
large structure	I-shaped steel box large frame
Appearance size	length 11250mm; width 2400mm; height 3300mm
the total quality	17500kg
