• Model NO.：OKT-12T
• Classic：Truck Crane Chassis
• Max. Rated Load：16tons
• Motor Power：18.5kw
• Top Speed：75km,H
• Engine：Cy4bk251
• Boom Section Number：5
• Single Arm Length：8m
• Wheelbase：4400mm
• Outrigger Span：Span: 6.25m; Longitudinal Span: 5m
• Brake：Air Brake
• Lifting Leg Number：5(Two Legs on Each Side and Auxiliary Hind Legs)
• Driving Direction：Hydraulic Booster
• Fan Heat System：Double Curved Neck Plunger Motor Hydraulic Winch
• Weight：17000kg
• Specification：11260mm*2330mm*3260mm
• Trademark：OUKE
• Origin：Jining
• HS Code：8705109100
• Production Capacity：100 Sets Per Month

ChassisChassis for Kama truck cranes.the engine4DX23-140E5tires825R20brakeair brakedirectionHydraulic boostwheelbase3815mmthe highest speed88Km / hsingle arm length7mboom number5boom structureinner ropethick section boom size height 58 cm, width: 48 cmNumber of lifting legs5 (two legs on the side, and auxiliary hind legs)side leg structuredouble leg, unilateral leg span 2 meters (from the body)Outrigger span 6.2 meters across; longitudinal span: 5 metershydraulic systemdual pump confluence systemFan heat systemair-cooled fan heat systemmotor15kwdouble winchdouble curved neck plunger motor hydraulic winchlarge structure I-shaped steel box large frameAppearance sizelength 10110mm; width 2250mm; height 3250mmthe total quality

14500kg

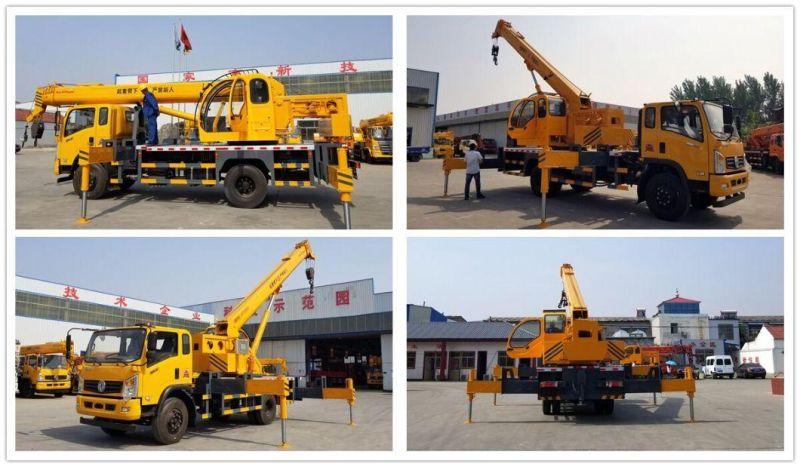

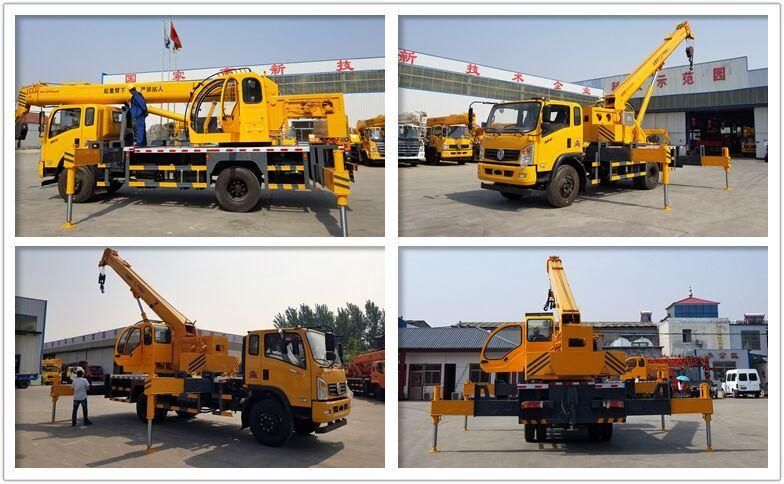

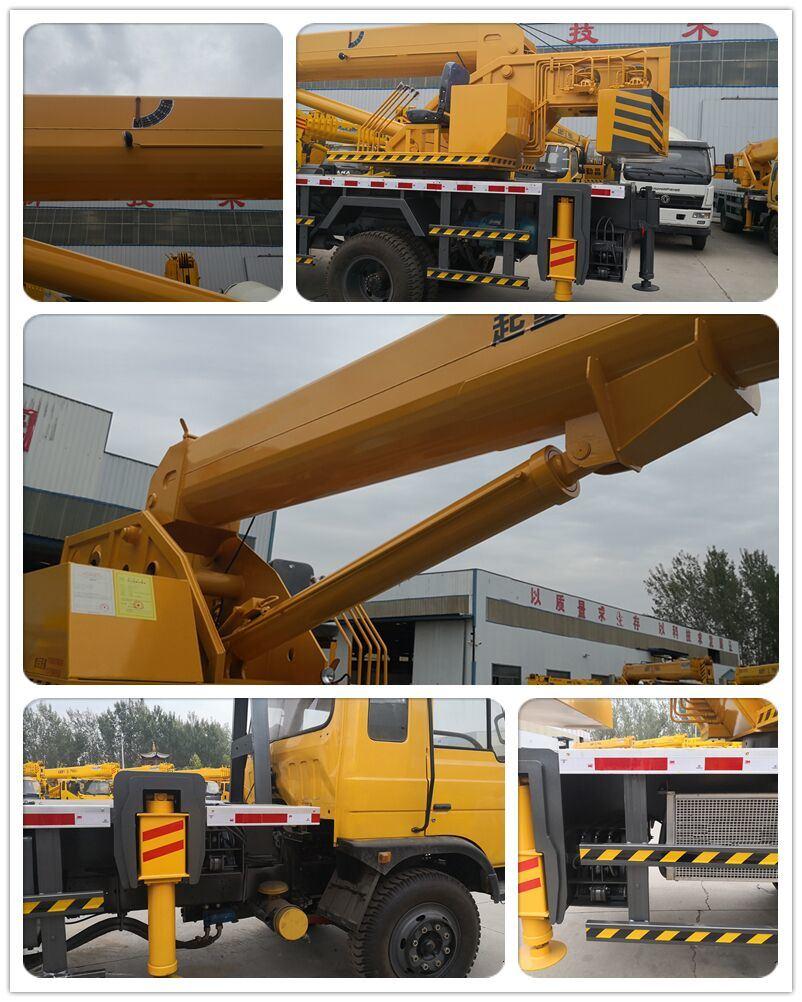

Product details

Our Product

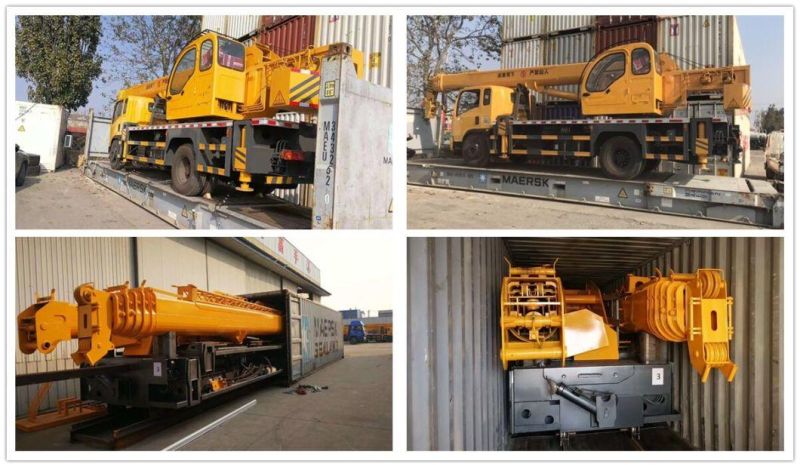

Our Packing
