• Type：Ordinary
• Product Name：European Type Overhead Crane
• Power Source：220V , 380V,415V on Acutual Using Condition
• Color：on Customer′s Request
• Girder Type：H
• Work Duty：Fem2m, M5
• Insulation：F
• Protection Class：IP55
• Cooling Rate：30% More Than Normal Crane
• Running：Rails
• Aftersale Service：Engineer Field Service , Online Service
• Power Supply：Bus Bar
• Lifting Speed：8m,5m Per Minute
• Crane Tye：Top Running , Under Running
• Brand：Mingdao
• Warranty：2 Years
• Transport Package：Memberane Proof +Container
• Specification：Materials: Q235B,Q345B
• Trademark：Mingdao
• Origin：China
• HS Code：8426112000
• Production Capacity：1000sets, Year

High reliability, safety, free maintenance rate a) Work duty: FEM2M, M5
 b) Protection class: IP55
 c) Insulation class: F
 d) Continuing rate: 60% ( for the high class motor)
 e) Cooling rate: 30% than normal crane
 f) Over temperature protection: 170ºCCompact designsmall size, low self weight, low headroom
Low NoisePower-savedThe total motor power is much lower than normal design
Main Girder:
1. Main girder uses bias-rail box type structure, with optimized design and light dead weight.
2. Steel material. Q235B / Q345B.
3. The cover and web plate should get surface rust removal by roller-way conveyor blasting machine before welding;this blasting machine can perform blanking, sandblasting, painting and drying.
4. The welding work of main girder should be performed on work platform (welding assembly unit). In order to avoid distortion of main beam, we adopts U-shaped welding assembly unit to assure that vertical deflection degree between the top cover plate and joint edge of stiffened plate and web plate is no more than H/200, and also effectively reduce the partial wave of web plate.



End Carriage:1Material use Q235B/ Q355B.2It is made of rectangular steel-pipe or steel plate by welding, the finished end carriage get 1-time positioning process on numeral control machine in order to ensure dimension accuracy and fit tolerance.3Each end carriage is supplied with wheels with double-wheel rim, buffer and anti-derailing protection device.






Control:
Pendent button control or radio remote control is on customer



Shipping way of Mingdao Cranes:

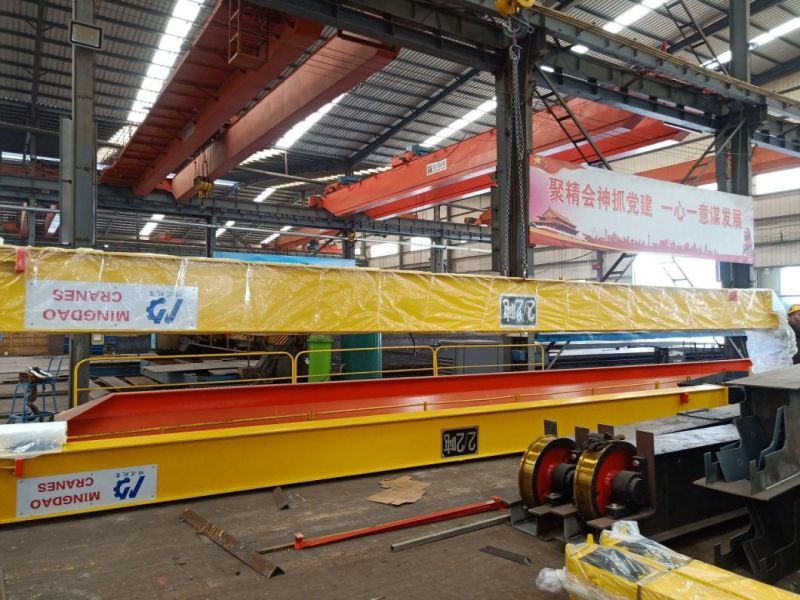

♦ Electric parts are packed by high quality plywood crate, to reduce distortion in conveying.

♦ Main beams, end beams and trolly/winch are packed by plastic woven cloth. It can reduce

   abrasion during the transportation.

♦ If the size are suitable for container ship, usually by container.

♦ Big size, usually by bulk ship or by container after truncation.

♦ Transport ways are based on reducing cost & keep safety.


FAQ
--------

Q1. Can the cranes be customized?
Yes,every customer's working condition is different, all of our products can be customized depend on customers' requirements. Please
give us the information as clear as you can, so we can give our best design to suit for your demands.

Q2. How many operation methods for my selections?
We provide pendent controller with push button control type, remote control type or cabin control type.Please tell us what kind of
operation way you need.

Q3. I have low headroom in my workshop, is it possible to install a crane in it?
We have special products for low headroom workshop, our engineer can give the best design according to your dimensions.

Q4. Do you supply lift tools?
Yes, we can provide any kind of lifting tools such as hook, electromagnetic, grab bucket etc...

Q5: In order to offer the most suitable design solution for you, it will be great helpful if you can offer us the following information to us:

1. Lifting capacity.

2. Span length.(rail center to rail center)

3. Lifting height.(hook center to ground)

4. Have you installed the rails? Do you need us to supply the rails? How long is it? 5. Power supply: Voltage.

5. Working condition: what kind of material to lift? temperature?

6. It would be much better if it is possible for you to offer the drawing photo of your workshop.
