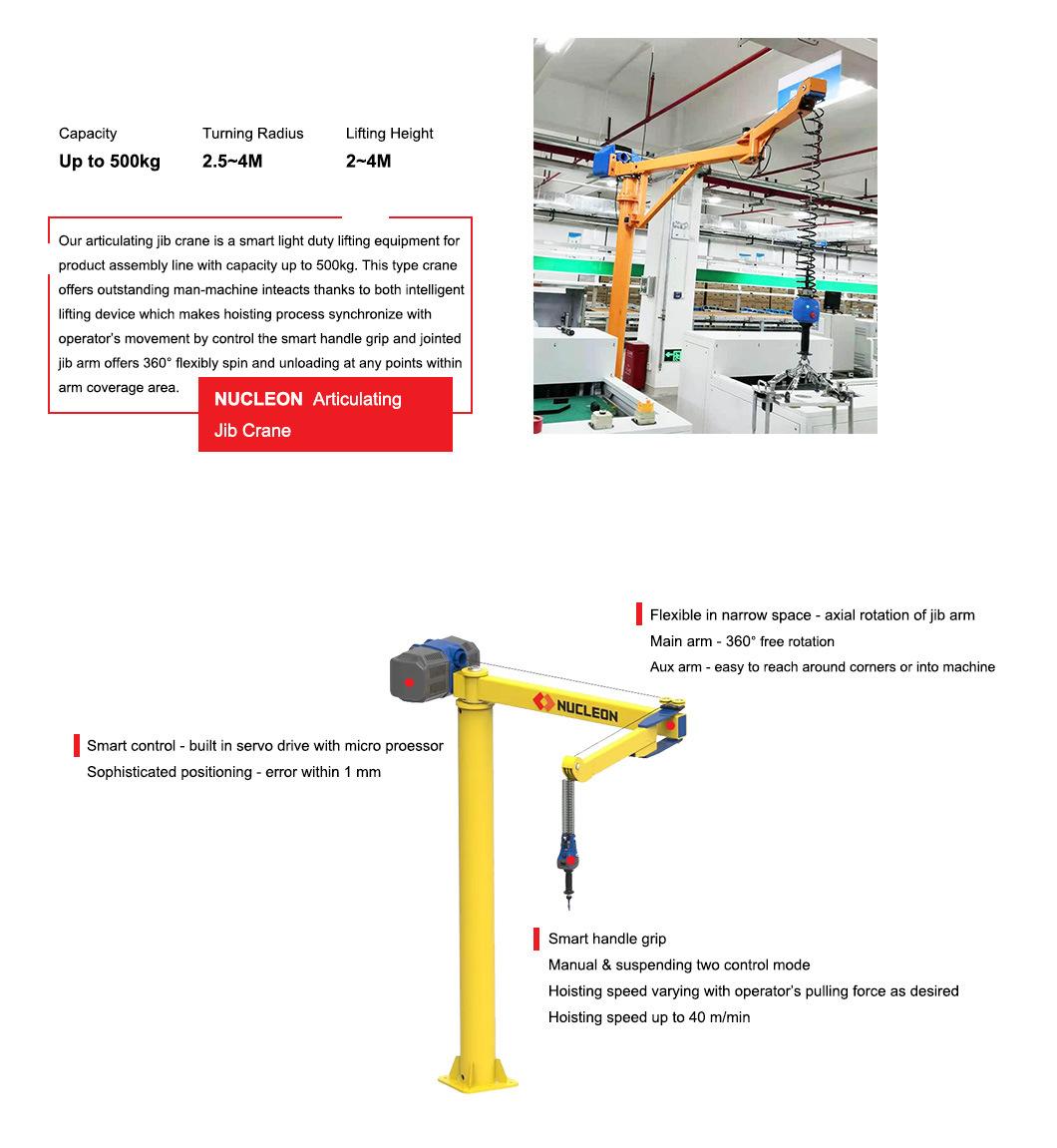

up to 500kg Ergonomic Free Standing Articulating Jib Crane for Workstation 360 Degree Arm Rotate
Nucleon (Xinxiang) Crane Co., Ltd.- After-sales Service：Technical Advisory of Installation & Commissioning
- Warranty：12 Months Warranty After Successful Installation
- Certification：CE
- Condition：New
- Application：Workshop, Warehouse, Construction Site
- Anchor：Whole-Buried
Base Info
- Model NO.：NBZ-C
- Structure：Solid Web
- Material：Steel
- Type：Cantilever
- Load Capacity：up to 500kg
- Turning Radius：up to 4 Meters
- Height of Lift：up to 3 Meters
- Control：Hand Grip,Radio Remote
- Power Supply：220~480V, 50~60Hz, 3phase
- Hoisting Speed：up to 40 M,Min
- Rotate Speed (Main Arm)：Manual
- Rotate Speed (Aux Arm)：Manual

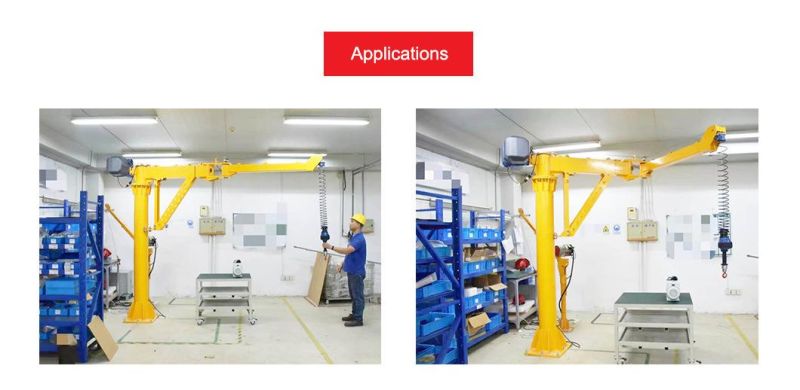

- Applications：Warehouse, Workstation, Machining Shop
- Lead Time：Within 30 Days
- Lifting Device Options：Intelligent Lifting Device,Air Balancer
- Random Files：Operation & Maintenance Manual, Wiring Diagram
- Spare Parts：Provide Random Spares for Two Year Maintenance
- Transport Package：Wooden Case, Waterproof Film
- Specification：360 Degree Rotate(main arm),270 Degree(Aux arm)
- Trademark：Nucleon Crane
- Origin：Henan, China
Description
Basic Info.
Model NO. NBZ-C Structure Solid Web Material Steel Type Cantilever Load Capacity up to 500kg Turning Radius up to 4 Meters Height of Lift up to 3 Meters Control Hand Grip/Radio Remote Power Supply 220~480V, 50~60Hz, 3phase Hoisting Speed up to 40 M/Min Rotate Speed (Main Arm) Manual Rotate Speed (Aux Arm) Manual Applications Warehouse, Workstation, Machining Shop Lead Time Within 30 Days Lifting Device Options Intelligent Lifting Device/Air Balancer Random Files Operation & Maintenance Manual, Wiring Diagram Spare Parts Provide Random Spares for Two Year Maintenance Transport Package Wooden Case, Waterproof Film Specification 360 Degree Rotate(main arm)/270 Degree(Aux arm) Trademark Nucleon Crane Origin Henan, ChinaProduct Description
Specifications| Item | 100kg | 200kg | 300kg | 500kg |
| Turning Radius | 2.5~4m | 2.5~4m | 2.5~3.5m | 2.5~3.5m |
| Lifting Height | 2~4m | 2m | 2~4m | 2m |
| Lifting Speed (hand grip mode) | 40m/min | 30m/min | 15m/min | 7.5m/mmin |
| Lifting Speed (Floating mode) | 36m/min | 27m/min | 13.5m/min | 6.75m/min |
| Turning Method | Manual | Manual | Manual | Manual |
Customer Service
1. Installation service of overhead crane available with:
Video tutorial support for whole installation process.
7/24 remote assistance for crane installation guidance and commissioning.
2. Twelve months warranty after successful crane commissioning.
