25ton Lifting Capacity Mobile Telescopic Boom Truck Mounted Crane
JINING OKING TEC CO., LTD.- Certification：ISO9001
- Condition：New
- Maximum Lifting Height：30-40m
- Maximum Lifting Weight：>16t
- Shaft Number：2
- Crane Jib：Five-Arm
Base Info
- Model NO.：OKT-25T
- Type：Folding
- Truck Brand：Kama , Foton , Dongfeng
- Overall Dimension：11620mm*2440mm*3550mm
- Max. Lifting Height：33 M
- Engine：Yuchai Diesel Engine
- Transport Package：Fr Container
- Specification：25000 kgs
- Trademark：OUKE
- Origin：Jining, China
- HS Code：8705102100
- Production Capacity：20 Unit , Month
Description
Basic Info.
Model NO. OKT-25T Type Folding Truck Brand Kama / Foton / Dongfeng Overall Dimension 11620mm*2440mm*3550mm Max. Lifting Height 33 M Engine Yuchai Diesel Engine Transport Package Fr Container Specification 25000 kgs Trademark OUKE Origin Jining, China HS Code 8705102100 Production Capacity 20 Unit / MonthProduct Description

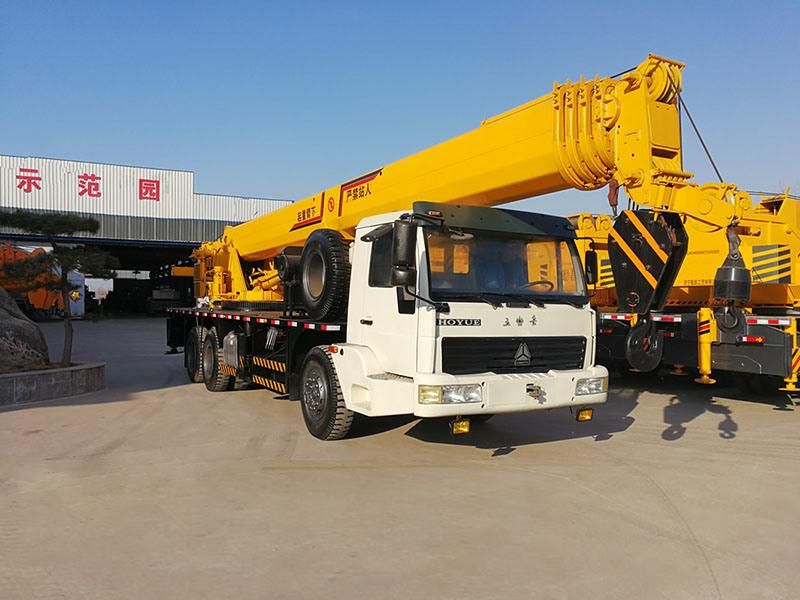

25ton Lifting Capacity Mobile Telescopic Boom Truck Mounted Crane
The optimizing layout of the machine makes the stress of the main bearing carriers more reasonable, and the lifting performance is higher than the products with the same tonnage.
• Apply the mature jib technique which integrates plug-in boom head, embedded boom block, and special telescoping mechanism, which makes the jib more stable and reliable.
• Optimize the stress design. Adopt the box-type outriggers which have larger span, stronger rigidity, and better stability.
Technology
| Maximum rated starting weight | 25T |
| Engine power | 196kw |
| Axle | Front single bridge rear double bridge |
| Tire | 1100-20 |
| Wheelbase | 4.3 meters 5.7 meters |
| Tread | 2.5 meters |
| Brake | Air brake |
| Driving direction | Power steering |
| Basic ARM length | 10 m |
| Number of large arms knots | 4 knots |
| Longest arm length | 34 meters |
| Maximum lifting height | 34 meters (from the ground) |
| Maximum elevation angle of boom | 75 degrees |
| Lifting arm Minimum elevation angle | 0.5 degrees |
| Maximum rotation speed (empty | 2.4r/min |
| Minimum rotation speed (full load): | 0.3 r/min |
Amplitude time: Full starting arm: The whole drop arm: 46 Telescopic time: Full extension arm: 92s full Arm | Full arm: 85 s full arm: 46 telescopic time: full arm: 92s 75s |
| legs | 5 full hydraulic legs |
| Vertical span of legs (front and rear): | 5.55 meters |
| Lateral span of leg (side): | 6.1 meters |
| Length, Width and height | 13.5 meters 2.5 meters 3.5 meters |
| Dual hoist | Double hydraulic winch hoist |
