• Model NO.：MHH
• Type：Common Gantry Crane
• Main Girder Form：Single Girder
• Product Name：Mini Gantry Crane
• Power Source：220V,380V,415V or on Request
• Color：Industrial Yellow,Red or on Request
• Girder Type：Box Type
• Insulation：F
• Moving Type：Wheels Running
• Application：Widely Applied for Indoor and Outdoor Workplaces
• Aftersale Service：Engineer Overseas Service Available
• Electric Parts：Schneider
• Hoist Type：Rope Hoist , Chain Hoist on Request
• Work Duty：A3-A5
• Lift Capacity：on Request
• Motor：Gear Motor
• Delivery Time：7 Days
• Transport Package：Standard Package for Ocean Shipping or Railway
• Specification：Materials: Q235B,Q345B
• Trademark：Mingdao
• Origin：China
• HS Code：8426193000
• Production Capacity：1000sets, Year

Loading capacity0.25 ~ 6.5tLifting height3 ~ 10 m or customizedLifting speed

Single speed: 3~ 8 m/min; or customized

Variable frequency speed: 1 ~ 20 m/min; or customized

Span3~10 mLifting mechanismHoist trolleyWorking classA2 ~ A3Working temperature-20 ~ 40 ºCPower supplyAC-3Phase-220//230380/400/415/440V-50/60HzControl voltageDC-24 / 36VMotor protection classIP54 IP55 IP65Control wayGround handle control(Push button),wireless remote controlSafety deviceBuffer, current overload protection,overload device,power failure protectionApplication areaFactory,workshop,warehouse,power station,logistic,etc.Painting colorYellow,Red or Customized

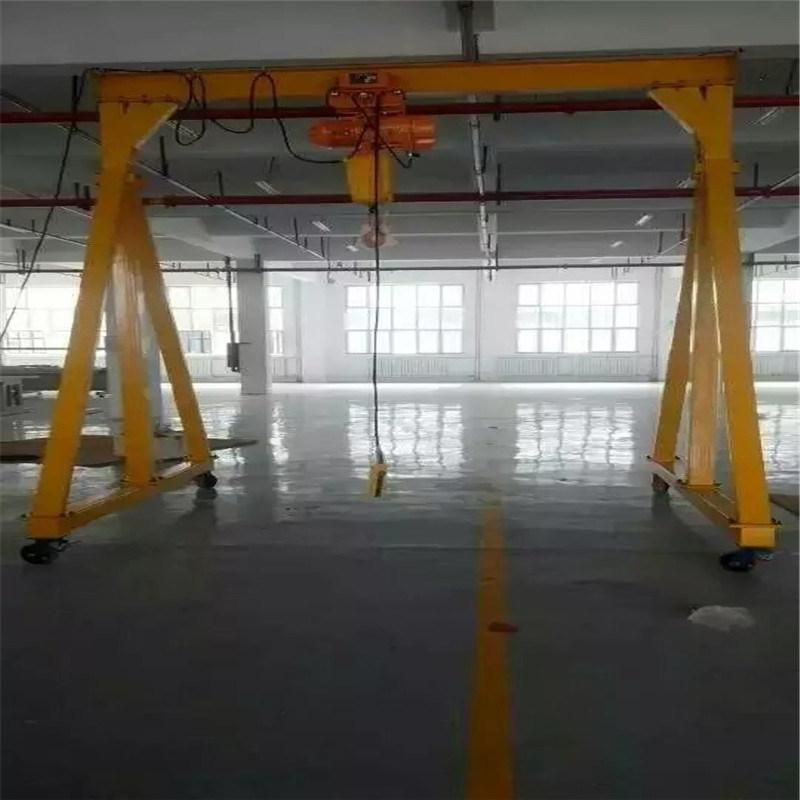

                                               Hand Push Flexible Wheels Running Type Gantry Frame(rope hoist)

Customized made gantry crane accepted according to client's actual using conditions.


Safety Devices for  Gantry crane:
To guarantee the normal operation of crane and avoid the personal casualty and mechanical damage, the safety device we provide are not only the electric protective devices or alarm bell but also other equipments as following:

1.Overload Limit Switch
2. Rubber Buffers
3.Electric Protective Devices
4.Emergency Stop System
5.Voltage Lower Protection Function
6. Current Overload Protection System
7. Rail Anchoring
8.Lifting Height Limit Device
Installation for customers:

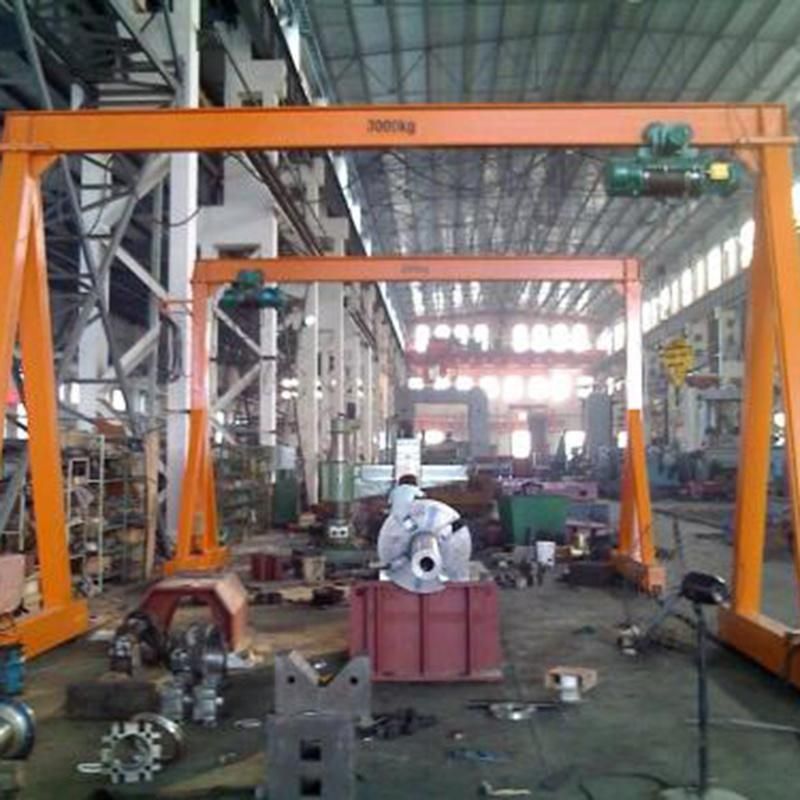

                                                Rail Running Type Gantry Frame (chain hoist)


                                                          Gantry Frame with Flexible Wheels (chain hoist)
Package & Delivery
CUSTOMER FEEDBACK FAQ

Q1. Can the cranes be customized?
Yes,every customer's working condition is different, all of our products can be customized depend on customers' requirements. Please give us the information as clear as you can, so we can give our best design to suit for your demands.

Q2. How many operation methods for my selections?
We provide pendent controller with push button control type, remote control type or cabin control type.Please tell us what kind of operation way you need.

Q3. I have low headroom in my workshop, is it possible to install a crane in it?
We have special products for low headroom workshop, our engineer can give the best design according to your dimensions.

Q4. Do you supply lift tools?
Yes, we can provide any kind of lifting tools such as hook, electromagnetic, grab bucket etc...

Q5: In order to offer the most suitable design solution for you, it will be great helpful if you can offer us the following information to us:
1. Lifting capacity.

2. Span length.(rail center to rail center)

3. Lifting height.(hook center to ground)

4. Have you installed the rails? Do you need us to supply the rails? How long is it? 5. Power supply: Voltage.

6. Working condition: what kind of material to lift? temperature?

7. It would be much better if it is possible for you to offer the drawing photo of your workshop.
