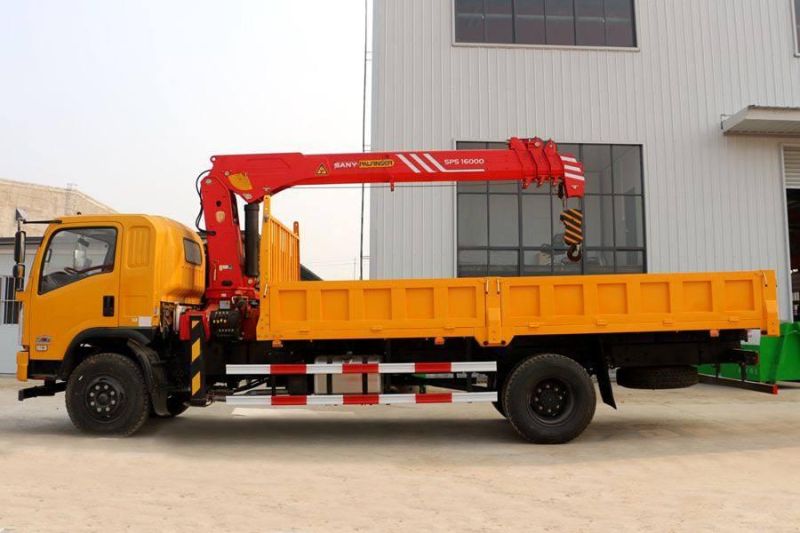

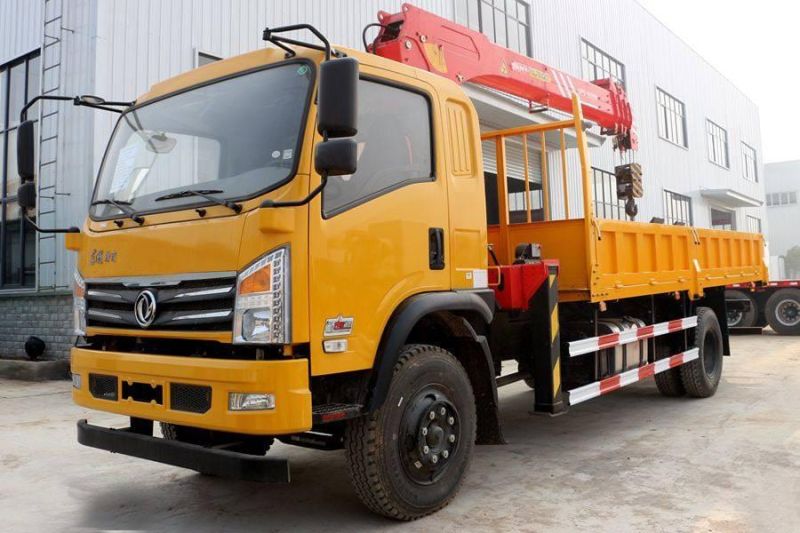

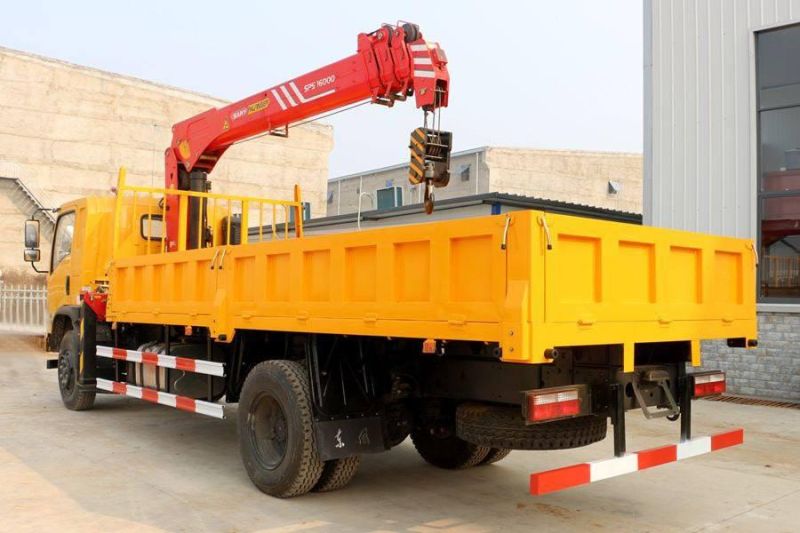

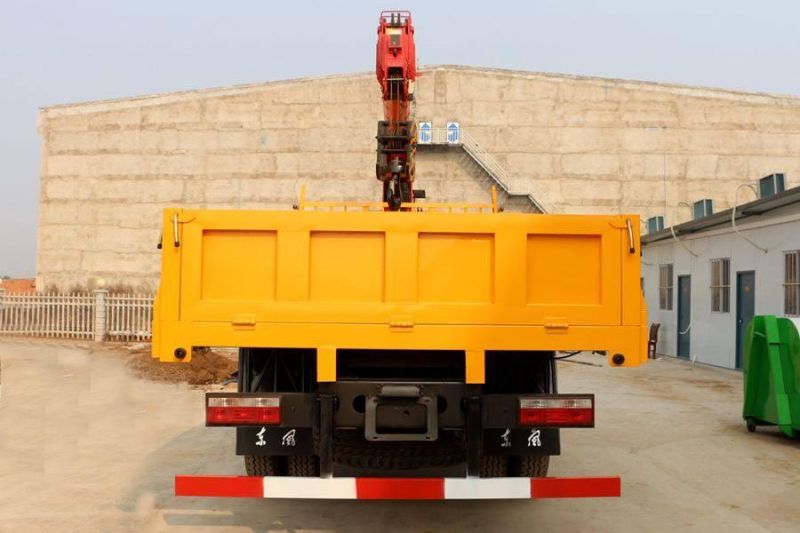

Light Duty Tow 8t Truck with Rotating Arm Crane

HUBEI RUILI AUTOMOBILE CO., LTD.
  • Certification：CE
  • Condition：New
  • Maximum Lifting Height：10-15m
  • Maximum Lifting Weight：8-10t
  • Shaft Number：2
  • Crane Jib：Four-Arm

Base Info

  • Type：Straight Arm
  • Chassis：Dongfeng
  • Gearbox：6 Forward & 1 Reverse Gear
  • Working Radius：14 M
  • Rotation Angle：360 Degree All Rotation
  • Logo：as Per Customer′s Request
  • Engine：180 HP
  • Warranty：1 Year
  • Crane Weight：3820kg
  • Max Lifting Height：16.1m
  • Installation Space：2280-5600mm
  • Crane：8ton
  • Max. Lifting Capacity：8000 Kg
  • Transport Package：Naked, Waxed, Bulk Ship, RO-RO
  • Specification：9000x2495x3550 mm
  • Trademark：CLW
  • Origin：Suizhou, China
  • HS Code：8705909090
  • Production Capacity：500 Unit,Month

Description

Chassis SpecificationItem No.ParametersChassis BrandDongfengOverall Dimension9000X2480X3650mmGross Vehicle Weight13580  kgCurb Weight8300  kgLoading Weight5805  KgFront/rear  axle loading capacity5000/10000kgWheel Base5100 mmCabinSingle, Left Hand Driving, 2 Passenger AllowedEngineTypeDiesel Engine Engine horsepower160 HP EURO IIGearboxManual ,  6 Forward & 1 Reverse GearBrake SystemAir BrakeSteering GearPower AssistantTire9.00-20, 6 Pieces with 1 SpareMax Driving Speed90 km/hCargo compartmentMaterialQ235Dimension5700X2250X550mmThickness3mm for side /4 mm for the bottomTechnical parameter of craneCrane  Model8 Ton 4 Arms Telescopic Boom CraneCrane Weight3820 kgMax. Lifting capacity8000 kgMax lifting height16.1MWorking radius14 MInstallation space2280-5600mmRotation angle360°All rotationOptional1. Seat
2. Hydraulic Lift system
3. Landing LegRemarks1. Color is optional
2.Customized LOGO painting as per customer request
Light Duty Tow 8t Truck with Rotating Arm Crane
Light Duty Tow 8t Truck with Rotating Arm Crane
Light Duty Tow 8t Truck with Rotating Arm Crane
Light Duty Tow 8t Truck with Rotating Arm Crane
Light Duty Tow 8t Truck with Rotating Arm Crane
Light Duty Tow 8t Truck with Rotating Arm Crane
Light Duty Tow 8t Truck with Rotating Arm Crane
Light Duty Tow 8t Truck with Rotating Arm Crane
Light Duty Tow 8t Truck with Rotating Arm Crane
Light Duty Tow 8t Truck with Rotating Arm Crane
