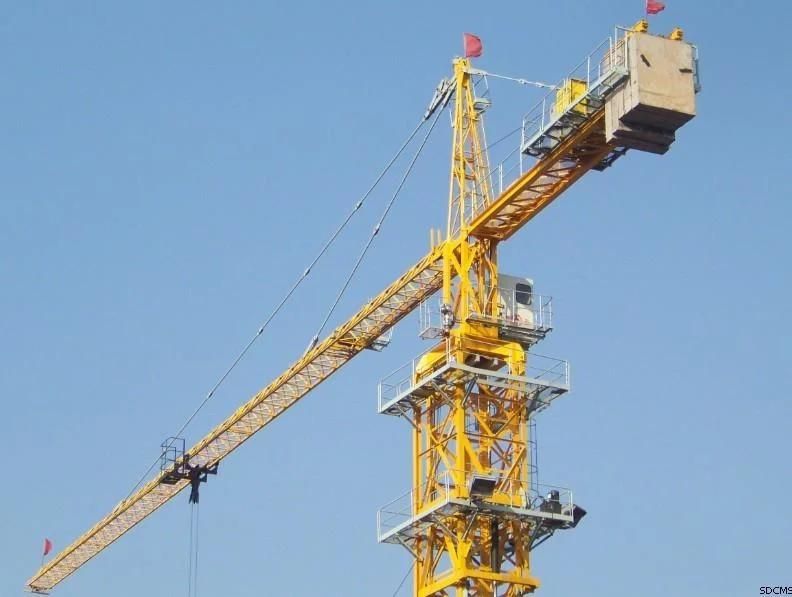

Zoomlion 16 Ton Flat Top Tower Crane T7525-16 with Factory Price
Sinomada Heavy Industry (Changsha) Co., Ltd.- Certification：CE, ISO9001
- Condition：New
- Maximum Lifting Height：75m
- Maximum Lifting Weight：16ton
- Installation：Assembled
- Moving Type：Orbital
Base Info
- Model NO.：T7525-16
- Type：Under-Slewing Crane
- Min. Jib Length：3.5m
- Hoisting Capacity at Jib Tip：2.5ton
- Hoisting Mechanism：H55FL40-700
- Hoisting Power：55kw
- Rope Capacity：700m
- Slewing Mechanism：S75fa-130.195lb14,12b
- Slewing Power：2*7.5kw
- Trolleying Mechanism：Bp75A
- Trolleying Power：7.5kw
- Max. Lifting Moment：250t.M
- Transport Package：Container,RO-RO
- Specification：60m
- Trademark：ZOOMLION
- Origin：China
- HS Code：8426200000
- Production Capacity：100,Month
Description
Rated liftingmoment(kN.m)200 Max.liftingheight(m) Free-standingstationarycrane 60 Anchoredcrane 216 Workingradius(m) Max.workingradius 75 Min.workingradius 3.5 Max.liftingcapacity(t) 16 Hoistingmechanism Ropefall α=2 α=4 Speed(m/min) 36 90 18 45 Liftingweight(t) 8 2 16 4 Power(kW) 60 Slewingmechanism Speed(m/min) 0~0.7 Power(kW) 2×7.5kw Trolleyingmechanism Speed(m/min) 0~80 Power(kW) 7.5
