Durable Operation Cab Comfortable Seat China Truck Crane Safe Working Environment
JINING HENGWANG CONSTRUCTION MACHINERY CO., LTD.- After-sales Service：Video Technical Support, Online Support
- Warranty：12months
- Certification：CE, ISO9001
- Condition：New
- Maximum Lifting Height：30-40m
- Maximum Lifting Weight：11-13t
Base Info
- Model NO.：HWQY12T
- Shaft Number：3
- Crane Jib：Five-Arm
- Type：Straight Arm
- Max Rated Hoisting Weight：Double Hook 10000kg,6000kg
- Max Hoisting Height：35m (5 Meters 7 Sections)
- Single Leg：6*1.3m
- Transport Package：Bare Metal
- Specification：8*2.06*3m
- Trademark：HW
- Origin：China
- HS Code：8428909090
- Production Capacity：300unit,Month
Description
Overview

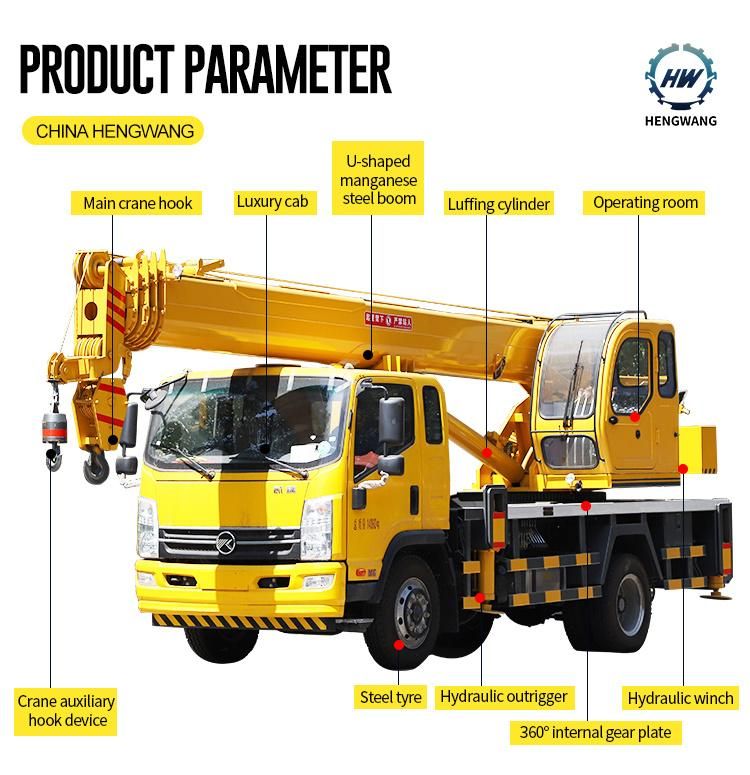

Product Description
Model
HWQY12T
Slewing bearing
Internal tooth 1.4m
Power
95KW(130Hp)
Slewing mechanism
planetary steering
Weight
13000kg
Outrigger
5 full hydraulic outriggers (double section)
Overall dimensions
10.2m*2.35m*3.4m
Outrigger span
6250mm
wheelbase
3800mm
Outrigger span (single)
5800mm
Maximum rated lifting weight
12000kg
Protector
biliateral pilot-controlled valve
Maximum lifting height
30m,35m
working lamp
2pcs
Engine model
4105
Hydraulic pump
Double pump 50/40
Gearbox model
6-speed transmission
Oil electric amphibious
15KW IP6-pole motor 40/32
Braking System
automatically air-cut brake
Boom structure type
7m x 6section
Steering mechanism
Hydraulic Power Steering
Main hoisting mechanism
12T winch
Boom size
520mm*350mm
Secondary hoisting mechanism
8T winch
