• Model NO.：LD
• Type：Ordinary
• Product Name：Workshop Overhead Crane
• Power Source：220V,380V,415 on Request
• Color：Industrial Yellow ,Red or on Request
• Girder Type：Box Type
• Insulation：F
• Application：Steel Mills, Warehouse,Hydropower Station,Producti
• Motor：Gear Motor
• Warranty：2 Years
• Aftersale Service：Engineer Overseas Service Available
• Electric Parts：Siemens Delixi
• Lifting Spped：8m,5m Per Minute
• Hoist Type：Rope Hoist
• Cross Speed：0~20m ,Min
• Work Duty：A3 A5 A6
• Lift Capacity：on Customer′s Request

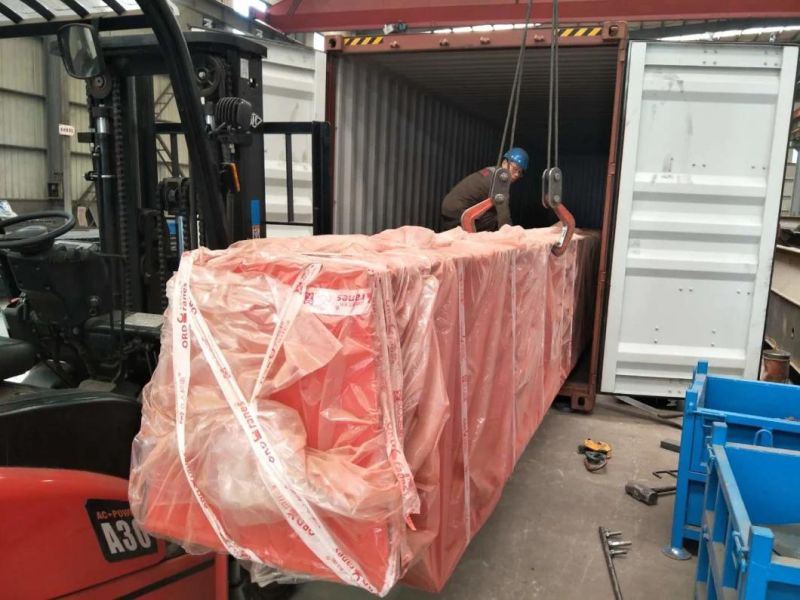

• Transport Package：Standard Export Package
• Specification：Material: Q235B,Q345B
• Trademark：Mingdao
• Origin：China
• HS Code：8426112000
• Production Capacity：1000sets, Year

Main Parameters ListCrane Traveling MechanismTraveling Speed(m/min)20Ratio58.95MotorTypeCone Squirrel-cagePower(kw)0.8*2, 1.5*2, 2.2*2Rotary Speed(r/min)1380Hoist Lifting Mechanism and Traveling MechanismElectric Hoist ModelMD1Lifting Speed(m/min)8/0.8, 7/0.7, 3.5/0.35Span(m)7.5-22.5 or assignedLifting Capacity(t)0.5-32Lifting Height(m)6, 9, 12, 18, 24, 30Traveling Speed(m/min)20, 30MotorCone Squirrel-cageWork DutyIntermediate Jc=25%Power Supply380V 50HZ 3PWheel DiameterΦ270, Φ400Trail Width37-70
Advantages of a single girder design:
1)Less expensive due to a simpler trolley design, reduced freight costs, simplified and faster installation, and less material for the
bridge and runway beams.

2)Most economical option for light to medium-duty cranes

3)Lower loads on the building structure or foundations due to a reduced deadweight. In many cases, it can be supported by existing
roof structure without the use of additional support columns.

4)Better hook approach for both trolley travel and bridge travel

5)Easier to install, service, and maintain

6)Ideal for workshops, warehouses, material yards, and manufacturing and production facilities

7)Lighter load on runway rails or beams means less wear on the beams and end truck wheels over time

8)Great for facilities with low headroom

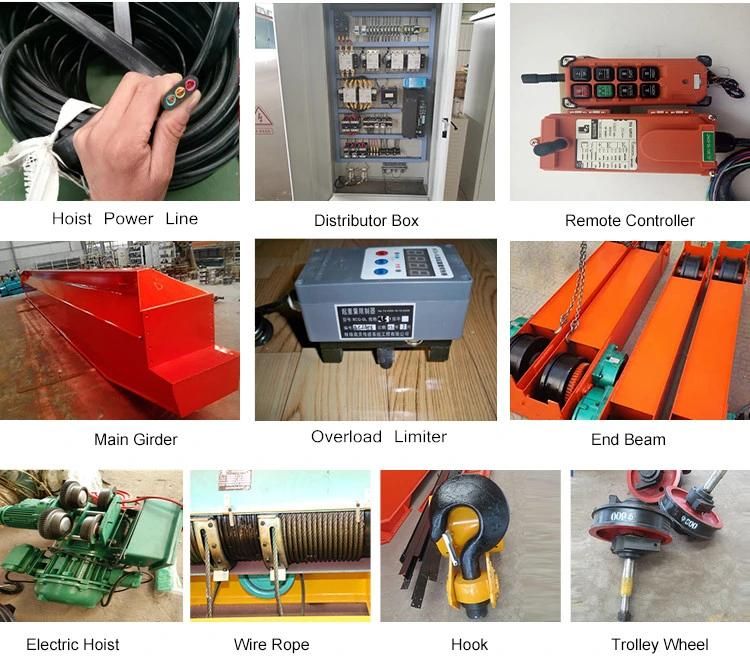

Safe Devices:
1.Overload Limit Switch

2. Rubber Buffers 3.Electric Protective Devices

4.Emergency Stop System

5.Voltage Lower Protection Function

6. Current Overload Protection System

7. Rail Anchoring 8.Lifting Height Limit Device


FAQ ABOUT MINGD CRANES:

1.Can the cranes be customized?
Yes,every customer's working condition is different, all of our products can be customized depend on customers' requirements.
Please give us the information as clear as you can, so we can give our best design to suit for your demands.

2.How many operation methods for my selections?
We provide pendent controller with push button control type, remote control type or cabin control type.Please tell us what kind
of operation way you need.

3.I have low headroom in my workshop, is it possible to install a crane in it?
We have special products for low headroom workshop, our engineer can give the best design according to your dimensions.

4.Do you supply lift tools?
Yes, we can provide any kind of lifting tools such as hook, electromagnetic, grab bucket etc...

5.In order to offer the most suitable design solution for you, it will be great helpful if you can offer us the following information to us:
1. Lifting capacity.
2. Span length.(rail center to rail center)
3. Lifting height.(hook center to ground)
4. Have you installed the rails? Do you need us to supply the rails? How long is it?
5. Power supply: Voltage.
6. Working condition: what kind of material to lift? temperature?
7. It would be much better if it is possible for you to offer the drawing photo of your workshop.
