• Model NO.：LX
• Traveling Speed：20m,Min
• Traveling Motor Power：2*0.2kw
• Traveling Rotational Speed：1380r,Min
• Lifting Motor Speed：7,0.7m,Min
• Lifting Height：6, 9, 12, 18
• Working Class：A3
• Power Supply：380V,50Hz,3pH
• Wheel Diameter：130mm
• Power Source：Electric
• Sling Type：Wire Rope
• Application：Construction Usage, Workshop Usage, Container Usage, Mineral Area Usage

Basic Info.

Model NO. LX Traveling Speed 20m/Min Traveling Motor Power 2*0.2kw Traveling Rotational Speed 1380r/Min Lifting Motor Speed 7/0.7m/Min Lifting Height 6, 9, 12, 18 Working Class A3 Power Supply 380V/50Hz/3pH Wheel Diameter 130mm Power Source Electric Sling Type Wire Rope Application Construction Usage, Workshop Usage, Container Usage, Mineral Area Usage

Product Description

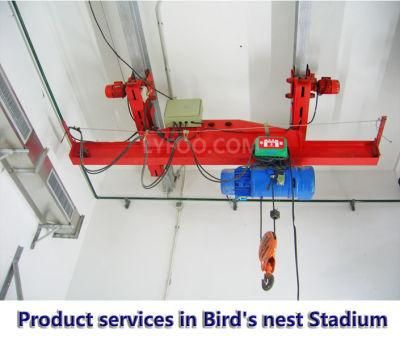

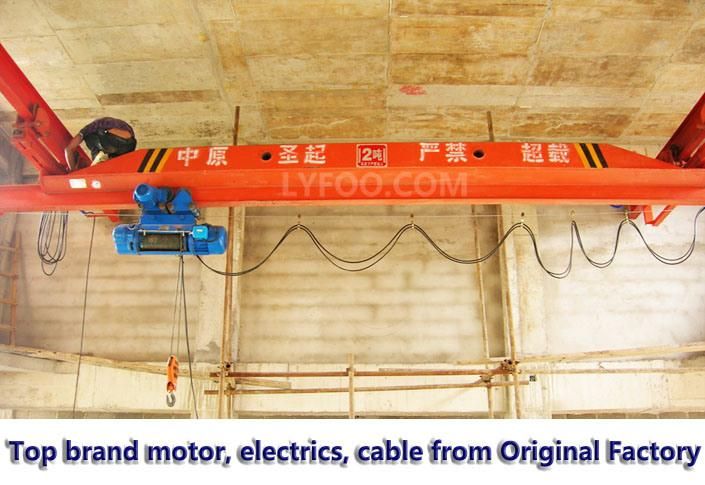

Photos

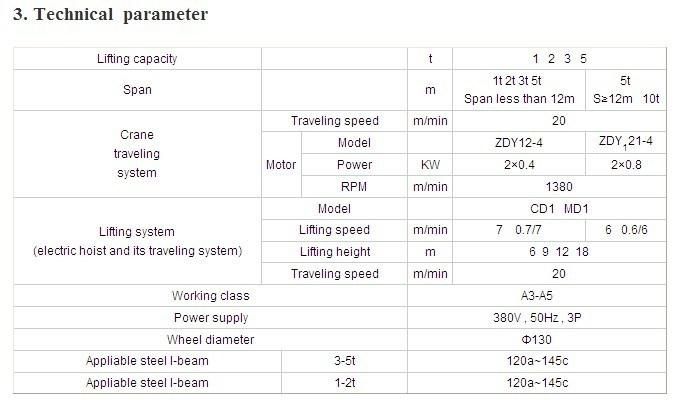

Specifications

LX single girder suspension overhead crane
1.capacity:0.5-10t
2.span:3-16m
3.lifting height:6-30m
4.certificate:ISO 9001

1. Introduction

The LX type single girder suspension overhead crane is a light duty crane. This type of crane is mainly used in the location where is no possible install columns to support the overhead crane. The end trucks of the underslung bridge crane ride on the bottom flange of the I-beam. Typically, an underhung I-beam is suspended from the roof of the building and is available only on lighter capacities, not more then 10 tons.capacity of 0,5-10 tons,span 3-16m,lifting height  6-30m,

 It is good for working environment within working temperature between -25C- +40C. Prohibited to use in locations, where are stocks of flammable, explosive and corrosive materials.

 LXB series of explosion-proof electric single girder overhead crane with flameproof, explosion proof electrical control boxes and other equipment supporting the use of a light rail running small crane.
