• Model NO.：QDY
• Maximum Lifting Weight：100ton or on Request
• Main Girder Form：Double Girder
• Type：Ordinary
• Steel Material：Q235B,Q345b
• Production Time：10-15 Days
• Span Size：5-40m or Customized
• Color：Customized Color
• Girder Type：Box Type
• Working Class：A6 A7 A8 or on Request
• Lifting Spped：8m,5m Per Minute
• Cross Speed：0~20m ,Min
• Lift Capacity：on Customer′s Request
• Application：Steel Mills, Warehouse,Hydropower Station
• Transport Package：by Container or Bulk Ship
• Specification：Material: Q235B,Q345B
• Trademark：Mingdao
• Origin：China
• HS Code：8426119000
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. QDY Maximum Lifting Weight 100ton or on Request Main Girder Form Double Girder Type Ordinary Steel Material Q235B/Q345b Production Time 10-15 Days Span Size 5-40m or Customized Color Customized Color Girder Type Box Type Working Class A6 A7 A8 or on Request Lifting Spped 8m/5m Per Minute Cross Speed 0~20m /Min Lift Capacity on Customer′s Request Application Steel Mills, Warehouse,Hydropower Station Transport Package by Container or Bulk Ship Specification Material: Q235B/Q345B Trademark Mingdao Origin China HS Code 8426119000 Production Capacity 1000 Sets/Year

Product Description

Brief Introduction:

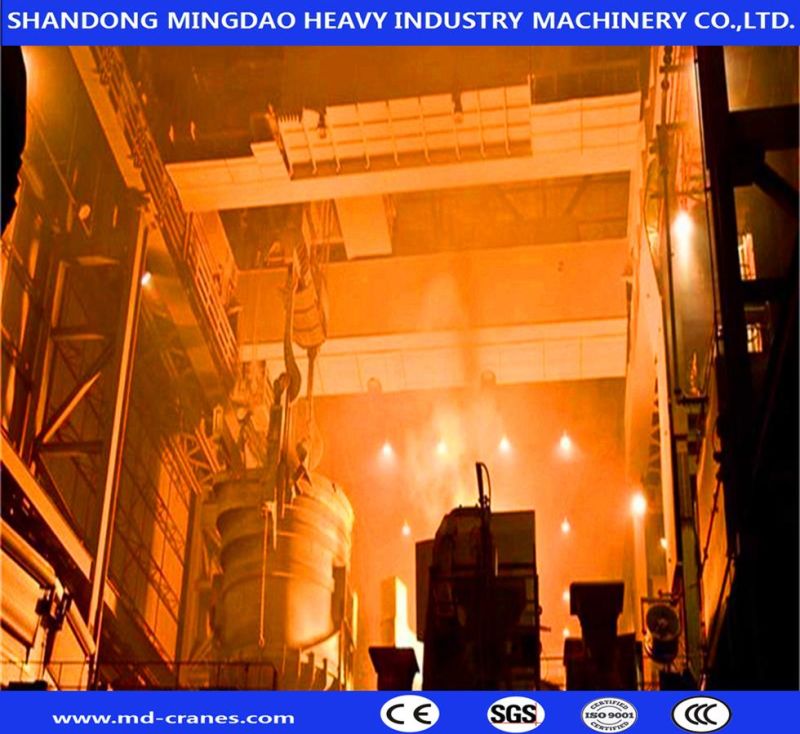

This QDY double girder Metallurgy Bridge Crane is mainly used in the place where the molten metal is lifted. The working duty of the complete machine is A7, and thermal protective device is added on the bottom of the main girder.

The assembling and test of the crane conform to the document No.ZJBT[2007]375 which was issued by General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China.

It can be also used in the place where molten nonmetal material and red-hot solid metal lifting work.
Environmental conditions:

Power supply: 380V/50HZ/3PHASE or on request.
The temperature of working environment is -10~+60°C;
The relative humidity is less than 50%
Advantages of a Double Girder Design
1.Greater hook height - how far above the floor the hoist will lift (typically 18-36" more than single girder)

2.No limits to maximum span or capacity

3.Ideal for production and transportation of heavy equipment

4.Ideal for frequent lifting of heavy loads

5.Added features like walkways and maintenance platforms, cabs, magnetic reels, and lights can be added and supported by a double girder design
Can be used in indoor and outdoor applications, including mining, iron and steel, railyards, and ports

Safe Devices:
1.Overload Limit Switch

2. Rubber Buffers 3.Electric Protective Devices

4.Emergency Stop System

5.Voltage Lower Protection Function

6. Current Overload Protection System

7. Rail Anchoring 8.Lifting Height Limit Device


Factory workshop:

Shandong Mingdao Heavy Industry Machinery Co., Ltd.Is located in Taian City,Shandong Province, China. We are mainly engaged in the design, manufacture,installation and maintenance of single girder cranes(LD Models), Double Girder Cranes (LH,QD etc),gantry cranes(MH,MDG..),Jib cranes(BZ,QZ,MZ etc), variable frequency cranes, Explosion-proof series cranes(LB,QB etc), Cranes with grab bucket,Low headroom monorail Hoist, Electric Winches, scrapers and CD1 MD1 HC Electric Hoist, Hand Chain Hoist etc...

In the past 10 years, we are aiming at China domestic market and become a leading manufacturer in China. Also, we have exported our products to many countries such as Vietnam, Philippines, Sri Lanka, Bangladesh, France, Dubai, Kazakhstan, Russia, Tanzania,Peru , New Zealand ,etc countries .We got 99% good feedback from the overseas customers.
