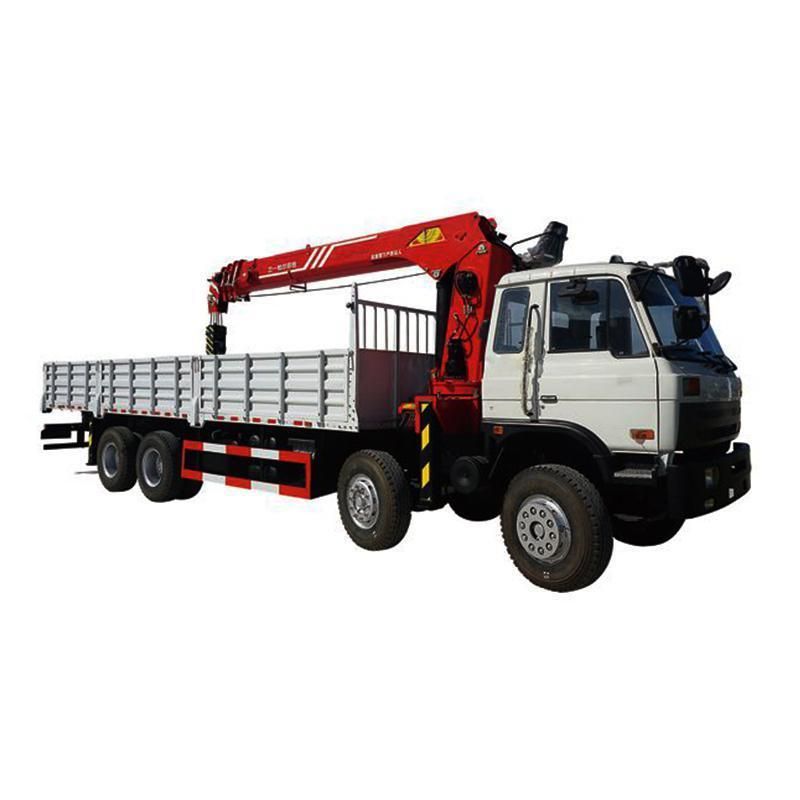

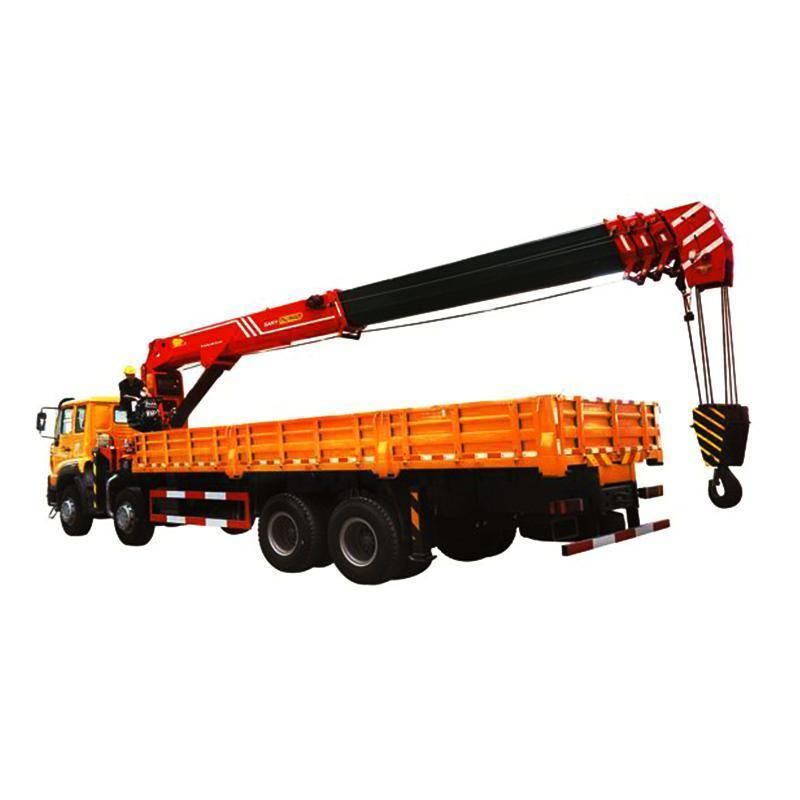

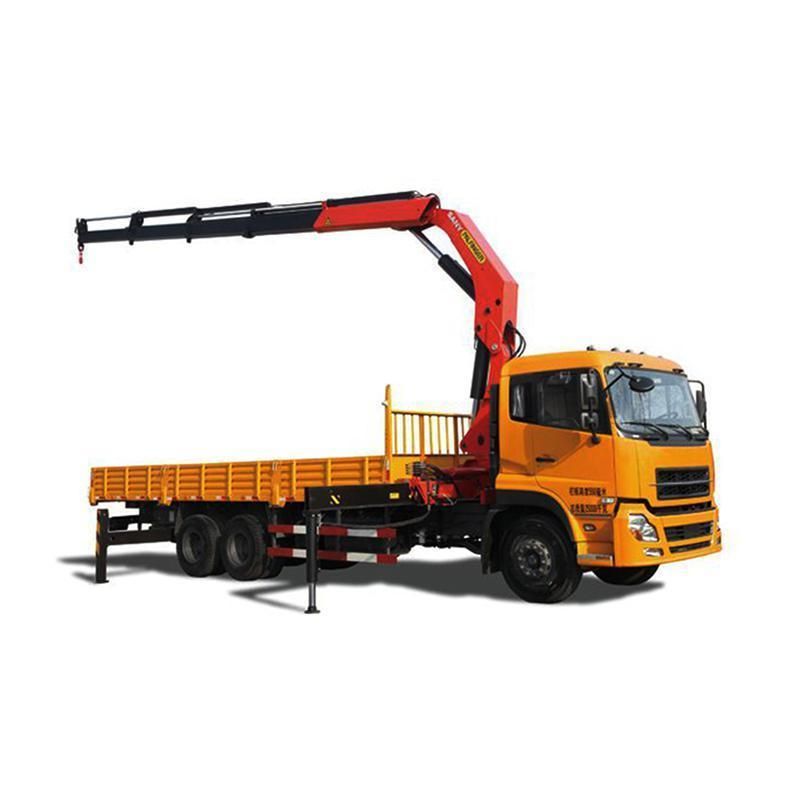

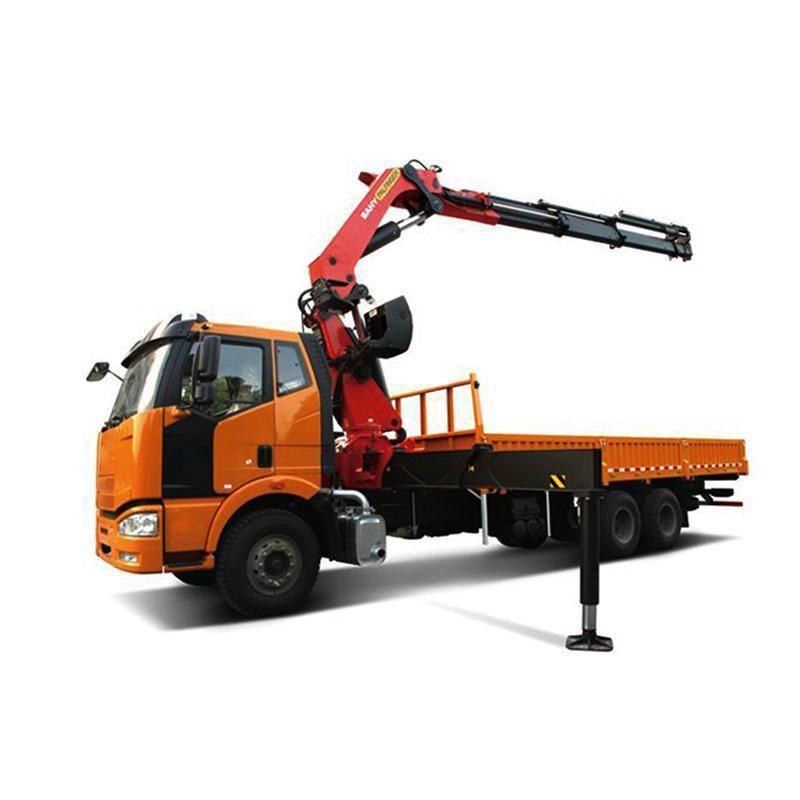

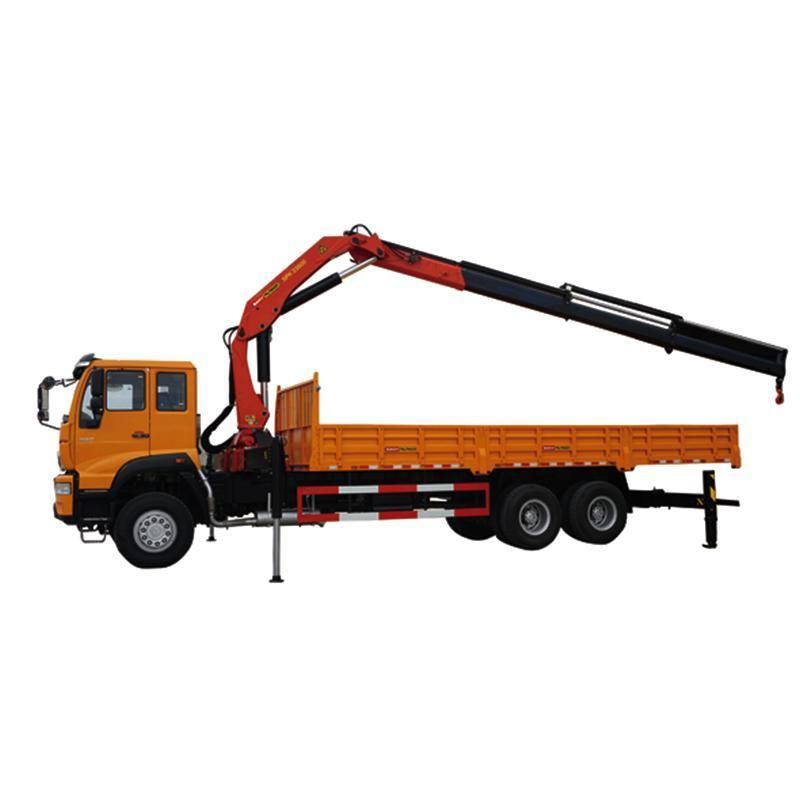

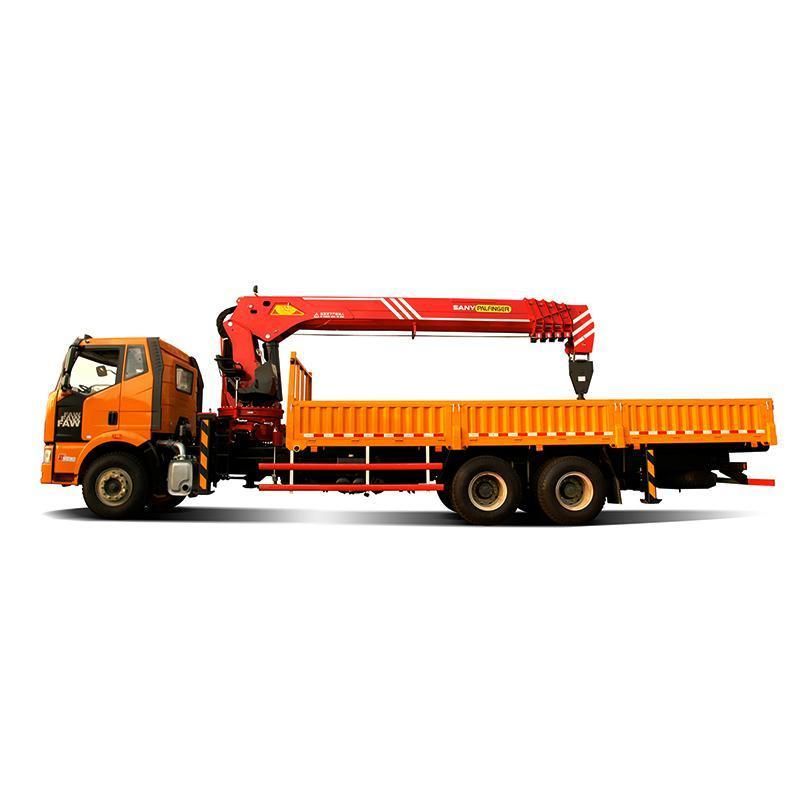

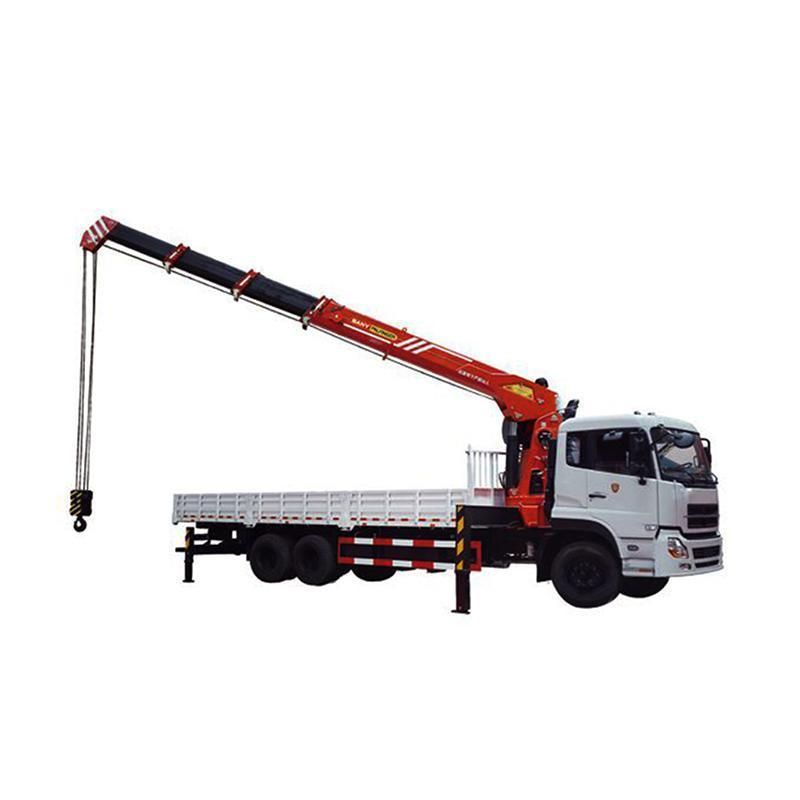

China Brand 14 Ton Truck Crane New Truck Mounted Crane Price Sps35000
Sinomada Heavy Industry (Changsha) Co., Ltd.- Certification：GS, RoHS, CE, ISO9001
- Condition：New
- Maximum Lifting Height：15-20m
- Maximum Lifting Weight：14-16t
- Shaft Number：2
- Crane Jib：Two-Arm
Base Info
- Type：Straight Arm
- Transport Package：Nude Package
- Origin：China
- HS Code：84269100
- Production Capacity：5000pices,Year
Description
Capacity
Max. lifting capacity
14t
Dimensions
Overall length
11984mm
Overall width
2496mm
Overall height
4021mm
Axles
4
Axle distance-1,2
1800mm
Axle distance-2,3
4575mm
Axle distance-3,4
1400mm
Weight
Overall weight
45000kg
Front axle load
15000kg
Rear axle load
30000kg
Engine
Model
WD615.87
Rated power
213Kw
Rated torque
1160Nm at 1100~1600 rpm
Emission standard
Euro II
Traveling
Max. traveling speed
102km/h
Approach angle
16°
Departure angle
14°
Max. gradeability
33%
Main Performance
Rated lifting moment
35mt
Rated lifting capacity
14000kg(2.5m)
Max.outreach
18.1m
Max.lines of hook
6
Boom raising angle
0~75°
Max.lifting height(the measurement from the ground after the outriggers fully extended)
20.5m
Length of the basic boom
5.6m
Length of fully extended boom
18.5m
Boom sections
5
Outrigger span (fully extended)
6.0m
Recommended volum for the system
70L/min
Operating pressure
29/32Mpa
Oil tank capacity
200L
Crane moment (dynamic)
577.2kNm (58.8mt)
Torsional moment (dynamic)
36.8kNm (3.8mt)
