7*24 After-Sale 16t Mobile Crane for Sale
JINING OKING TEC CO., LTD.- Certification：GS, RoHS, CE, ISO9001
- Condition：New
- Maximum Lifting Height：30-40m
- Maximum Lifting Weight：14-16t
- Shaft Number：3
- Crane Jib：Five-Arm
Base Info
- Model NO.：OKT-16T
- Type：Folding
- Product Name：16 Tons Truck Crane
- Hydraulic System：Single or Double Pump Hydraulic System
- Motor：18.5kw
- Wheelbase：4400mm
- Big Arm：U Type 30-36m
- The Highest Speed：88km , H
- Sigle Arm Length：8m
- Boom Number：5pieces
- Transport Package：Wooden Package
- Specification：1600kg
- Trademark：OUKE
- Origin：Jining
- HS Code：8425190000
- Production Capacity：200
Description
Basic Info.
Model NO. OKT-16T Type Folding Product Name 16 Tons Truck Crane Hydraulic System Single or Double Pump Hydraulic System Motor 18.5kw Wheelbase 4400mm Big Arm U Type 30-36m The Highest Speed 88km / H Sigle Arm Length 8m Boom Number 5pieces Transport Package Wooden Package Specification 1600kg Trademark OUKE Origin Jining HS Code 8425190000 Production Capacity 200Product Description

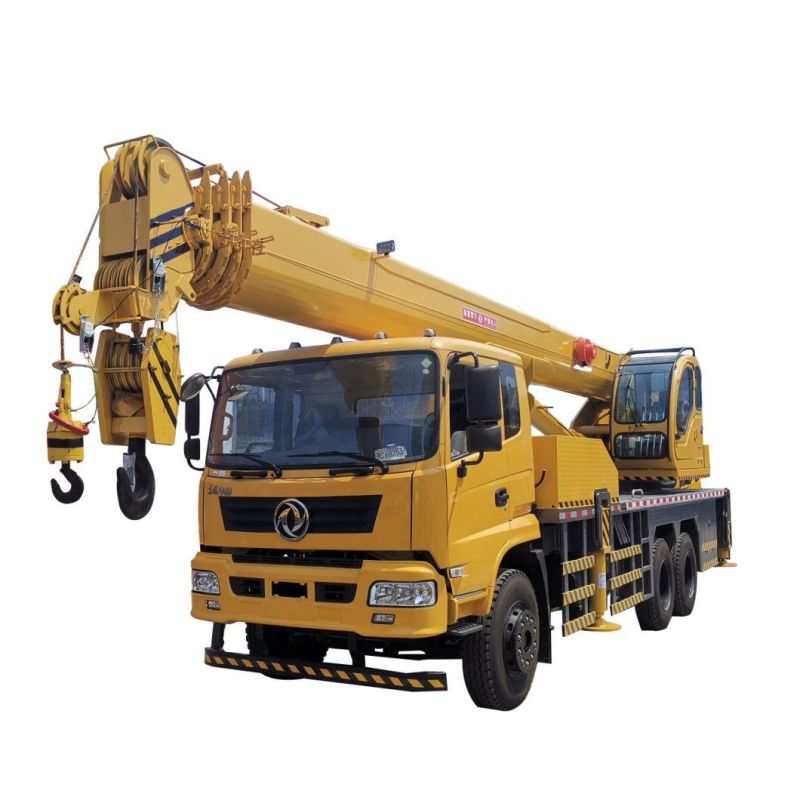

7*24 After-Sale 16t Mobile Crane for Sale
The optimizing layout of the machine makes the stress of the main bearing carriers more reasonable, and the lifting performance is higher than the products with the same tonnage.
• Apply the mature jib technique which integrates plug-in boom head, embedded boom block, and special telescoping mechanism, which makes the jib more stable and reliable.
• Optimize the stress design. Adopt the box-type outriggers which have larger span, stronger rigidity, and better stability.
Product parameters
| No | Items |
| Chassis | Futian Ruiwo car crane special chassis. |
| Engine | YC4S140-50 |
| tires | 900R20 |
| brake | air brake |
| Direction | Hydraulic boost |
| wheelbase | 4400mm |
| the highest speed | 85Km / h |
| single arm length | 8m |
| boom number | 5 |
| boom structure | inner rope |
| thick section boom size | height 58 cm, width: 48 cm |
| Number of lifting legs | 5 (two legs on the side, and auxiliary hind legs) |
| side leg structure | double leg, unilateral leg span 2 meters (from the body) |
| Outrigger span | spans 6.25 meters; longitudinal span: 5 meters |
| hydraulic system | three pump confluence system |
| Fan heat system | air-cooled fan heat system |
| motor | 18.5kw (optional) |
| double winch | double inclined shaft plunger motor hydraulic winch |
| large structure | I-shaped steel box large frame |
| Appearance size | length 11250mm; width 2400mm; height 3300mm |
| the total quality | 17500kg |
