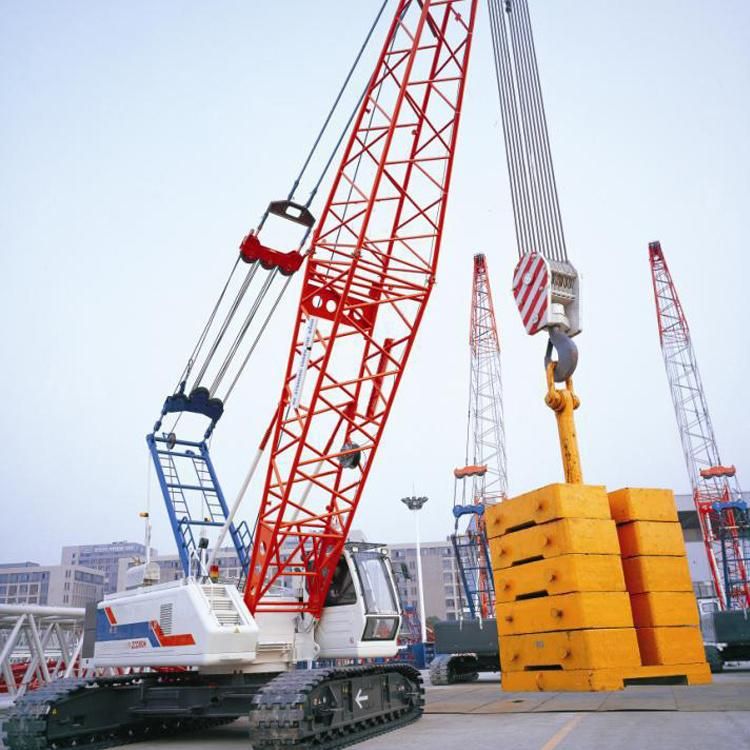

80 Ton Mini Lattice Crawler Crane Zcc800h
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：Online Support
- Max. Lifting Height：Online Support
- Rated Loading Capacity：80t
- Certification：CE
- Condition：New
- Warranty：1year
Base Info
- Model NO.：ZCC800H
- Transport Package：1*40fr+10*40hq
- Specification：15530*4000*2800mm
- Origin：China
- Production Capacity：50000PCS,Year
Description
Performance parameter Working weight of the whole machine (kg)70800Maximum rated total lifting capacity (t)80000Minimum rated amplitude (m)4.3Boom length main boom + jib (m)49+18Rotation speed (rpm)1~2Gradeability(%)30Ground pressure (Kpa)0.083Walking speed (km/h)1~1.68engine Rated power KW (HP)209Rated speed (rpm)2200Lifting mechanism Maximum speed of main hoist single rope without load (m/min)120Maximum speed of auxiliary winch single rope no-load (m/min)120Total length (mm)13,500Overall width (mm)3400Total height (mm)3200Track gauge (mm)4220Track width (mm)800Track ground length (mm)5440
