• Model NO.：W6013-6,8
• Type：Top-Slewing Crane
• Hoisting Speed：100m,Min
• Warranty：1 Year
• Applicable Industries：Construction Works
• Unique Selling Point：Energy Efficient and Low Operating
• Core Components：PLC, Motor, Gear
• Rated Loading Capacity(Kg)：6t,8t
• Dimension(L*W*H)：Customized
• Max Hoisting Capacity at Jib Tip：1.3t
• After-Sales Service Provided：Online Support
• Max Lifting Moment：128TM
• Trademark：ZOOMLION
• Origin：China

Basic Info.

Model NO. W6013-6/8 Type Top-Slewing Crane Hoisting Speed 100m/Min Warranty 1 Year Applicable Industries Construction Works Unique Selling Point Energy Efficient and Low Operating Core Components PLC, Motor, Gear Rated Loading Capacity(Kg) 6t/8t Dimension(L*W*H) Customized Max Hoisting Capacity at Jib Tip 1.3t After-Sales Service Provided Online Support Max Lifting Moment 128TM Trademark ZOOMLION Origin China

Product Description

ZOOMLION Top-less Tower Crane W6013-6/8 with Best Lifting Performance and Diversified Configuration

Feature
Superior performance
1.  The free-standing height of the 1.8m bolt integral mast can reach 51m, and the 60m long jib tip can lift
1.3t, which is highly  adaptable to civil construction conditions.
2.  The maximum lifting capacity is 8t, and the maximum lifting speed is 100m/min.
3.  Flexible tower configuration, 1.6m bolted integral masts, 1.8m bolted integral masts, and 1.6m fishplate
pinned masts are optional.
Safe and reliable
1.  Lifting weight triple protection, torque double protection, prevent overload.
2.  Triple protection for lifting to prevent collision, double protection to prevent collision.
3.  Intelligent detection and protection of electronic control system to prevent slipping hook.
4.  Lifting trim control and lifting motor control to prevent jacking accidents.
5.  The tower body is equipped with an inclined ladder, and the large platform is anti-falling.
6.  Jib-pin connection, strong resistance to sudden unloading and accidental collision.
Paint upgrade
1.  The structural parts are made of water-based paint, one wash and three baking process.
2.  Platforms, ladders, and railings are fully immersed in zinc, and the walking platform aluminum alloy anti-
skid design, anti-corrosion and rust prevention during the life cycle.
3.  The driver's cab is formed by one-time punching, automotive-grade spot welding process, electrophoresis
process.
4.  The inner cavity of the main chord of the tenon standard section is electrophoresed, and the paint adheres
evenly and firmly without blind spots.
Good handling
1. Brand-new frequency conversion slewing system, instant response to start and stop, no jitter in the whole
field, no swing back when stopping.
2. The millimeter-level ant speed is in place, the minimum is 5mm/s, and the jog responds instantly.
Excellent humanity
1.  Integrated assembly in the factory, professional loading plan, effectively reducing packaging units and
transportation vehicles.
2.  Fast assembly technology, the main structure is only 4 cranes, the fastest 4 hours from unloading to
installation and commissioning.
3.  Identify and add multiple core fault diagnosis, increase the text description of fault alarms, and improve
maintenance efficiency.
4.  The electronic lifting weight limiter assists pre-calibration before leaving the factory to improve
construction efficiency.
5.  The structural parts have strong versatility, and the body parts (including balance weight) can be used in
common with W6013/W6017.
6.  Flexible wall attached to a wide range of use, strong applicability and convenient installation.
Parameters

Model	W6013-6/8
Max lifting weight (t)	6/8
Max lifting moment (t.m)	128
Max working range (m)	60
Max hoisting capacity at jib tip (t)	1.3
Free-standing height (m)	40.5
Max lifting speed (m/min)	100
Slewing speed (r/min)	0~0.6
Trolleying speed (r/min)	0~55

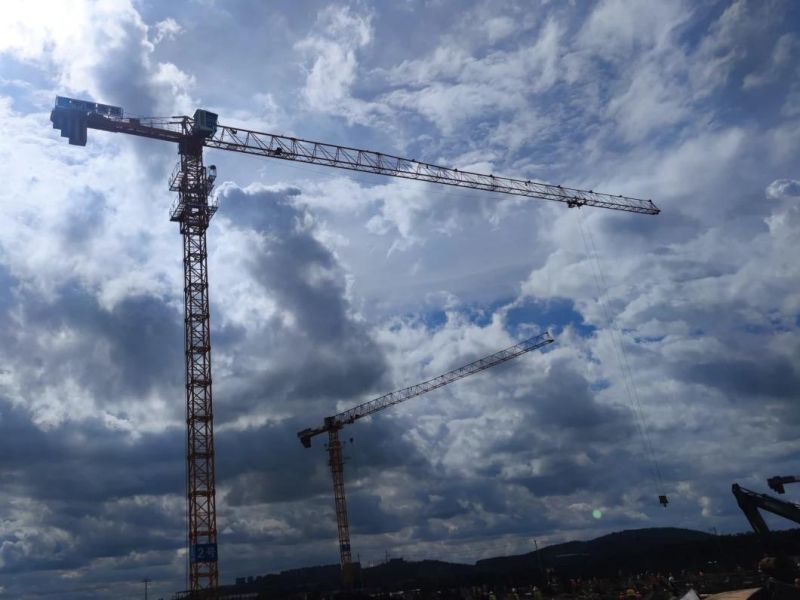

Product Show

Our Company

Founded in 1992, ZOOMLION Heavy Industry Science & Technology Co., Ltd. is mainly engaged in

developing and anufacturing major high-tech equipment in the areas of engineering industry and agri-

cultural industry.

With more than 20 years of innovation and development, the company is now a global enterprise posse-

ssing 10 major categories and 55 product lines, as well as nearly 460 leading products. ZOOMLION

China's first construction machinery company to be listed on both Shenzhen and Hong Kong stock ex-

changes, with registered  capital amounting to RMB 7.664 billion. At present, the company is actively

promoting strategic transformation, aiming to build a high-end equipment.

In 1956, the predecessor of Zoomlion, Changsha Construction Machinery Research Institute, developed
the  first tower crane in China with independent intellectual property rights-QTZ160. With more than 60

years of  technology inheritance and innovation, Zoomlion has now developed into a world-leading tower
crane manufacturer and also the secretariat unit of the International Organization for Standardization/Crane

Technical  Committee (ISO/TC96).

The products of Zoomlion Construction Hoisting Machinery Company cover four series: hammer-head
tower  cranes, flat-top tower cranes, luffing tower cranes and construction hoists. Many star products have
been born  as well, such as the world's largest tonnage top-slewing jack-up Tower crane D5200, the world's

longest-boom   tower crane D1250, which set a world record for Guinness, the world's largest, tonnage

flat-top tower crane  T2850, and the world's largest tonnage internal climbing boom tower crane LH3350,

which rolled off the assembly line in 2019.

About Us

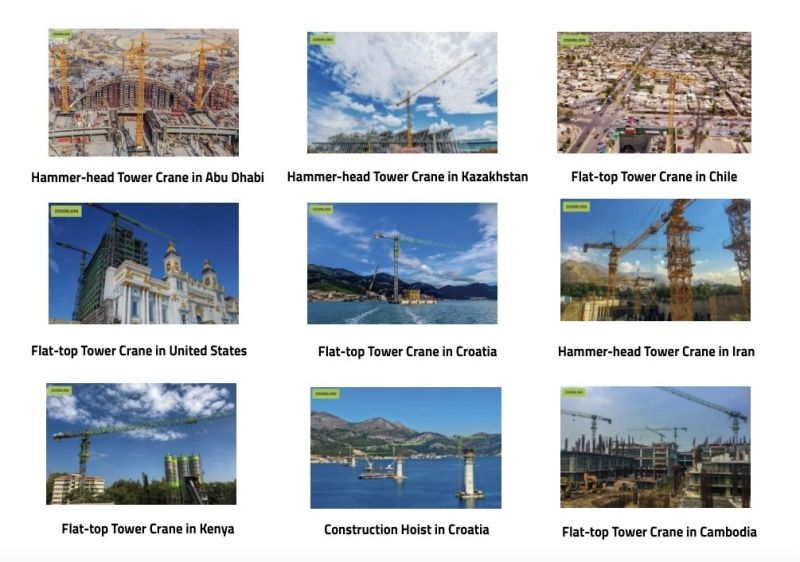

Construction Cases
